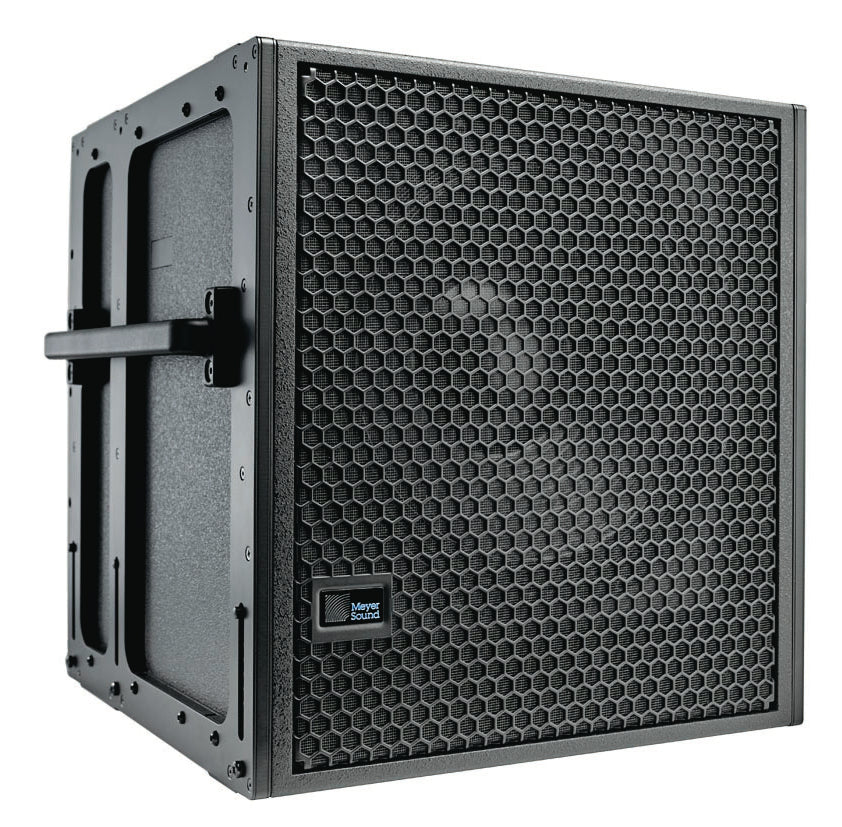

Meyer Sound 750-LFC 3100W 15-inch Powered Subwoofer

Meyer Sound 750-LFC 3100W 15-inch Powered Subwoofer

SoundPro Item: 85712 | Part Number: 09.271.001.10

$7,530.00
$7,530.00 $7,530.00
Your Price Sold out
MSRP: $7,530.00 | MAP: $7,530.00

In stock and ready to ship

  • Compact cabinet with small footprint and extraordinary power-to-size ratio
  • High peak power output with extremely low distortion
  • 360° (single unit); varies with number of units and configuration
  • Exceptional linearity, transient reproduction, and low-frequency clarity
  • Self-powered design for simplified setup and increased reliability
  • Stackable and flyable in regular and cardioid arrays with splay options
  • Integral pole-mount receptacle to facilitate pairing with LINA or ULTRA Series loudspeakers
Log in or register for YOUR best price

Meyer Sound’s 750-LFC compact low-frequency control element reproduces low frequencies at high, continuous output levels with extremely low distortion. The 750-LFC offers the same sonic linearity as Meyer Sound’s 900-LFC low-frequency control element in a smaller, lighter cabinet, making it ideal for building scalable systems to suit portable applications or fixed installations of any size.

View full details

Specifications

ACOUSTICAL
Operating Frequency Range2
35 Hz – 125 Hz
Frequency Response3
37 Hz – 110 Hz ±4 dB
Phase Response
43 Hz – 110 Hz ±30°
Linear Peak SPL4
130.5 dB with crest factor >9 dB (M-noise), 130.5 dB (pink noise), 132 dB (B-noise)
TRANSDUCERS
Low Frequency
One 15-inch, dual-coil, long-excursion cone driver; 2 Ω nominal impedance
AUDIO INPUT
Type
Differential, electronically balanced
Maximum Common Mode Range
±15 V DC, clamped to earth for voltage transient protection
Connectors
XLR 3-pin female with male loop. Optional 5-pin connectors to accommodate both balanced audio and RMS signals
Input Impedance
10 kΩ differential between pins 2 and 3
Wiring
Pin 1: Chassis/earth through 1 kΩ, 1000 pF, 15 V clamped network to provide virtual ground lift at audio frequencies
Pin 2: Signal (+) Pin 3: Signal (–) Pin 4: RMS
Pin 5: RMS
Case: Earth ground and chassis
Nominal Input Sensitivity
6.0 dBV (2.0 V rms) continuous is typically the onset of limiting for noise and music
Input Level
Audio source must be capable of producing +20 dBV (10 V rms) into
600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker
AMPLIFIER
Type
2-channel, open-loop, class D
Total Output Power6
3100 W peak
THD, IM, TIM
< 0.02%
Cooling
Convection
AC POWER
Connectors
powerCON 20 input with loop output
PHYSICAL
Dimensions without Rigging
W: 21.80 in (554 mm) x H: 20.30 in (515 mm) x D: 20.88 in (530 mm)
Dimensions with Rigging
W: 21.55 in (547 mm) x H: 20.43 in (519 mm) x D: 20.88 in (530 mm)
Weight without Rigging
89 lbs (40.3 kg)
Weight with Rigging
105 lbs (47.6 kg)
