• Meyer Sound ULTRA-X40 Compact Point Source Loudspeaker
1 1

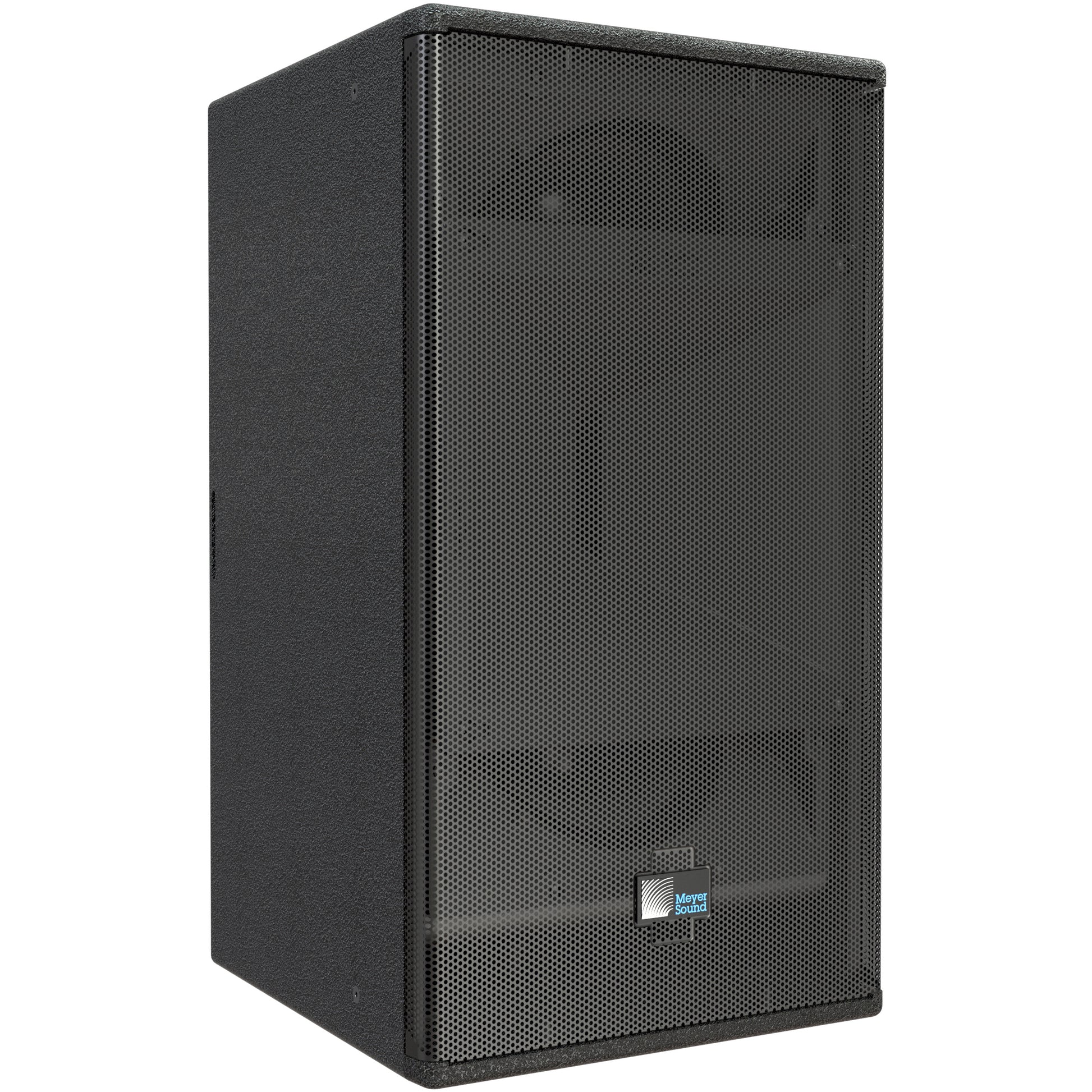

Meyer Sound ULTRA-X40 Compact Point Source Loudspeaker

Meyer Sound ULTRA-X40 Compact Point Source Loudspeaker

SoundPro Item: 43996 | Part Number: 09.287.001.04

$7,590.00
$7,590.00 $7,590.00
Your Price Sold out
MSRP: $7,590.00 | MAP: $7,590.00

In stock and ready to ship

  • Exceptional fidelity and surprising power capability delivered in a compact, light enclosure
  • Extraordinarily flat amplitude and phase response ensures tonal accuracy and precise imaging
  • Wide (ULTRA-X40) pattern (Rotatable horn: 110° x 50°)
  • Rotatable horn provides installation flexibility
  • Integral stand mount and QuickFly mounting options facilitate rigging
  • Two-conductor twisted-pair network that reports all operating parameters of amplifiers to system operator’s host computer
  • Differential, electronically balanced
Log in or register for YOUR best price

Meyer Sound’s ULTRA-X40 design continue the tradition of the highly successful UPA loudspeakers—so versatile they have been a universal standard in almost every application for over 35 years. From touring performances to theme parks, worship venues to theater shows, and lecture halls to large-scale concerts, Meyer Sound technology has delivered exceptional fidelity with high power, low distortion, and uniformly predictable behavior.

View full details

Specifications

ACOUSTICAL
Operating Frequency Range
55 Hz – 19.5 kHz
Frequency Response
56 Hz – 19 kHz ± 4 dB
Phase Response
90 Hz – 19.5 kHz ±45°
Maximum SPL
138 dB
Linear Peak SPL
132.5 dB with 18 dB crest factor (M-noise), 130 dB (Pink Noise), 131 dB (B-noise)
TRANSDUCERS
Low Frequency
Two 8-inch cone drivers; 4 Ω nominal impedance
High Frequency
One 3-inch diaphragm compression driver connected to a rotatable horn; 8 Ω nominal impedance
AUDIO INPUTS
Maximum Common Mode Range
±15 V DC, clamped to earth for voltage transient protection
Connectors
XLR 3-pin female input with male loop output; optional XLR 5-pin connector to accommodate both balanced audio and RMS signals.
Input Impedance
10 kΩ differential between pins 2 and 3
Wiring
Pin 1: Chassis/earth through 1 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
Pin 2: Signal + Pin 3: Signal –
Pin 4: RMS (polarity insensitive) Pin 5: RMS (polarity insensitive)
Case: Earth ground and chassis
Nominal Input Sensitivity
0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music
Input Level
Audio source must be capable of producing of +20 dBV (10 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker
AMPLIFIER(S)
Type
three-channel, Class-D
Total Output Power7
1950 W peak
THD, IM, TIM
<0.02%
Cooling
Convection
AC POWER
Connector(s)
powerCON 20 input with loop output
PHYSICAL
Dimensions
W: 12.51 in (318 mm) x H: 22.31 in (567 mm) x D: 14 in (356 mm); D with handles: 15.38 in (391 mm)
