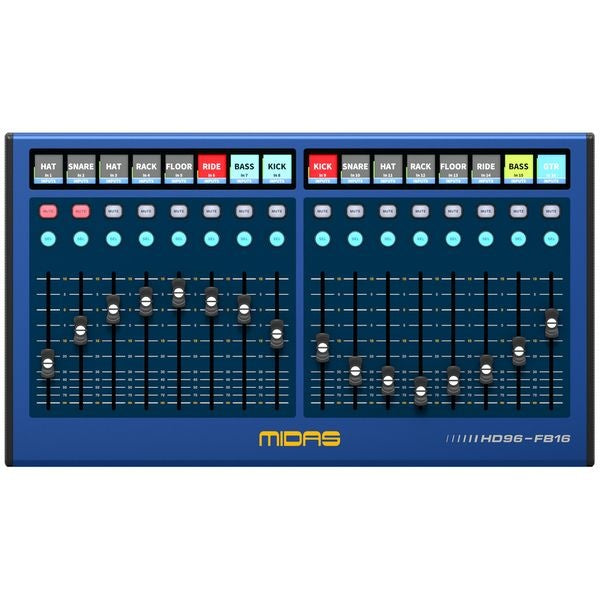

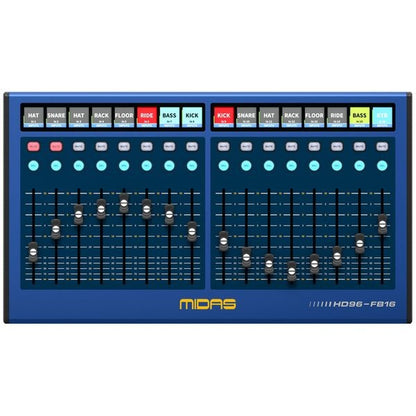

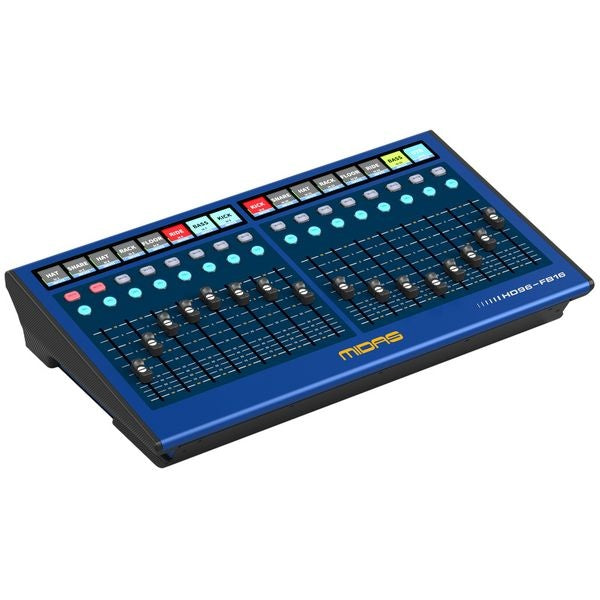

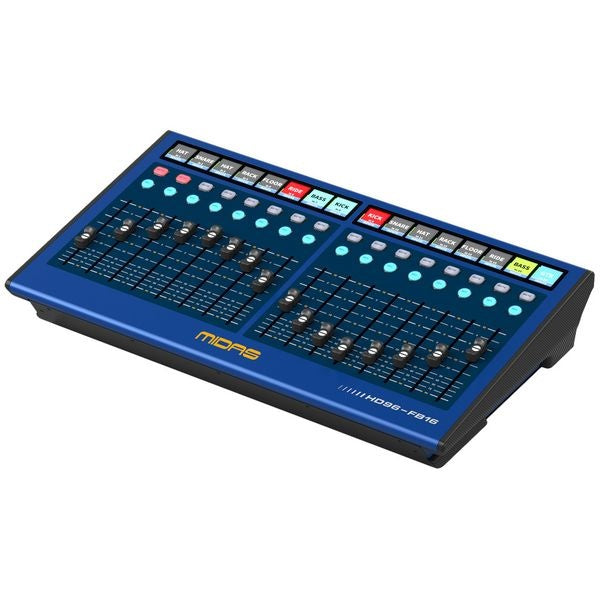

Midas HD96-FB16 Portable 16-Channel Fader Bay For HD Series Consoles

Midas HD96-FB16 Portable 16-Channel Fader Bay For HD Series Consoles

SoundPro Item: 207141 | Part Number: HD96-FB16

$2,349.00
$2,349.00 $2,349.00
Your Price Sold out
MSRP: $2,349.00 | MAP: $2,349.00

Usually ships in 5-7 business days

  • Motorized Faders With Mute And Select Buttons Deliver Tactile Per-Channel Mix Control
  • High-Resolution Color LCD Per Strip Enables Fast Channel Identification In Complex Scenes
  • Single USB 2.0 Connection Simplifies Integration With HD Series Consoles
  • Internal Switched-Mode Power Supply Supports International Mains Voltages Without External Adapters
  • Compact Chassis Suits Fly Rigs, Modular Layouts, And Space-Constrained Installations
  • LED-Backlit Mute And Select Buttons Provide Clear Visual Confirmation In Low-Light Environments
Log in or register for YOUR best price

The Midas HD96-FB16 is purpose-built for live sound engineers who need scalable, tactile control without committing to a full-size console footprint. Whether you're running a compact fly rig for touring or building a distributed control layout for a fixed installation, the FB16 slots directly into an HD Series workflow via a single USB connection, delivering hands-on fader access to 16 channels instantly. It is the natural pairing for the HD96-AIR, extending that platform into a fully realized mixing surface without the overhead of redundant hardware.

Each of the 16 control strips is equipped with a motorized 100 mm fader, dedicated Mute and Select buttons with LED backlighting, and a high-resolution color LCD screen for immediate channel identification and navigating complex mix scenes. This density of control in a compact chassis means engineers can stay in the mix rather than in menus, which matters in high-pressure live production environments where response time is everything.

Constructed for consistent performance across touring schedules and installed environments alike, the HD96-FB16 houses an internal switched-mode power supply rated across international mains voltages, eliminating external power bricks and simplifying road cases and rack builds. For integrators and production companies evaluating fader bay solutions in this class, the combination of Midas fader quality, per-channel display resolution, and native HD Series compatibility makes this a technically justified choice over generic third-party control surfaces.

View full details

Specifications

Dimensions
Height
3.84"
Width
18.75"
Depth
10.6"
Weight
Product Weight
9.4 lbs
Electrical
Voltage
100-240 VAC, 50/60 Hz
Power Consumption
75 W
Power Supply Type
Internal Switch Mode
Controls
Faders
16 motorized faders
Mute Buttons
16, LED backlit
Select Buttons
16, LED backlit
Display
Channel Displays
16
Resolution
240 x 240 pixels, color
Connectivity
USB
USB 2.0, Type B
Environmental
Operating Temperature
5° C to 45° C (41° F to 113° F)
