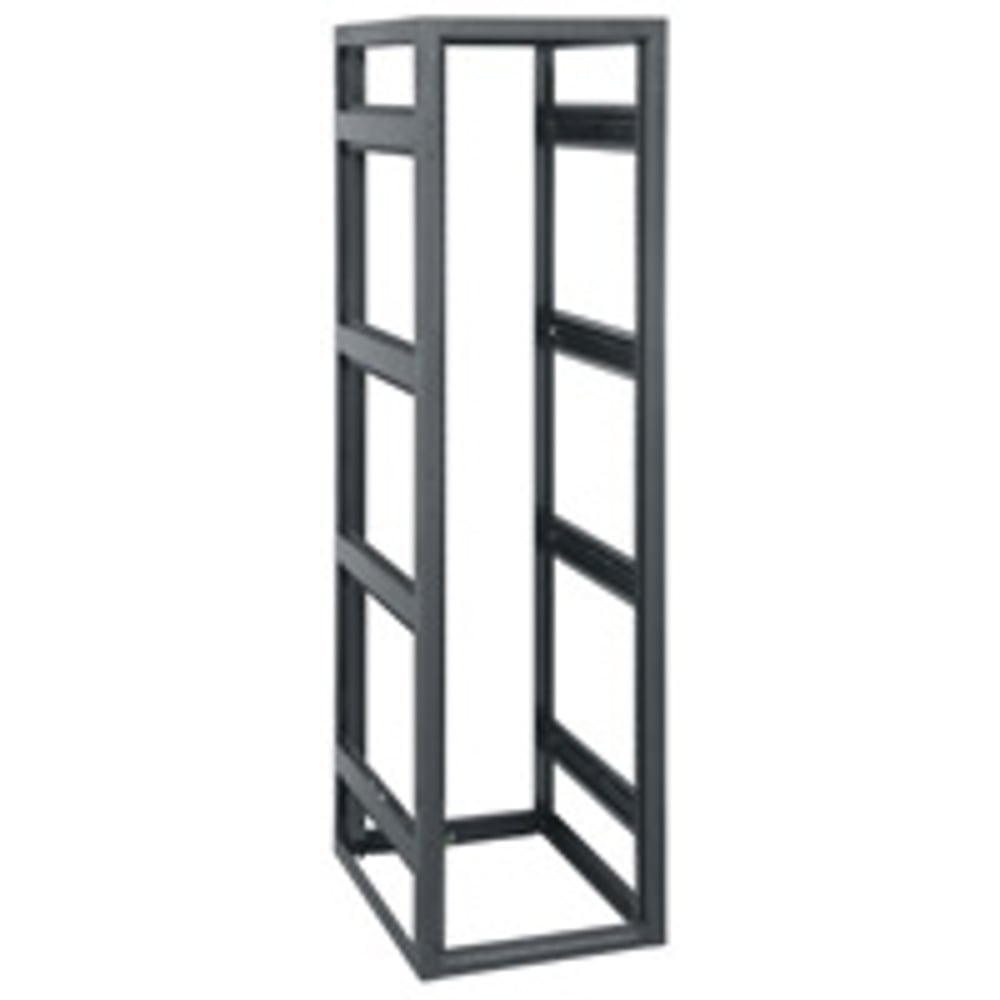

Middle Atlantic BGR-4538LRD 45Sp/38D Multibay Bgr Rack, Lrd
Middle Atlantic BGR-4538LRD 45Sp/38D Multibay Bgr Rack, Lrd
SoundPro Item: 79189 | Part Number: BGR-4538LRD
Regular price
$2,112.30
Regular price
$2,347.00
Sale price
$2,112.30
Unit price
per
MSRP: $2,347.00
| MAP: $2,112.30
Usually ships in 5-7 business days
- Features: Adjustable Mounting Rails
- Features: Cable Management
- Features: Fan Cutout
- Form Factor: Floor Standing
- Product Color: Black
- Product Material: Steel
- Static/Stationary Weight Capacity: 12000 lb
- Height: 82.9"
- Width: 23"
- Depth: 35.4"
- Rack Height: 45U
- Rack Width: 19"
- Rack Depth: 38"
- Environmentally Friendly: Yes
- Environmental Certification: GREENGUARD
- Limited Warranty: Lifetime
- Limited Warranty: Lifetime
BGR = Breakthrough Next-Generation Rack This is the "Next Generation" Rack you have been wanting! BGR series racks have higher weight capacities, provide more useable rackspace, and incorporate more functionality than any other rack system on the market. Features the revolutionary patent-pending LeverLock™ system for tool free installation of cable management accessories. New options include brush grommet rear doors and problem-solving extender bays. Choose a BGR enclosure for the highest level of space efficiency and strength available, and to enable the use of the latest options for installation flexibility.
Structural Features
- Breakthrough design provides more useable rack height - for example, the 45 space version overall height is shorter than 44 space alternative models
- Accepts patent-pending LeverLock™ system accessories for fast, flexible cable management and mounting of small devices such as interface boxes, power supplies, and relay modules
- Unique new extender bay adds 3" of useable depth to the front or rear of the enclosure at any time. Extender bays allow the use of existing doors and can even be stacked for greater depths
- Pre-threaded ganging holes allow ganging while fully loaded
- Wide open bottom accepts multiple base options

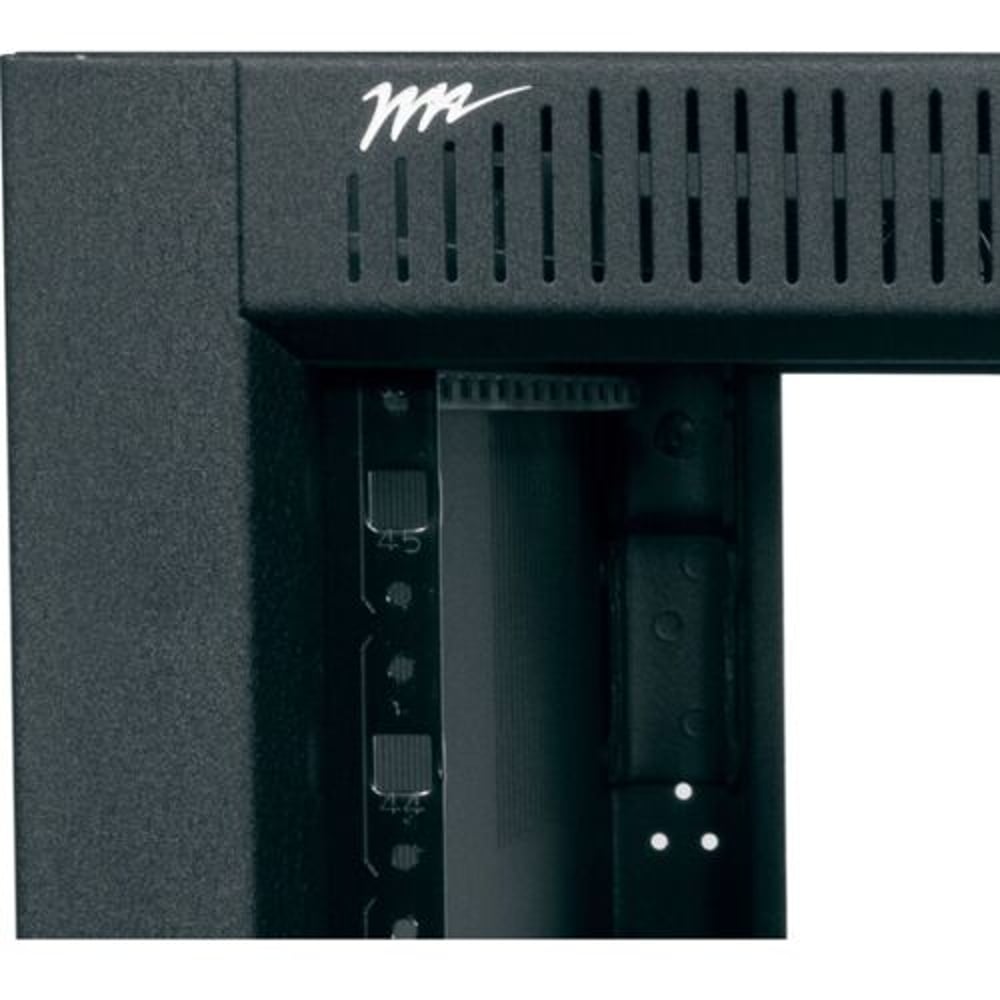

- Standard front and rear adjustable wide, heavy-gauge, 10-32 threaded rackrail with numbered rackspace increments speeds equipment mounting
- Labels included to indicate rail position front to back
- Finished in a durable black textured powder coat
Thermal Management
- Top options include solid, vented, and thermostatically controlled DC fan tops for efficiency
- Standard vented door accepts optional doors
Cable Management
- Accepts LeverLock™ system tool free cable management accessories
- Cable entry choices include generous laser knockouts and choice of trade size openings and/or grommetted pass-throughs
- The generous 21" wide top opening provides for full-width cable and conduit entry, and includes vertical cable entry tie points on both sides
- Optional brush grommet rear door kit can be mounted top or bottom to provide a large cable passage with easy access to the cables without fishing
Specifications
'General Information
Manufacturer
Middle Atlantic Products, Inc
Manufacturer Part Number
BGR-4538LRD
Brand Name
Middle Atlantic Products
Product Series
BGR
Product Name
BGR Series Enclosure
Product Type
Rack Cabinet
Technical Information
Front Rail
Yes
Rear Rail
Yes
Features
Fan Cutout
Cable Management
Adjustable Mounting Rails
Physical Characteristics
Form Factor
Floor Standing
Color
Black
Material
Steel
Static/Stationary Weight Capacity
12000 lb
Rack Height
45U
Rack Width
19"
Rack Depth
38"
Miscellaneous
Certifications & Standards
UL Listed EIA / TIA Sesmic Certified 2007 & 2010 CBC; 2006, 2009 & 2012 IBC ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) 2006 & 2009 editions of NFPA 5000 IBC, ASCE 7, and NFPA 5000
Environmentally Friendly
Yes
Environmental Certification
GREENGUARD
RoHS
Warranty
Limited Warranty
Lifetime
