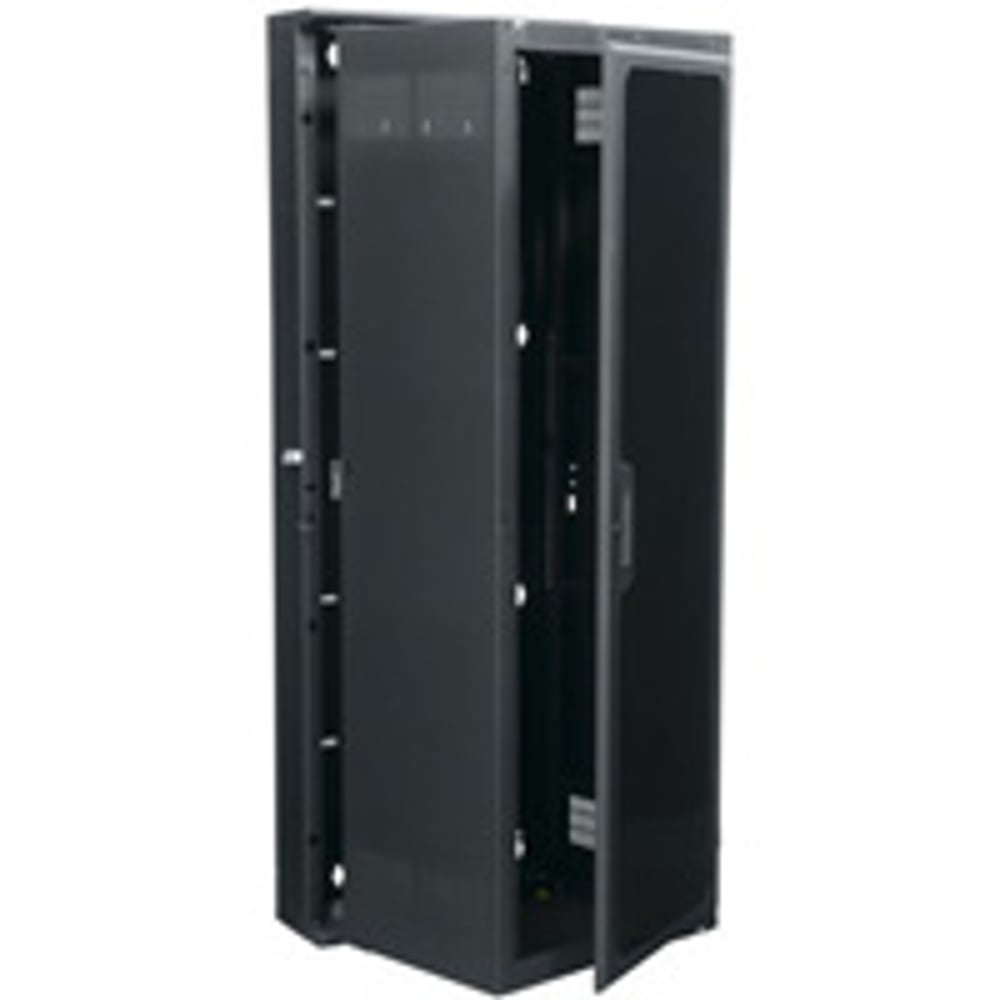

Middle Atlantic DWR-35-22PD 35Sp/22D Wallrack W/Plexi Dr

Middle Atlantic DWR-35-22PD 35Sp/22D Wallrack W/Plexi Dr

SoundPro Item: 80152 | Part Number: DWR-35-22PD

$2,313.90
$2,571.00 $2,313.90
Your Price Sold out
MSRP: $2,571.00 | MAP: $2,313.90

Usually ships in 5-7 business days

  • Form Factor: Wall Mountable
  • Product Color: Black
  • Maximum Weight Capacity: 300 lb
  • Height: 68"
  • Width: 23.4"
  • Depth: 22"
  • Rack Height: 35U
  • Environmentally Friendly: Yes
  • Environmental Certification: GREENGUARD
  • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
  • Limited Warranty: Lifetime
Log in or register for YOUR best price

The DWR Series Wall Racks are now Forward and Lever Lock compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster! 35RU and 22in Deep. Now equipped with the revolutionary Forward rack rail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rack rail is optional (FWD-DWR-RRxx). Now accepts patented Lever Lock tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP). Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch. Center section rear channel accommodates optional Slim power to save space, including the 10 outlet Select Vertical PDU with RackLink. Tool-Free Quick-Mount system for easy, one-person mounting of the center section to the backpan on the jobsite. Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room. Center section swing is reversible, and can be both key-locked and padlocked. Center section is keyed differently from optional front door for additional security. Designed for active or passive cooling to support all systems. Comes with a factory installed plexi door.

View full details

Specifications

'General Information
Manufacturer
Middle Atlantic Products, Inc
Manufacturer Part Number
DWR3522PD
Brand Name
Middle Atlantic Products
Product Series
DWR
Product Model
DWR-35-22PD
Product Name
DWR-35-22PD Rack Cabinet
Product Type
Rack Cabinet
Physical Characteristics
Form Factor
Wall Mountable
Color
Black
Maximum Weight Capacity
300 lb
Rack Height
35U
Miscellaneous
Package Contents
DWR-35-22PD Wall Mount Rack CabinetPlexi Front Door
Additional Information
UL Listed in the US and CanadaEIA/TIA compliantTool-Free Quick-Mount system allows for easy, one-person mounting of the center section to the backpan on the jobsiteAbundant built-in cable lacing points in interior1/2", 3/4", 1", 1 1/2", 2" and 3" electrical knockouts and 5/8" UHF/VHF antenna knockouts on top & bottom, easily removable for cable pass-through12 1/2" x 12 1/2" laser knockout opening in the backpan for electrical pull-boxAbundant Hook and Loop Fastener and internal cable tie pointsStandard adjustable front 11-gauge 10-32 threaded rackrail with marked rackspace increments to speed equipment mountingCenter section hinges for left or right opening accessories2"" knockouts, 4"" knockouts for Wiremold 4000 Series raceways, and knockouts for UCP series universal connector panels on sideGrounding/bonding stud in top and bottom of center section and backpan facilitates proper grounding and bonding of electronic equipment, as per NEBS and NEC standardsFront Mounted Minimum-Clearance Latch saves valuable wall space by allowing wall racks to be placed side-by-side, in a corner, or wherever side clearance is an issue
Environmentally Friendly
Yes
Environmental Certification
RoHS
GREENGUARD
Warranty
Limited Warranty
Lifetime
