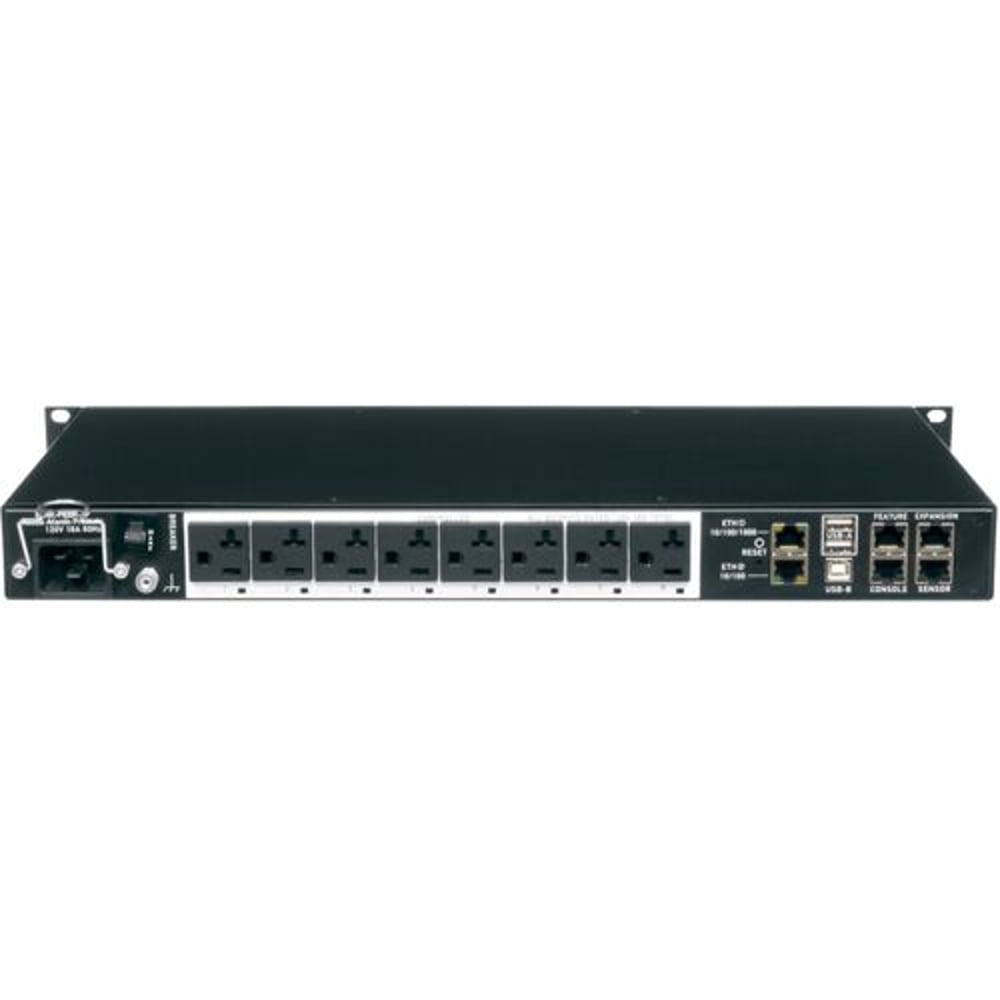

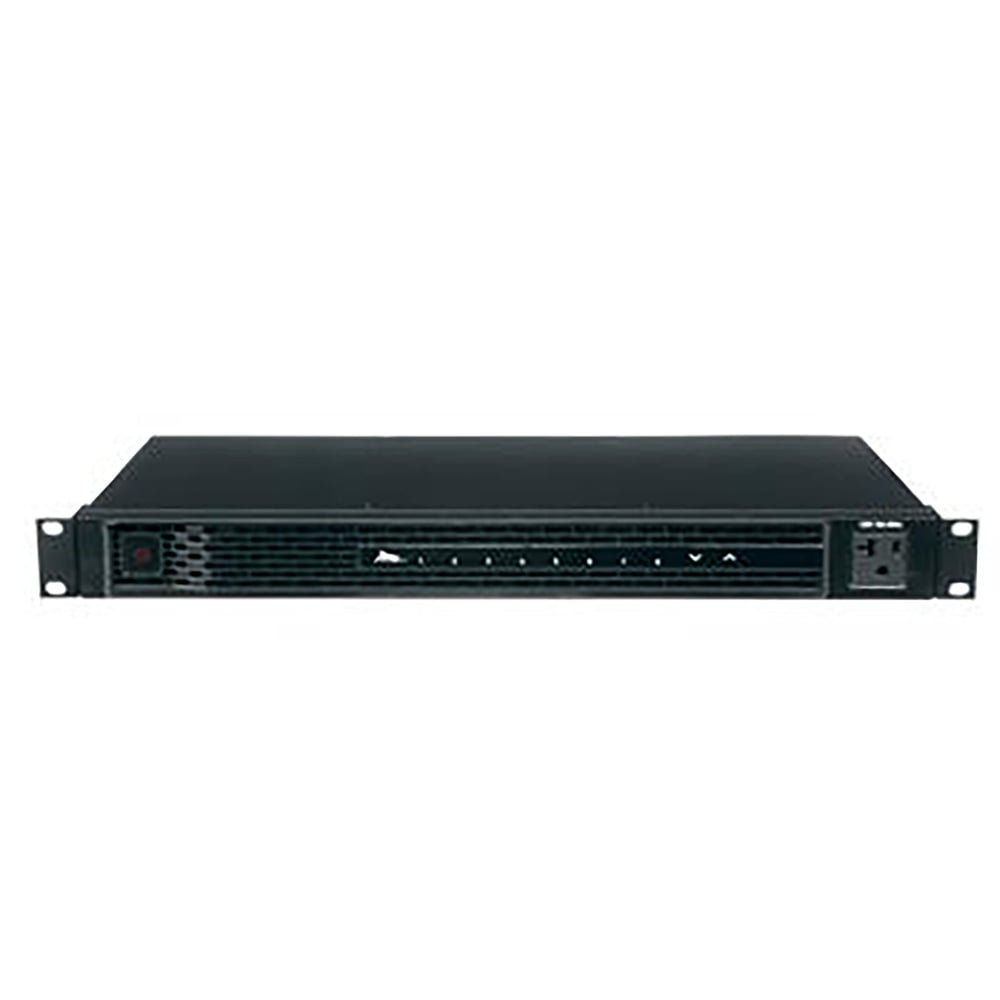

Middle Atlantic RLNK-P920R-SP Premium+ Pdu With Racklink
Middle Atlantic RLNK-P920R-SP Premium+ Pdu With Racklink
SoundPro Item: 104670 | Part Number: RLNK-P920R-SP
Usually ships in 5-7 business days
- PDU Type: Monitored
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 9 x NEMA 5-20R
- Protection Type: Surge Protection
- Protection Type: Spike Protection
- Protection Type: Over Voltage
- Protection Type: Under Voltage Protection
- Protection Type: Noise
- Input Voltage: 120 V AC
- Input Voltage Range: 80 V AC - 140 V AC
- Input Current: 20 A
- Management: SNMP SSL/TLS/SSH SMTP NTP DDNS Cloud CLI TCIP/IP/USB RS-232 HTTPS HTTP HyperTerminal Telnet
- SNMP
- SSL/TLS/SSH
- SMTP
- NTP
- DDNS
- Cloud
- CLI TCIP/IP/USB RS-232
- HTTPS
- HTTP
- HyperTerminal
- Telnet
- Network (RJ-45): Yes
- Mounting Orientation: Horizontal
- Height: 1.8"
- Width: 19"
- Depth: 9.8"
- Environmentally Friendly: Yes
- Limited Warranty: 3 Year
More than power distribution, the Premium+ PDU with RackLink™ is the most advanced - yet simplest - to use IP control solution for Remote System Management in the industry. Developed around a platform that has been proven on the most secure networks in the world, this next-generation power distribution unit provides unmatched monitoring, control, logging, security and power protection capabilities available for demanding AV applications. The RackLink™ technology allows you to control locally or virtually through 3rd party AV control systems, cloud platforms and SNMP for flexible management that is smarter, faster and reduces service costs.
- Simple system setup with advanced capabilities
- Save programming with integrated scheduling, variable timed sequencing, ping sequencing, auto healing, thresholds, and multiple notification options.
- Easily connect to control and IT systems with universal compatibility through custom drivers, SNMP v3/MIB, RESTful API, and 3rd party integrations.
- Connecting via Wi-Fi with a 3rd party dongle dramatically reduces the number of Ethernet ports required
- Configure one PDU or a thousand PDUs in a matter of moments with the ability to save your configuration files
- Remotely update firmware without having to shut down the PDU, ensuring consistent system uptime
- Best-in-class monitoring, logging, and data reporting for remote system management with a user-friendly interface.
- Superior metering accuracy of total power draw down to outlet level including current, voltage, power, power factor and energy usage
- Patent-pending IP sequencing sets user-defined delays and establishes that an IP device will not power on until its networked companion is powered on
- Connect up to 32 environmental sensors to monitor the temperature and humidity and alert potential threats that could cause system downtime
- Industry-leading network security and support of IT protocols for demanding end users
- SSL/TLS Certificates
- SSH
- HTTPS
- Self-signed certificates
- Protect valuable AV equipment with patented Series Protection™; safeguarding critical systems against:
- Surge
- Over voltage
- Under voltage
- Noise
- Built in partnership with Raritan, a leader in the growing intelligent power market, using their Xerus platform to deliver robust security features and intelligence
- Compliant with AVIXA Energy Management Standard to support energy efficient AV system design, monitoring and optimization.
