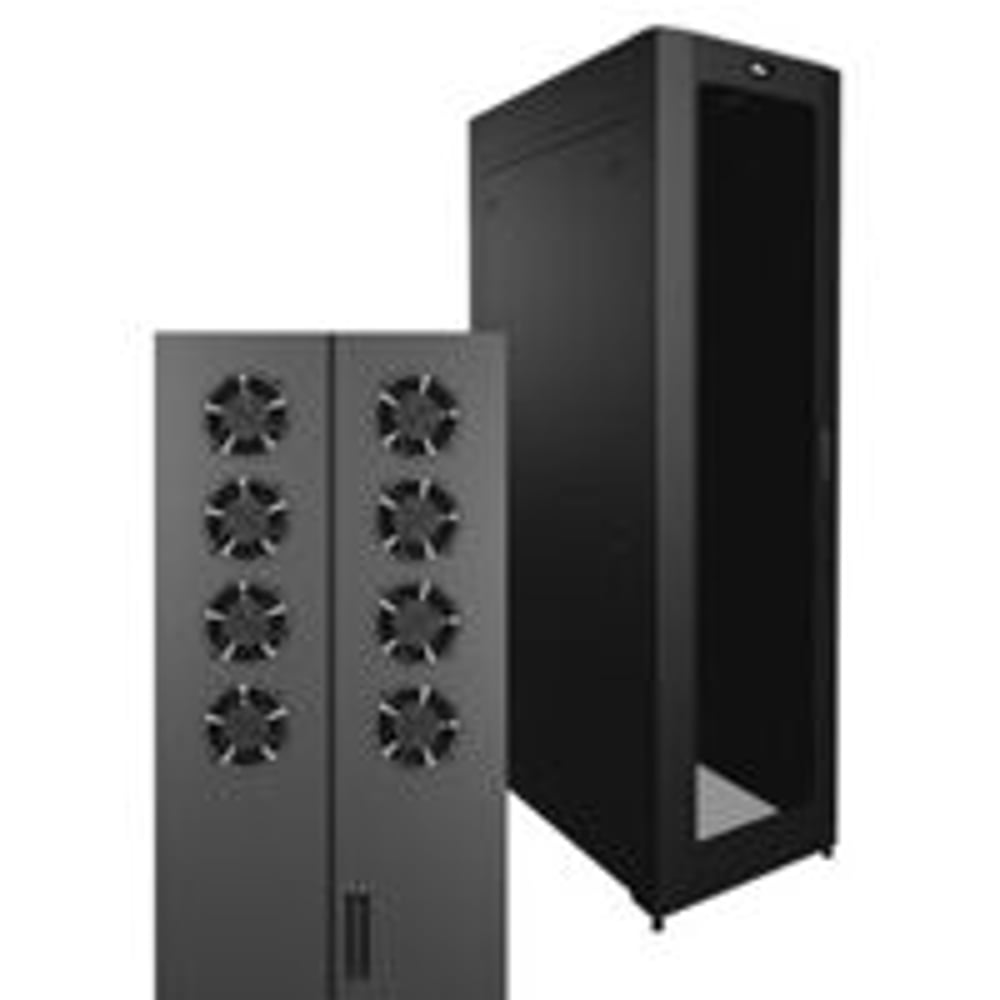

Middle Atlantic SNE24H-4542-A2 24"W, 45Sp, 42"D Config H, F/R Active Encl, Bk
Middle Atlantic SNE24H-4542-A2 24"W, 45Sp, 42"D Config H, F/R Active Encl, Bk
SoundPro Item: 81740 | Part Number: SNE24H-4542-A2
Usually ships in 5-7 business days
- Application/Usage: Patch Panel
- Application/Usage: LAN Switch
- Application/Usage: Server
- Form Factor: Floor Standing
- Product Color: Black Powder Coat
- Product Material: Steel
- Dynamic/Rolling Weight Capacity: 1600 lb
- Static/Stationary Weight Capacity: 12000 lb
- Height: 84.8"
- Width: 24"
- Depth: 43.2"
- Rack Height: 45U
- Rack Width: 19"
- Rack Depth: 38.48"
- Assembly Required: No
- Environmentally Friendly: Yes
- Environmental Certification: ECO PASSPORT
- Environmental Certification: GREENGUARD Gold
- Limited Warranty: Lifetime
The SNE Series Hybrid is configured for hybrid security systems consisting of a mix of analog and digital equipment and cabling. Accommodates small devices including encoders, power supplies and access control systems on the patented Zero-U Tool-Free Lever Lock™ system. Fully configured Security Network Enclosure w/active ventilation for equipment rooms o 70% open area vented front door o Pair of split flush mount locking side panels o (2) vertical 10" wide Lever Lock™ accessory mounting plate o (1) 6" wide vertical wire grid lace o 24" width o 42" overall depth o 45 rackspace o 2 pair of tapped 10-32 adjustable rail o 4 space cage-nut adapter (pair) SNE Series Hybrid with Rear Active Ventilation Solid split rear door with (8) 6" fans for a total of 1,760 CFM active ventilation; Solid top Optional proportional speed fan controller (FC-CFRD)
- Lever Lock™ compatible
- UTL/ETL listed and seismic certified
- Includes 2 vertical 10" wide Lever Lock accessory mounting plates
- Configured for rear active ventilation
- Includes 1,760 CFM split fan rear door (eight 6" fans, expandable)
- Optional proportional door fan controller (FC-CFRD, not included)
- Includes 70% open front door and solid top
- Includes one piece of 6" wide vertical wire grid lace
- Includes pair of split flush mount locking side panels
- Includes 2 pair of adjustable 10-32 tapped rackrail
- Includes four-space cage-nut adaptor (pair)
- Includes 4 leveling feet
- Includes 4 casters
