Middle Atlantic UPX-2000R-2 2000Va 120V Ups Local Bank Control
Middle Atlantic UPX-2000R-2 2000Va 120V Ups Local Bank Control
SoundPro Item: 140032 | Part Number: UPX-2000R-2
Regular price
$3,079.80
Regular price
$3,422.00
Sale price
$3,079.80
Unit price
per
MSRP: $3,422.00
| MAP: $3,079.80
Usually ships in 5-7 business days
- 8 outlets-Bank Controlled option with (2) 4 outlet banks-Individually Controlled options for all 8 outlets via RackLink™
- 8 outlets-Bank Controlled option with (2) 4 outlet banks-Individually Controlled options for all 8 outlets via RackLink™
- All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
- All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
- Everything is assembled and connected right from the factory saving you time during your installations-Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail-The battery is alrea...
- Everything is assembled and connected right from the factory saving you time during your installations-Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail-The battery is alrea...
- The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications
- The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications
- The NEXSYS UPSs are RackLink compatible for remote monitoring and management and some are compatible right out of the box! Look for RLNK in the part number. Use the RackLink Discovery Tool on your on PC, Apple or Android devices and connect directly to...
- The NEXSYS UPSs are RackLink compatible for remote monitoring and management and some are compatible right out of the box! Look for RLNK in the part number. Use the RackLink Discovery Tool on your on PC, Apple or Android devices and connect directly to...
- Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
- Set reminders or notifications for things like battery replacement, etc. via email or on the UPS

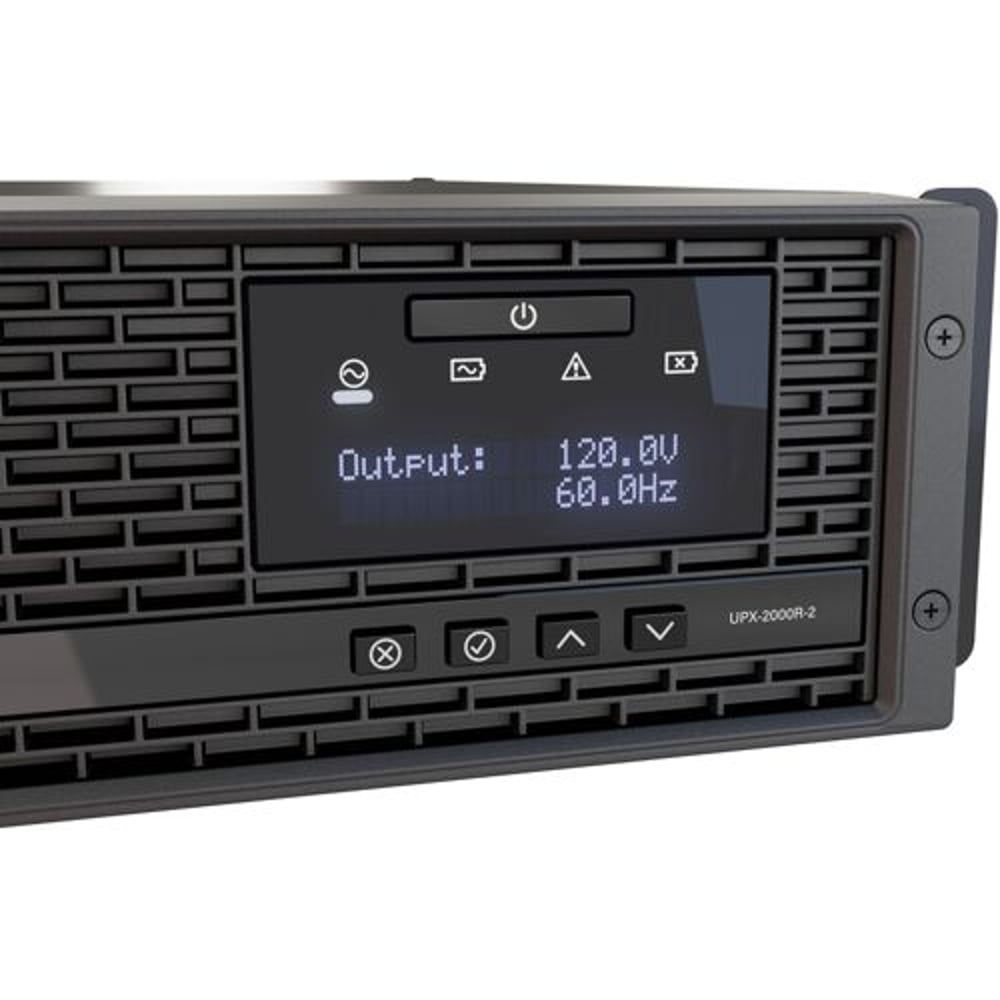

- Front panel LCD screen shows UPS Device Name, Model Number, Serial Number, Replacement Battery Number, Battery Install Date, Firmware Version and where applicable, RackLink Network card IP address and MAC address
- Front panel LCD screen shows UPS Device Name, Model Number, Serial Number, Replacement Battery Number, Battery Install Date, Firmware Version and where applicable, RackLink Network card IP address and MAC address
- Hot swappable battery from the front access panel for easy service without disrupting the system
- Hot swappable battery from the front access panel for easy service without disrupting the system
- The IEC Input allows for better cable management of the power cord if shorter or longer cords are required-All UPSs include a 6' (1.8m) IEC power cord
- The IEC Input allows for better cable management of the power cord if shorter or longer cords are required-All UPSs include a 6' (1.8m) IEC power cord
- Energy Star Certified
NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect.
Specifications
'General Information
Manufacturer
Legrand Group
Manufacturer Part Number
UPX-2000R-2
Brand Name
Middle Atlantic
Product Line
NEXSYS
Product Model
UPX-2000R-2
Product Name
NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS
Product Type
Line-interactive UPS
Technical Information
AVR
Yes
Plug/Connector Type
NEMA 5-20P
Receptacle Type
NEMA 5-20R
Receptacle Detail

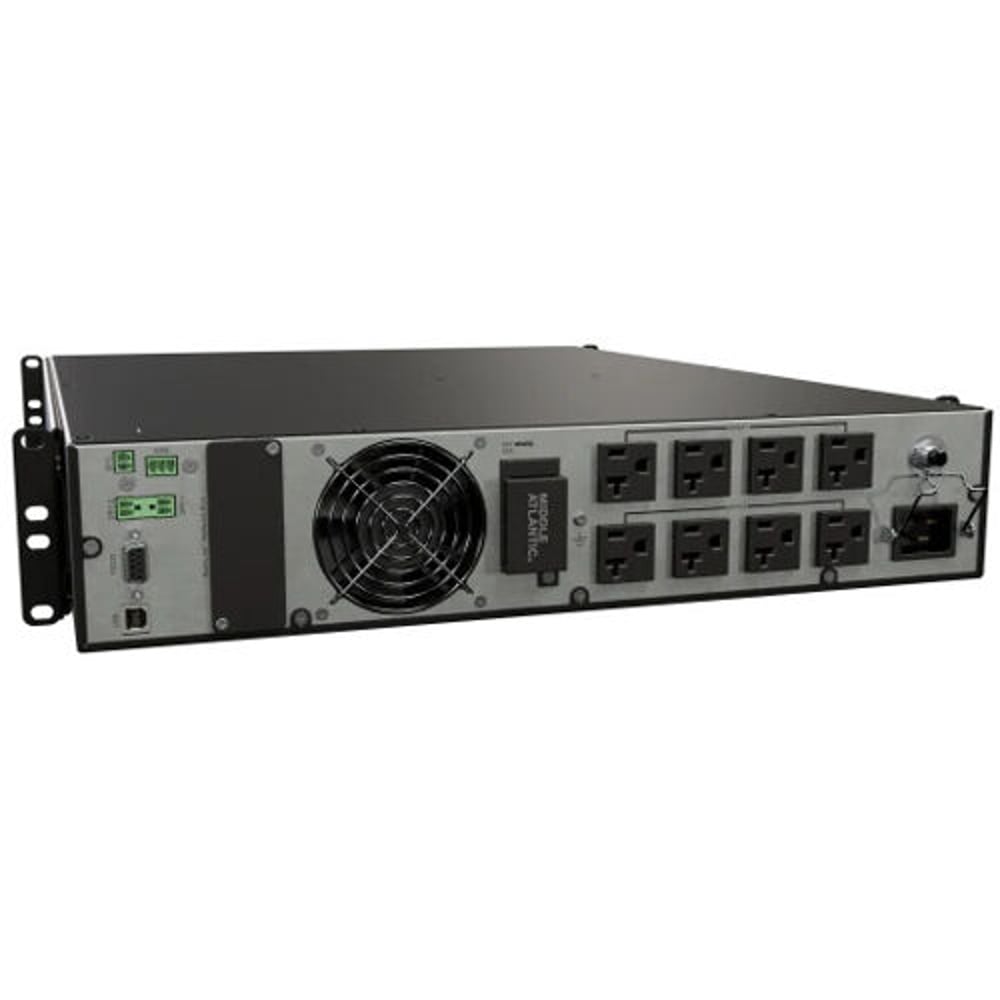

8 x NEMA 5-20R
Transfer Time
10 ms
Application/Usage
Desktop
Bank
Power Description
Load Capacity
2000 VA/1800 W
Input Voltage
120 V AC
Input Voltage Range
80 V AC - 158 V AC
Output Voltage
110 V AC
120 V AC
127 V AC
Input Frequency
60 Hz
Output Frequency
60 Hz
Waveform Type
Pure Sine Wave
Surge Energy Rating
1000 J
Display & Graphics
Display
LCD
Management
Network Management
SNMP/Telnet/SSH
SNMPv3
Alarm
On Battery
Low Battery
Battery Disconnected
Fault
Overload
Controls/Indicators
Status Indicators
LED Indicators: Normal Mode AVR Mode Battery Mode Internal Fault Battery Fault
Interfaces/Ports
Serial Port
Yes
USB
Yes
EPO Port
Yes
Battery Information
DC System Voltage
48 V DC
Number of Batteries
4
Battery Characteristics
Maintenance-free, Sealed
Battery Chemistry
Lead Acid
Battery Size
12V
Battery Capacity
9000 mAh
Backup/Run Time (Full Load)
3 Minute
Backup/Run Time (Half Load)
10 Minute
Typical Battery Recharge Time
8 Hour
Hot Swappable
Yes
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Storage Temperature
5°F (-15°C) - 113°F (45°C)
Operating Humidity
0% - 95%
Sound Emission
50 dB
Physical Characteristics
Form Factor
Rack-mountable
Miscellaneous
Package Contents
NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS 6' (1.8m) IEC Power Cord
Energy Star
Yes
Environmentally Friendly
Yes
Environmental Certification
RoHS 3
REACH
ENERGY STAR 2.0
Country of Origin
China
Warranty
Limited Warranty
3 Year
Additional Warranty Information
2 Years Battery
