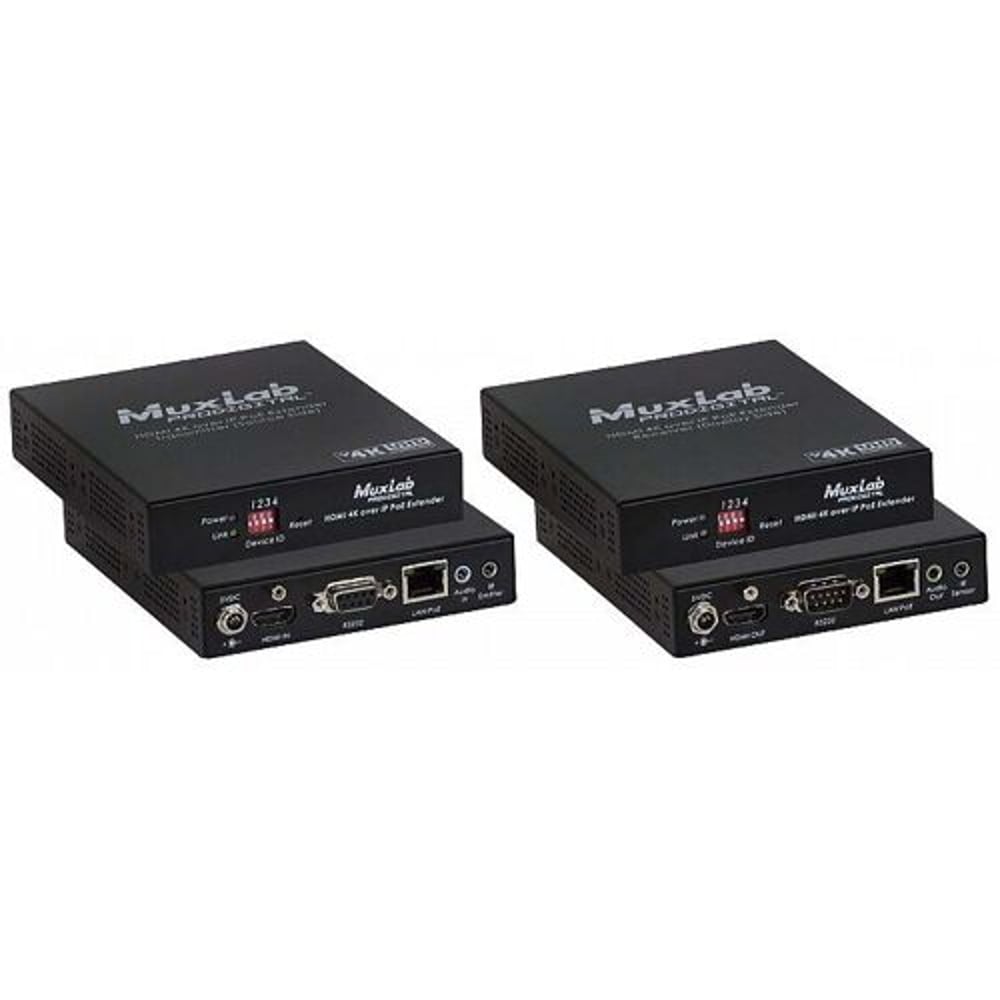

MUXLAB 500759-RX Hdmi 4K Over Ip Poe Receiver

MUXLAB 500759-RX Hdmi 4K Over Ip Poe Receiver

SoundPro Item: 137126 | Part Number: 500759-RX

Regular price $622.00
Regular price $777.00 Sale price $622.00
Your Price Sold out
MSRP: $777.00 | MAP: $622.00

Usually ships in 5-7 business days

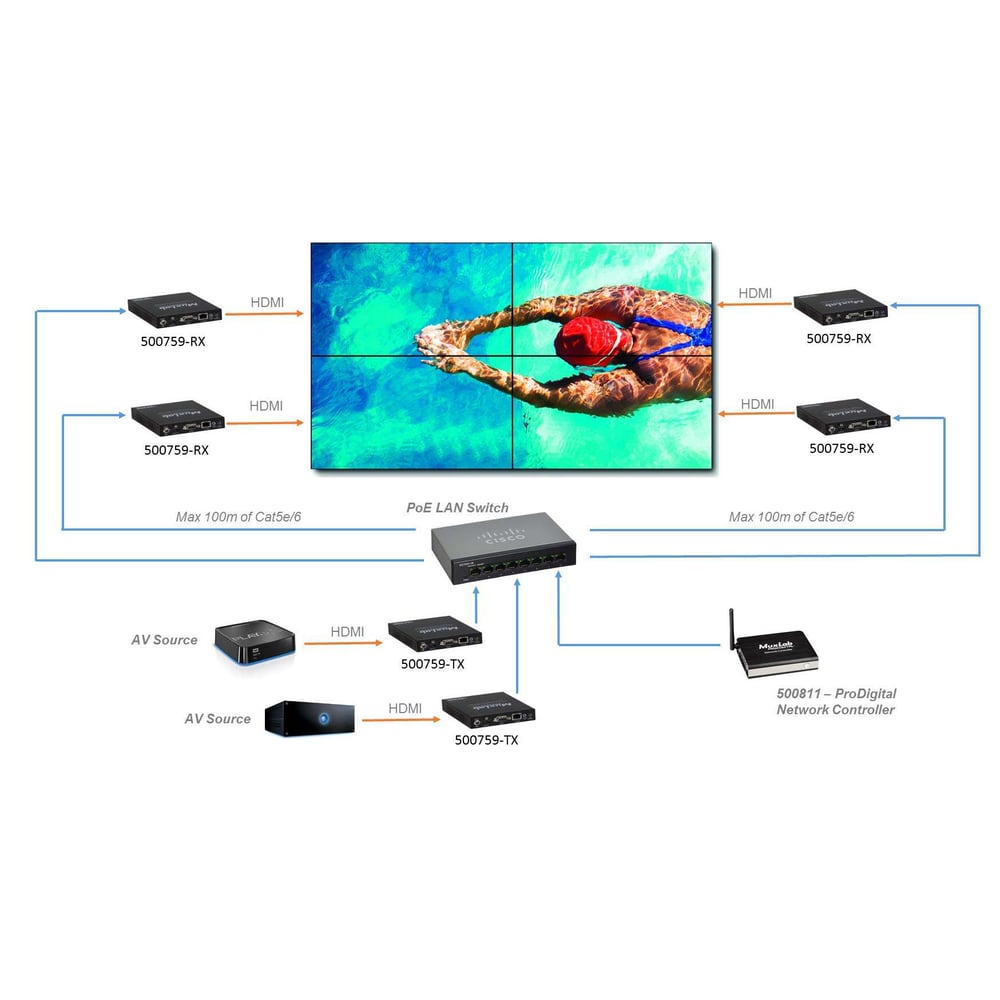

  • Configure a Video Wall array with 100's of displays, depending on network bandwidth
  • Supports up to 4K @ 30Hz and 1080p @ 60Hz
  • Visually lossless video (1 frame latency)
  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Transmission up to 330ft (100m) over Cat5e/6
  • Supports audio insert (TX) & audio extract (RX)
  • Supports RS232 and IR transmission for remote control
  • PoE powered
  • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)
  • Media Type Supported: Twisted Pair
  • Twisted Pair Cable Standard: Category 6
  • Receiver Height: 1"
  • Receiver Width: 5.08"
  • Receiver Depth: 4.40"
  • Receiver Weight (Approximate): 1.50 lb
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS
  • Limited Warranty: 2 Year

The HDMI 4K over IP solution is a cost-effective and versatile video extension system that works with all types of signal formats and resolutions. You can add, remove, or reorder displays on the fly to create a video wall of any size. And with the ability to support 100's of shows depending on network capacity, you can create a large, affordable, and attractive video wall for your home or business. The system can be scaled in size to support any resolution, including up to 4K.

View full details

Specifications

'General Information
Manufacturer
MuxLab, Inc
Manufacturer Part Number
500759-RX
Brand Name
MuxLab
Product Model
500759-RX
Product Name
Video Wall 4K over IP PoE Extender RX
Product Type
Video Extender Receiver
Technical Information
Connectivity Technology
Wired
Number of Output Devices Supported
1
Maximum Operating Distance
328.08 ft
Video
Graphics Modes
4K
Maximum Video Resolution
3840 x 2160
Interfaces/Ports
Network (RJ-45)
Yes
HDMI Out
Yes
Serial Port
Yes
Number of Network (RJ-45) Ports
1
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 6
Physical Characteristics
Receiver Height
1"
Receiver Width
5.08"
Receiver Depth
4.40"
Receiver Weight (Approximate)
1.50 lb
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
2 Year
