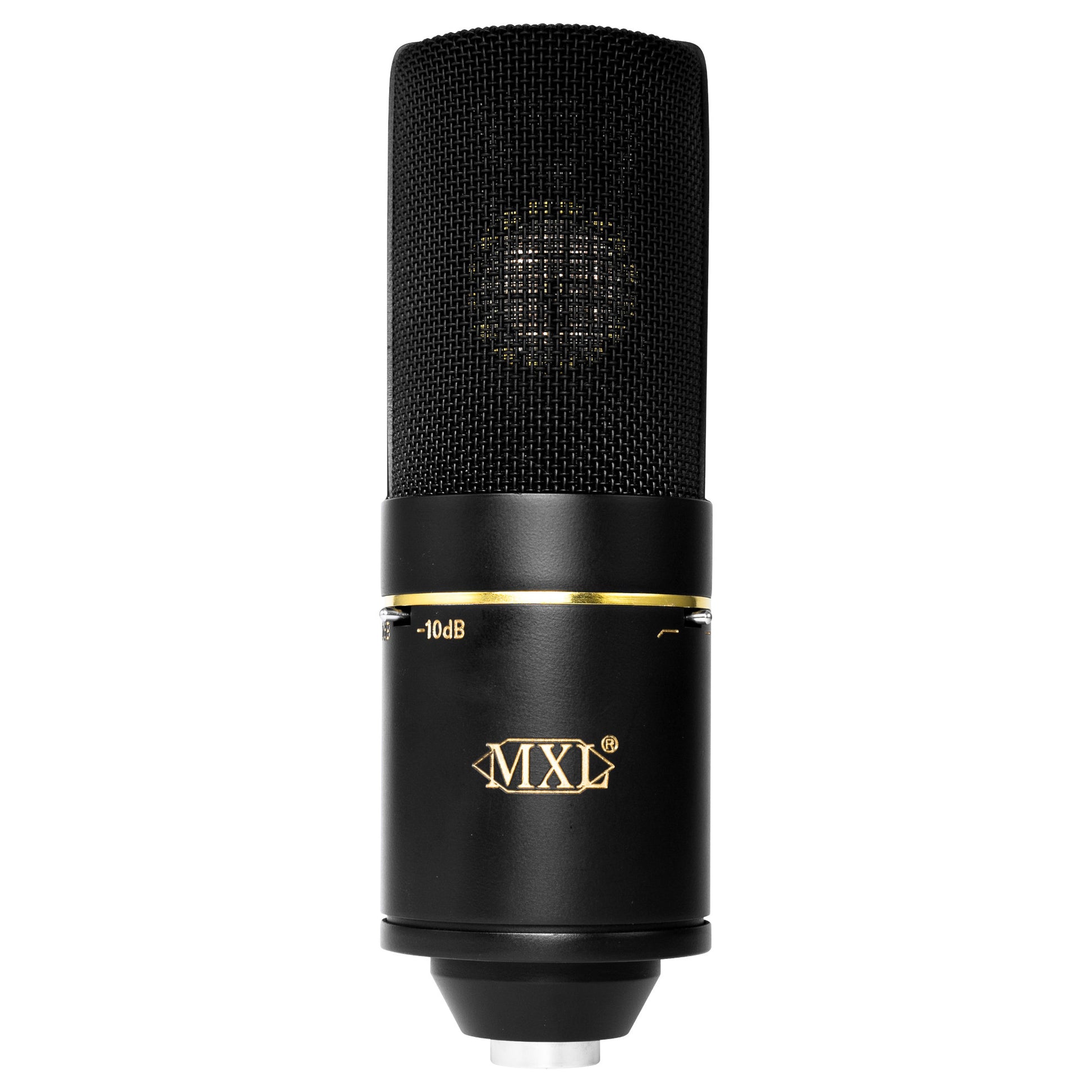

MXL 770X Large Diaphragm Multi-Pattern Condenser Microphone

MXL 770X Large Diaphragm Multi-Pattern Condenser Microphone

SoundPro Item: 105997 | Part Number: 770X

Regular price $150.00
Regular price $300.00 Sale price $150.00
Your Price Sold out
MSRP: $300.00 | MAP: $150.00

Usually ships in 5-7 business days

  • Multi-pattern, multi-purpose large diaphragm condenser
  • Balanced frequency response makes this mic viable on almost any acoustic source
  • Switchable cardioid, figure-of-eight, and omnidirectional polar patterns for versatility
  • Package includes 770X microphone, shock mount with integrated pop-filter, balanced 20′ XLR cable, and a microfiber cleaning cloth

The 770X multi-pattern condenser microphone package from MXL Microphones offers recording flexibility and increased performance in an all-in-one recording bundle. Building on the success and versatility of our popular 770, the 770X includes a larger upgraded gold-sputtered diaphragm for increased dynamic range and enhanced detail. The capsule offers 3 selectable polar patterns (Cardioid, Figure 8, and Omni-directional) optimizing the 770X for vocal, instrument, and even room recording situations. The 770X bundle includes the 770X mic, a heavy-duty shock mount with an integrated pop-filter, a 20″ balanced XLR cable, and a microfiber cleaning cloth. This package is a perfect solution combining flexibility, quality, and value for the recording musician.

The 770X includes the essentials for almost any recording application. From drum room mics (in omni) to an intimate vocal performance (with the included shockmount/ pop filter) the 770X one of our most versatile solutions. Your mic locker will thank you.

View full details
  • Transducer TypeCondenser
  • Polar Patterns (selectable)Cardioid, Figure-8, Omnidirectional
  • Frequency Response20 Hz - 20 kHz
  • Impedance200 ohms
  • Sensitivity-35 dB re 1 V/Pa
  • Attenuation switch0 dB, -10 dB
  • High pass filter6 dB/Octave @ 135 Hz
  • Equivalent noise16 dB (A-weighted IEC 651)
  • S/N Ratio78 dB (Ref. 1 Pa A-Weighted)
  • Max SPL for .5% THD130 dB/140 dB (0 dB, -10 dB pad)
  • Power requirements48V phantom power (+/- 4V)
  • Size2.36 x 7.28 inches (60 x 185 mm)
  • Weight1.1 lbs (500 g)
  • Metal finishBlack with Black Grill
