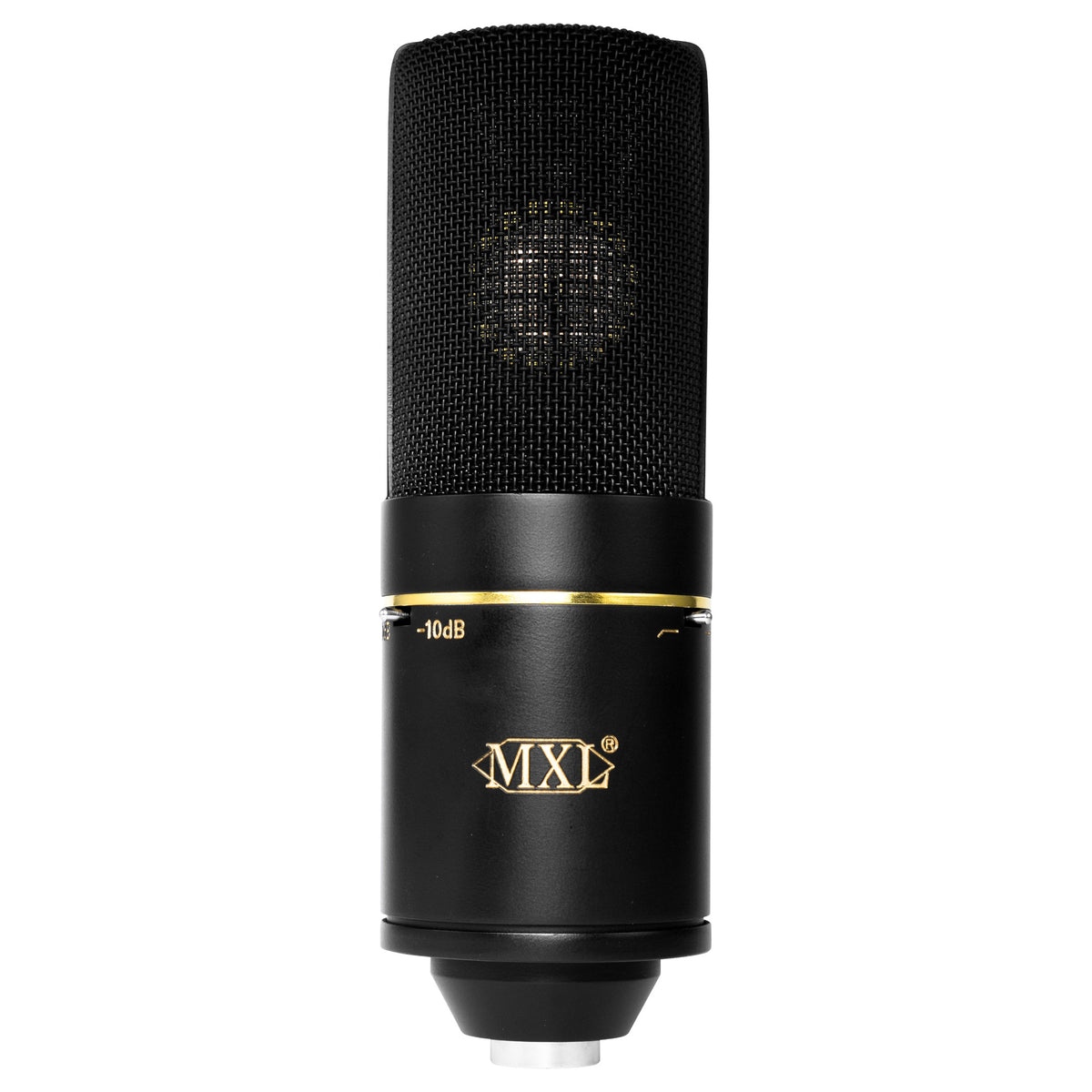

MXL 770X Large Diaphragm Multi-Pattern Condenser Microphone

MXL 770X Large Diaphragm Multi-Pattern Condenser Microphone

SoundPro Item: 105997 | Part Number: MXL-770X

Regular price $149.95
Regular price $229.95 Sale price $149.95
Your Price Sold out
MSRP: $229.95 | MAP: $149.95

Usually ships in 5-7 business days

  • Multi-pattern, multi-purpose large diaphragm condenser
  • Balanced frequency response makes this mic viable on almost any acoustic source
  • Switchable cardioid, figure-of-eight, and omnidirectional polar patterns for versatility
  • Package includes 770X microphone, shock mount with integrated pop-filter, balanced 20′ XLR cable, and a microfiber cleaning cloth

The 770X multi-pattern condenser microphone package from MXL Microphones offers recording flexibility and increased performance in an all-in-one recording bundle. Building on the success and versatility of our popular 770, the 770X includes a larger upgraded gold-sputtered diaphragm for increased dynamic range and enhanced detail. The capsule offers 3 selectable polar patterns (Cardioid, Figure 8, and Omni-directional) optimizing the 770X for vocal, instrument, and even room recording situations. The 770X bundle includes the 770X mic, a heavy-duty shock mount with an integrated pop-filter, a 20″ balanced XLR cable, and a microfiber cleaning cloth. This package is a perfect solution combining flexibility, quality, and value for the recording musician.

The 770X includes the essentials for almost any recording application. From drum room mics (in omni) to an intimate vocal performance (with the included shockmount/ pop filter) the 770X one of our most versatile solutions. Your mic locker will thank you.

View full details

Specifications

Dimensions
Size
2.36 x 7.28 inches (60 x 185 mm)
Electrical
Max SPL for .5% THD
130 dB/140 dB (0 dB, -10 dB pad)
Power Requirements
48V phantom power (+/- 4V)
Audio
Polar Patterns (selectable)
Cardioid, Figure-8, Omnidirectional
Frequency Response
20 Hz - 20 kHz
Impedance
200 ohms
Sensitivity
-35 dB re 1 V/Pa
Construction
Metal Finish
Black with Black Grill
Shipping
Weight
1.1 lbs (500 g)
General
Transducer Type
Condenser
Attenuation Switch
0 dB, -10 dB
High Pass Filter
6 dB/Octave @ 135 Hz
Equivalent Noise
16 dB (A-weighted IEC 651)
S/N Ratio
78 dB (Ref. 1 Pa A-Weighted)
