• MXL Revelation II Multi-Pattern Tube Condenser Microphone
1 1

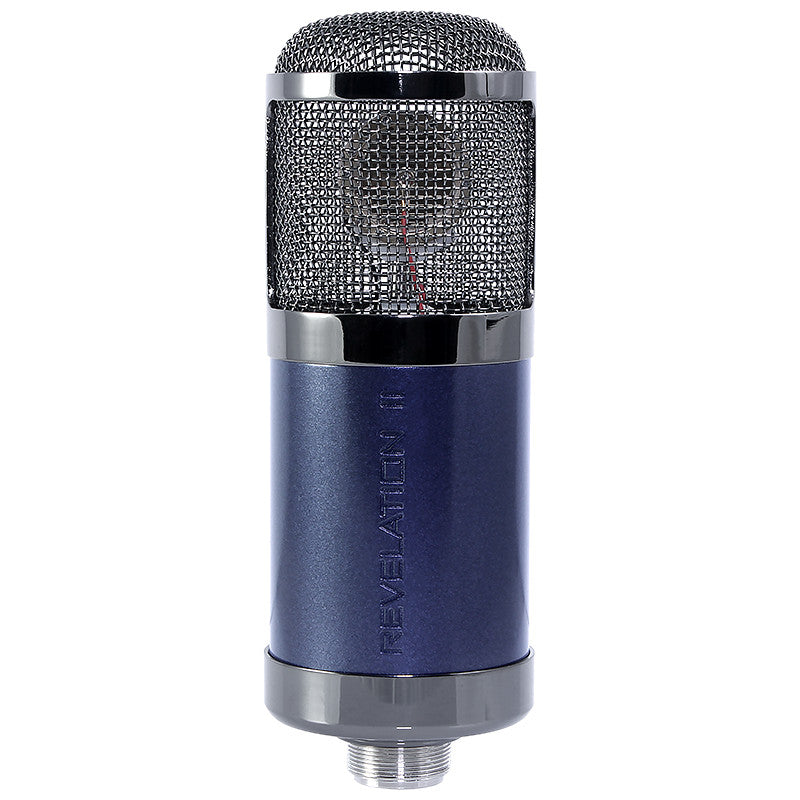

MXL Revelation II Multi-Pattern Tube Condenser Microphone

MXL Revelation II Multi-Pattern Tube Condenser Microphone

SoundPro Item: 105995 | Part Number: REVELATION II

$500.00
$700.00 $500.00
Your Price Sold out
MSRP: $700.00 | MAP: $500.00

Usually ships in 5-7 business days

  • Flagship variable polar pattern tube mic
  • Voiced after the music industry’s most sought after mics, delivering a clear and pronounced midrange, tight lows and smooth highs
  • Perfect for vocals and acoustic instruments
  • EF86 Pentode Tube and Mogami Tube Cable internal wiring for top performance
Log in or register for YOUR best price

The Revelation II is a studio microphone that delivers the warmth and intimacy of a classic tube microphone with a lush mid-range providing a unique color and sound to any microphone locker. A dual gold-sputtered, 6-micron diaphragm and hand-selected EF86 pentode tube provide warmth and character giving the Revelation II an iconic sound. The Revelation II’s variable selection knob allows for limitless transitions between cardioid, omnidirectional, and figure-8 polar patterns. Whether you record vocals, instruments, percussion or simply use it as a room mic, the Revelation II brings a classic sound in any recording application.

The deep midrange and balanced top end of the Revelation II helps it becomes a true utility in the studio. Tame harsh sources like cymbals or acoustic guitar or bring out the depth in a vocalist. The variable polar pattern allows creators to dial in a unique and purpose-driven sound in any recording space.

View full details
  • Transducer TypeCondenser
  • Polar Patterns (selectable)Cardioid, Figure-8, Omnidirectional
  • Frequency Response20 Hz - 20 kHz
  • Impedance140 ohms
  • Sensitivity-40 dB re 1 V/Pa
  • Attenuation switch0 dB, -10 dB
  • High pass filter12 dB/octave @ 125Hz
  • Equivalent noise-18 dB (A-weighted IEC 651)
  • S/N ratio76 dB
  • Max SPL for .5% THD138 dB SPL
  • Power requirementsRevelation® Power Supply Unit 110/220 VAC, 50/60Hz
  • Size (mic only)7 1/2 x 2 1/2 inches (190 x 63.5 mm)
  • Weight (mic only) 2 lbs (907 g)
  • Metal finishDark violet and black chrome
