NETGEAR GSM4230UP-100NAS AV Network Switch With PoE++

NETGEAR GSM4230UP-100NAS AV Network Switch With PoE++

SoundPro Item: 116762 | Part Number: GSM4230UP-100NAS

$3,929.64
$3,929.64 $3,929.64
Your Price Sold out
MSRP: $3,929.64 | MAP: $3,929.64

In stock and ready to ship

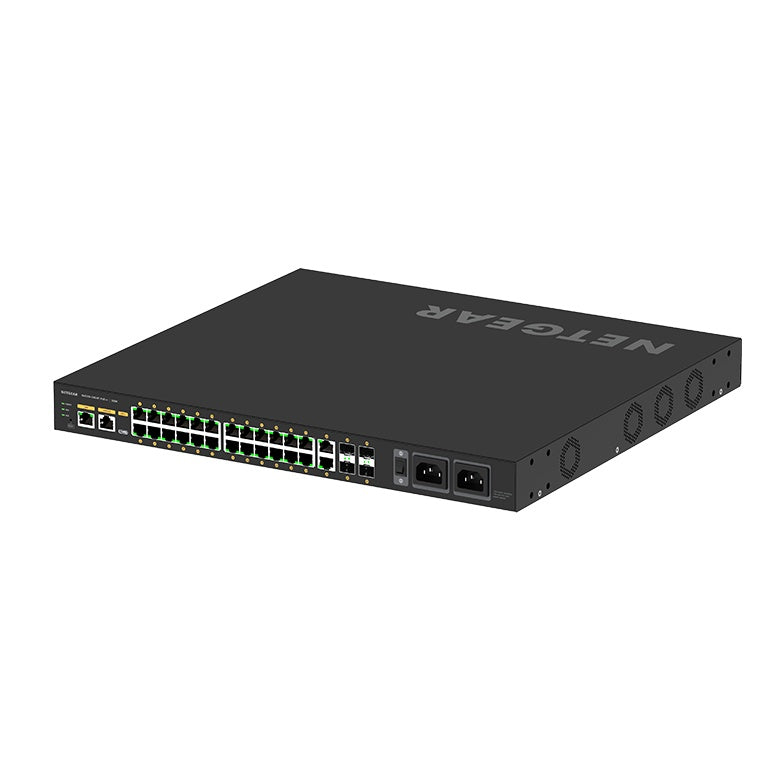

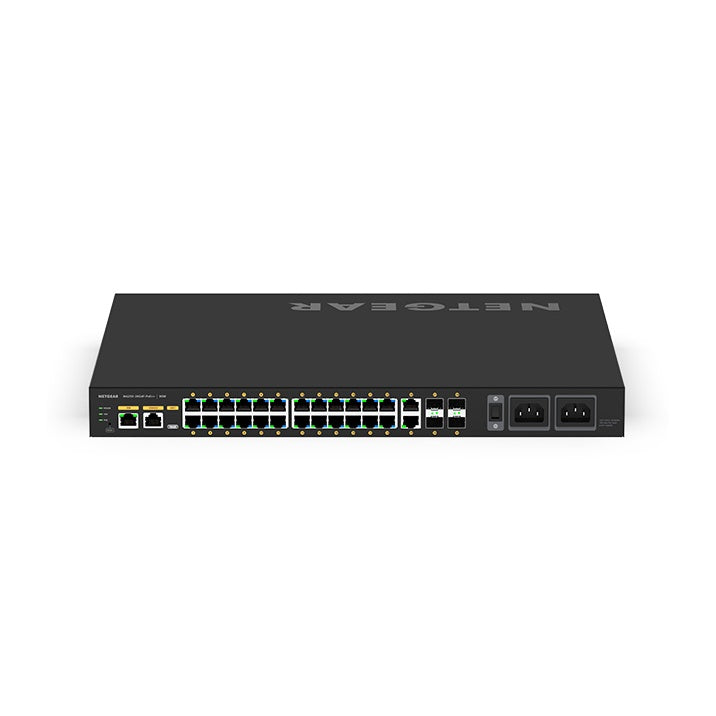

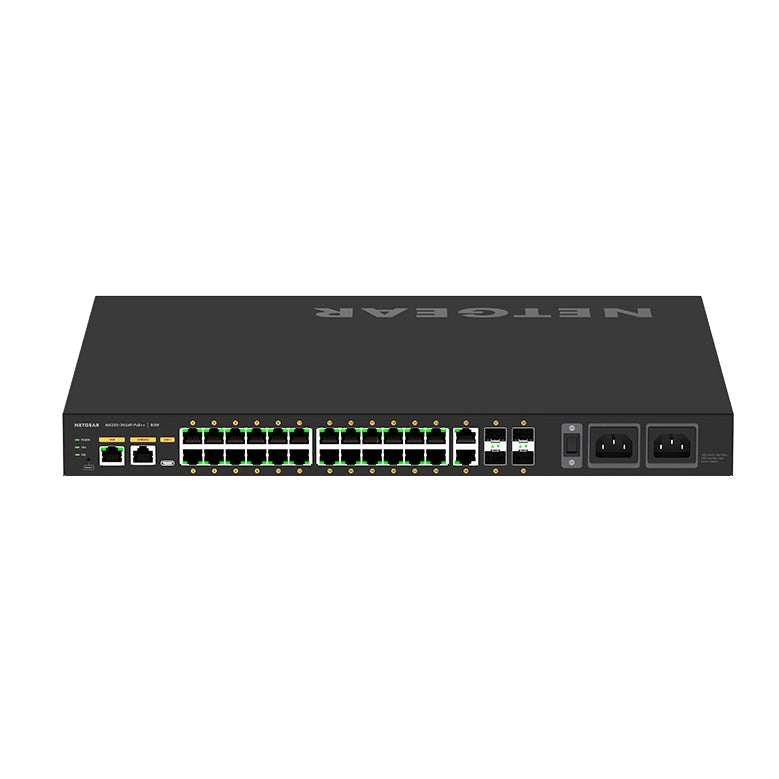

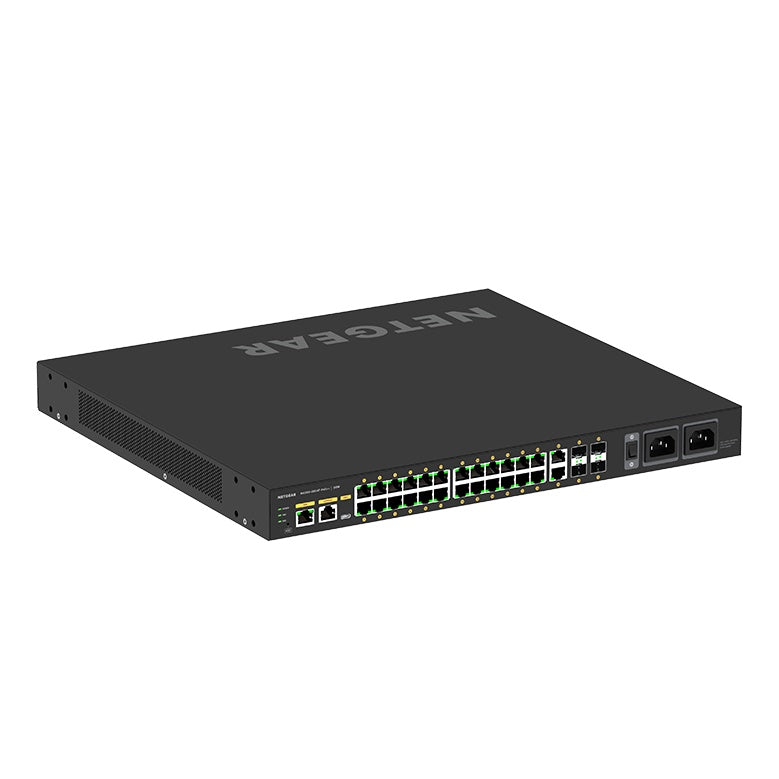

  • Rear-Facing Ports Support Clean Rack Builds
  • AV GUI Simplifies Per-Port Profile Setup
  • IGMP Plus Enables Fast Multicast Deployment
  • 24 PoE++ Ports Power Demanding AV Endpoints
  • Auto-Trunk And Auto-LAG Speed Switch Linking
Log in or register for YOUR best price

The NETGEAR GSM4230UP-100NAS is a managed AV network switch built for 1G AV over IP environments where clean rack integration and fast deployment matter. Its rear-facing port layout helps keep installed systems orderly, while the simplified AV-focused interface supports rapid profile assignment at the port level. For integrators and live production teams working with networked video and audio, that means less time spent on baseline switch setup and more time focusing on system performance.

This model provides substantial PoE++ capacity for connected endpoints such as AV over IP encoders, decoders, and other powered devices in centralized installations. NETGEAR IGMP Plus enables multicast functionality out of the box for many AV applications, reducing configuration overhead in common deployments. Auto-trunk and auto-LAG support also help when linking with compatible M4250 and M4300 switches in larger systems.

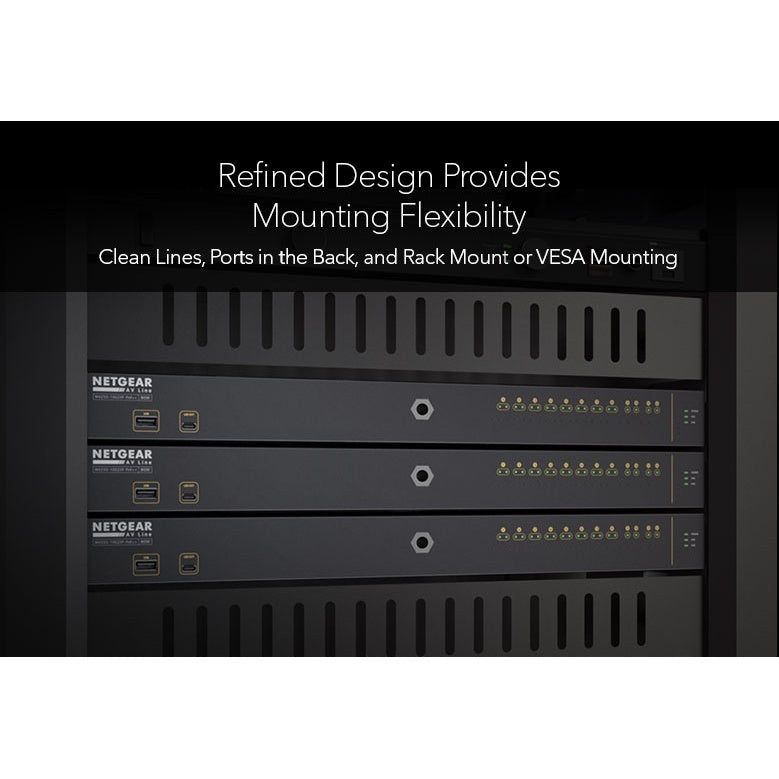

Mounting flexibility supports a range of professional environments, including racks, under-table positions, and wall placement with included hardware. The switch also ships with console cables, brackets for standard and recessed mounting, footpads, and a power cord to support installation workflows.

Downloads

View full details

Specifications

Physical

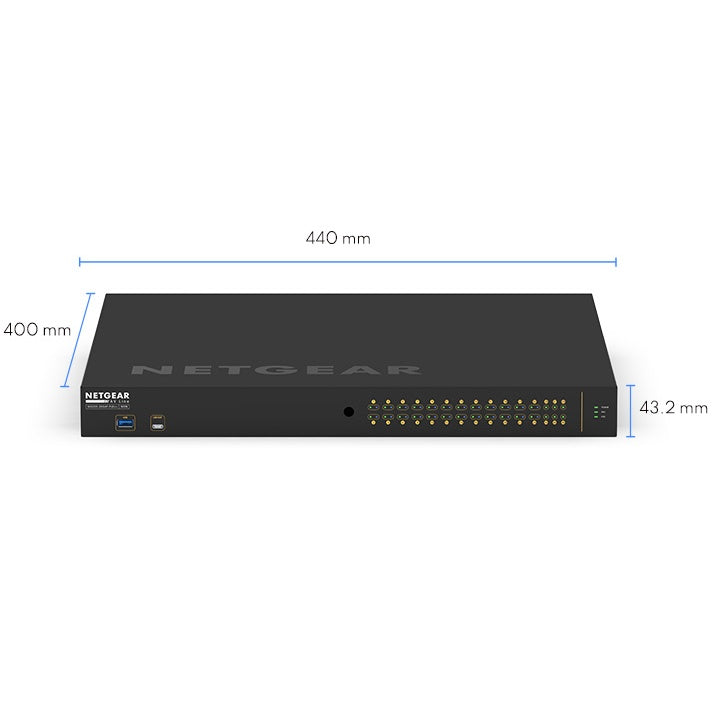

Dimensions (WxDxH)
440 x 400 x 43.2 mm
Weight
6.75Kg (14.87lb)
Ports And Performance
Primary Port Speed
1 Gigabit
Number of Ports

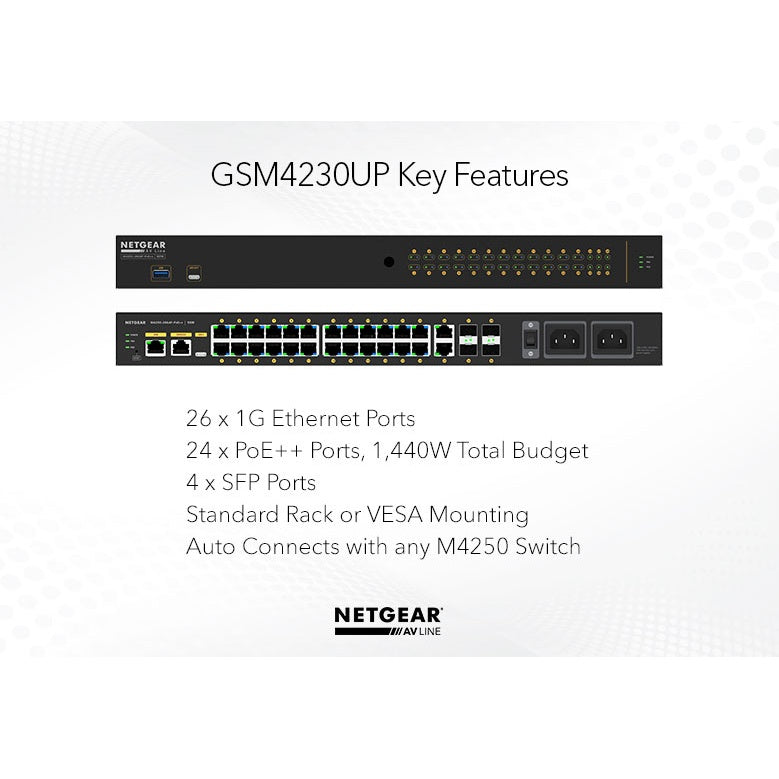

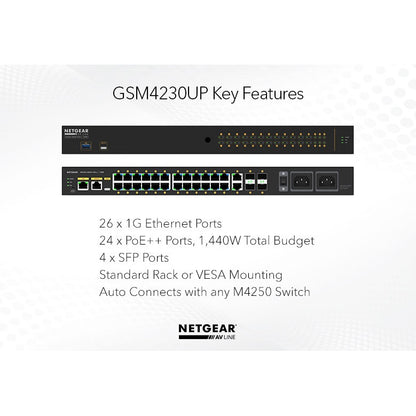

30 (24x 1G PoE++, 2x 1G, 4x SFP)
PoE Ports / Budget
24 PoE++ (90W/port), 1,440W Budget
Jumbo Frame Support
Yes, up to 12kb
Networking
IGMP Support
Enhanced (NETGEAR IGMP Plus™)
AVB Support
Yes. Electronic license required, activation key sent via email (AVB4230UP-10000S).
Acoustics And Power
Acoustics
Fanless or 60dB@25ºC
Power Consumption
Single AC With PoE: 889W/3035.05Btu/hr
Warranty
Warranty
This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty . Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
In The Box
What's in the Box
M4250-26G4F-PoE++ (GSM4230UP), Power cord(s), Console USB Type-C and RJ45-DB9 cables, Rack-mounting standard brackets, Longer brackets for recessed mounting, Rubber footpads for tabletop installation, Installation guide
