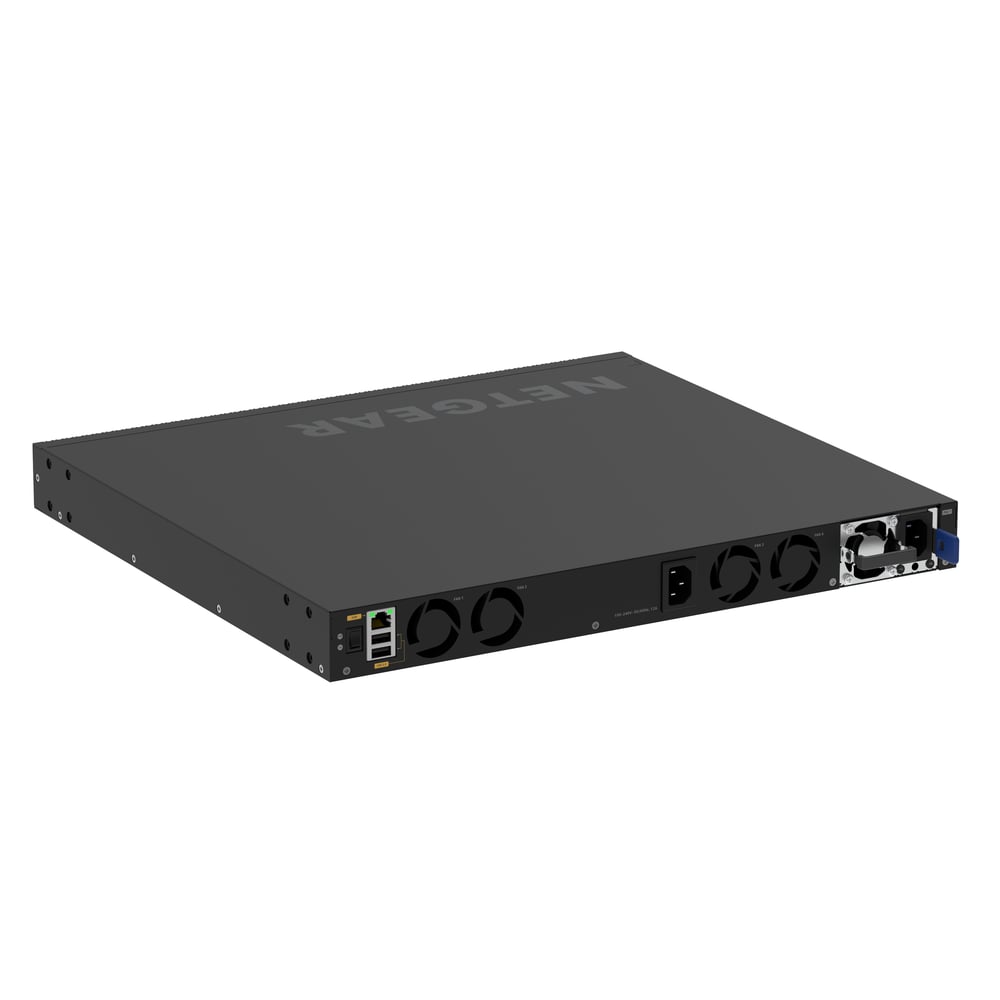

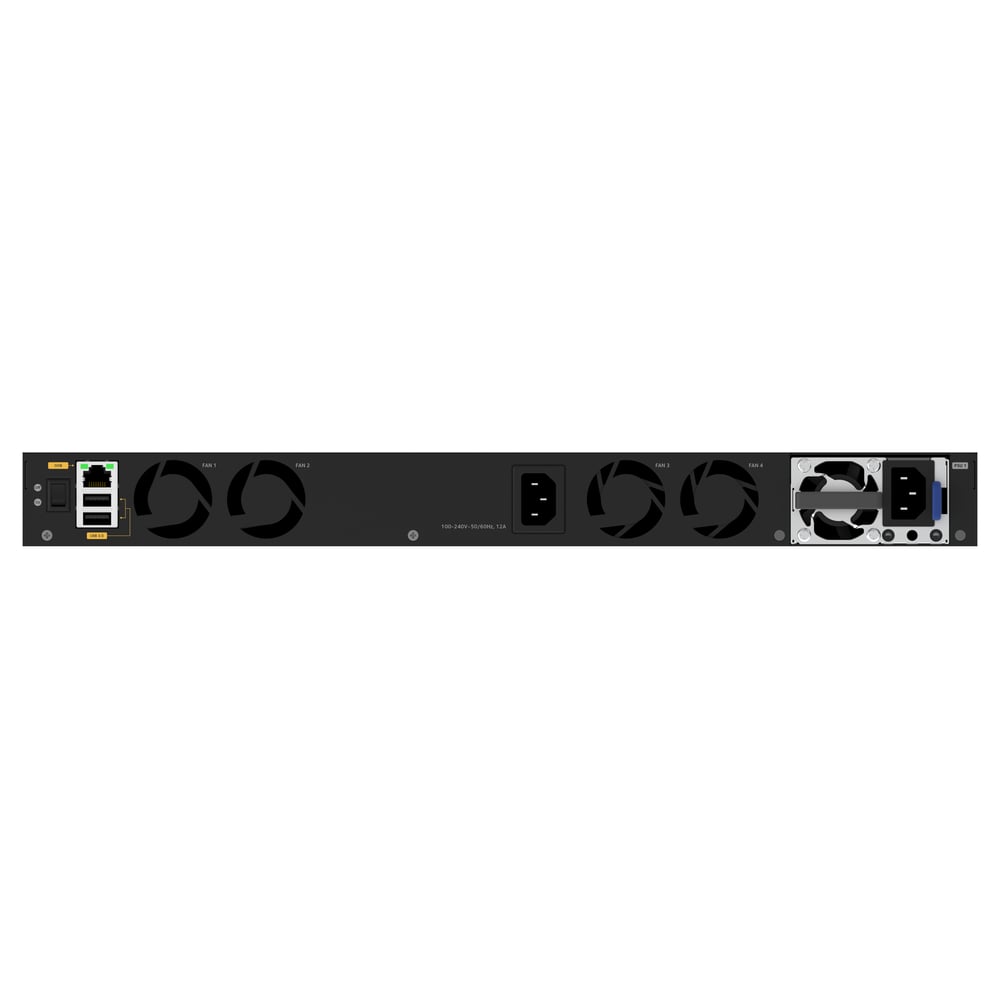

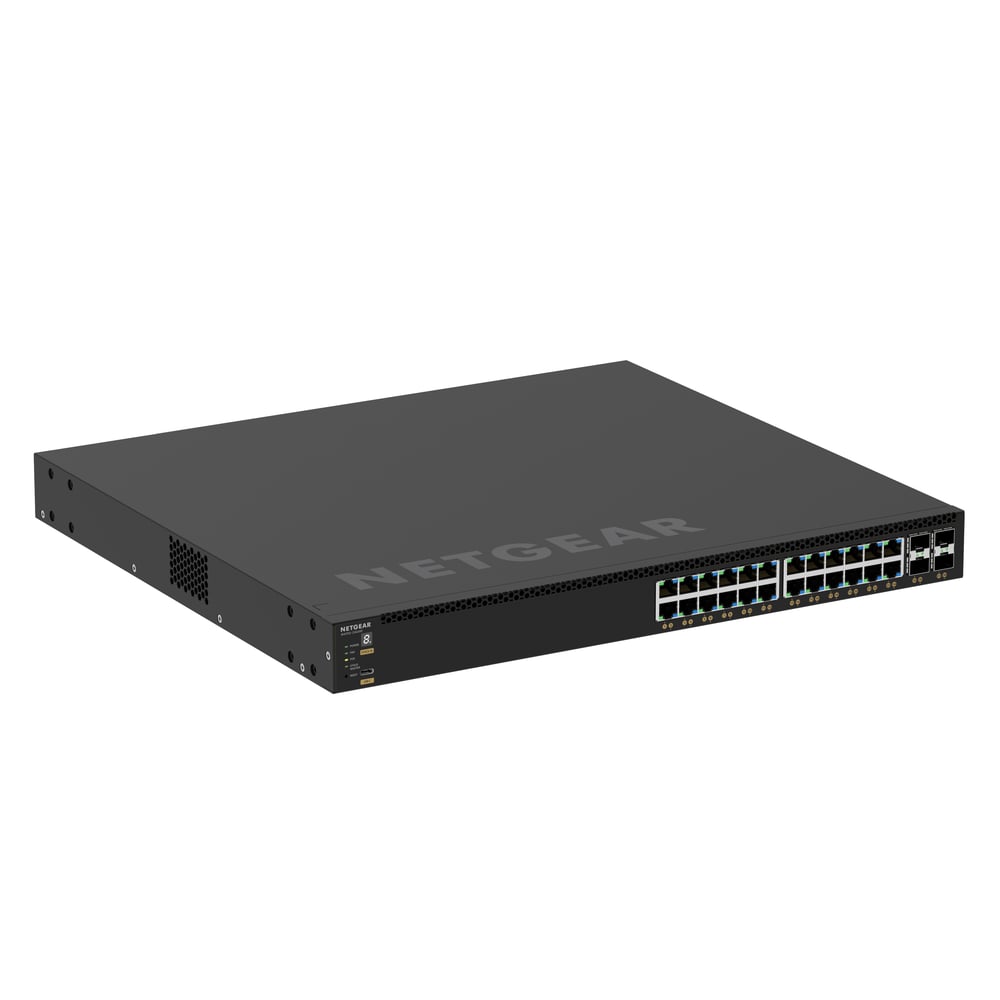

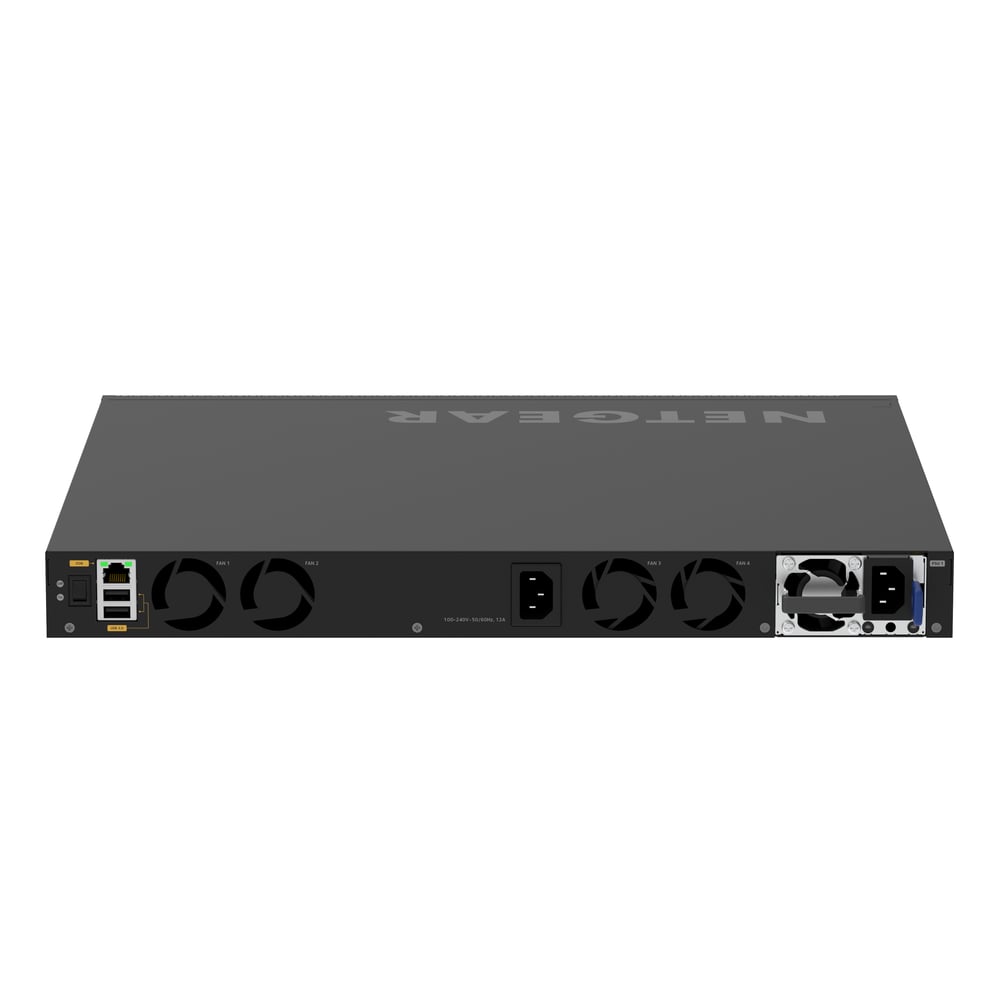

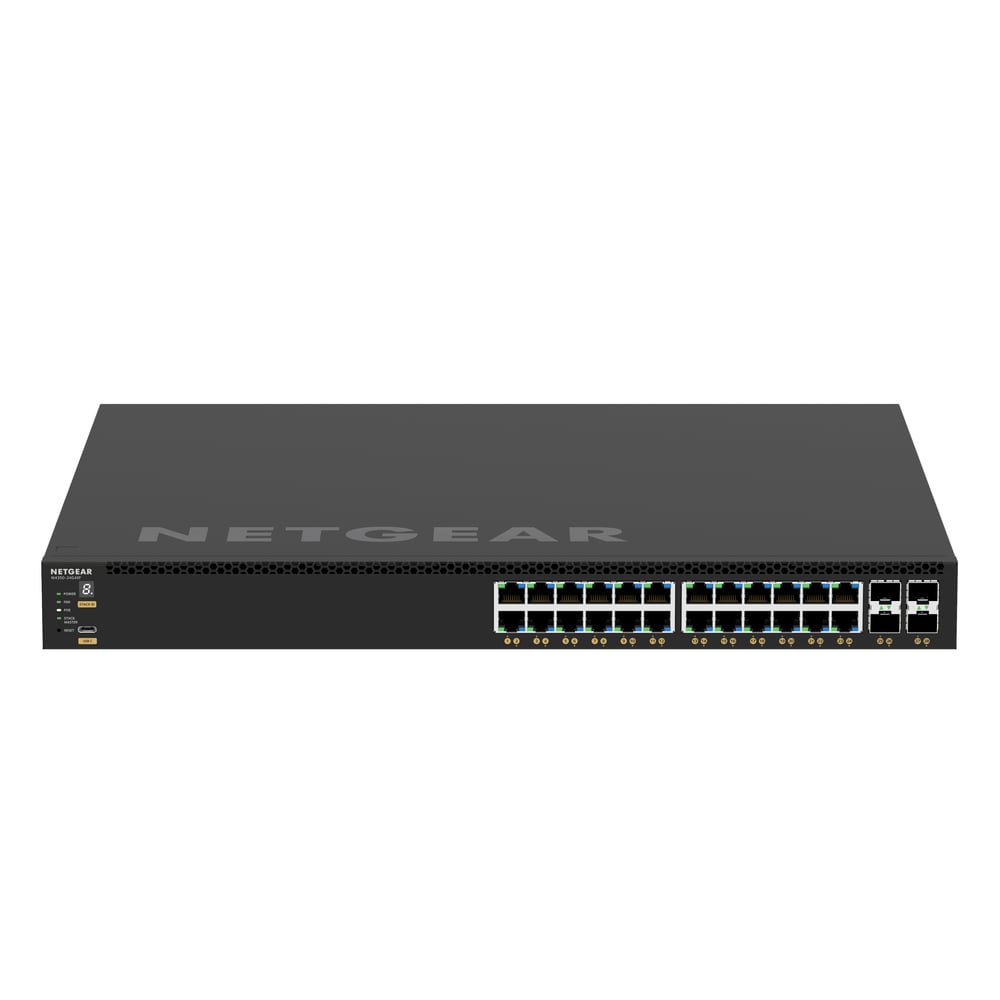

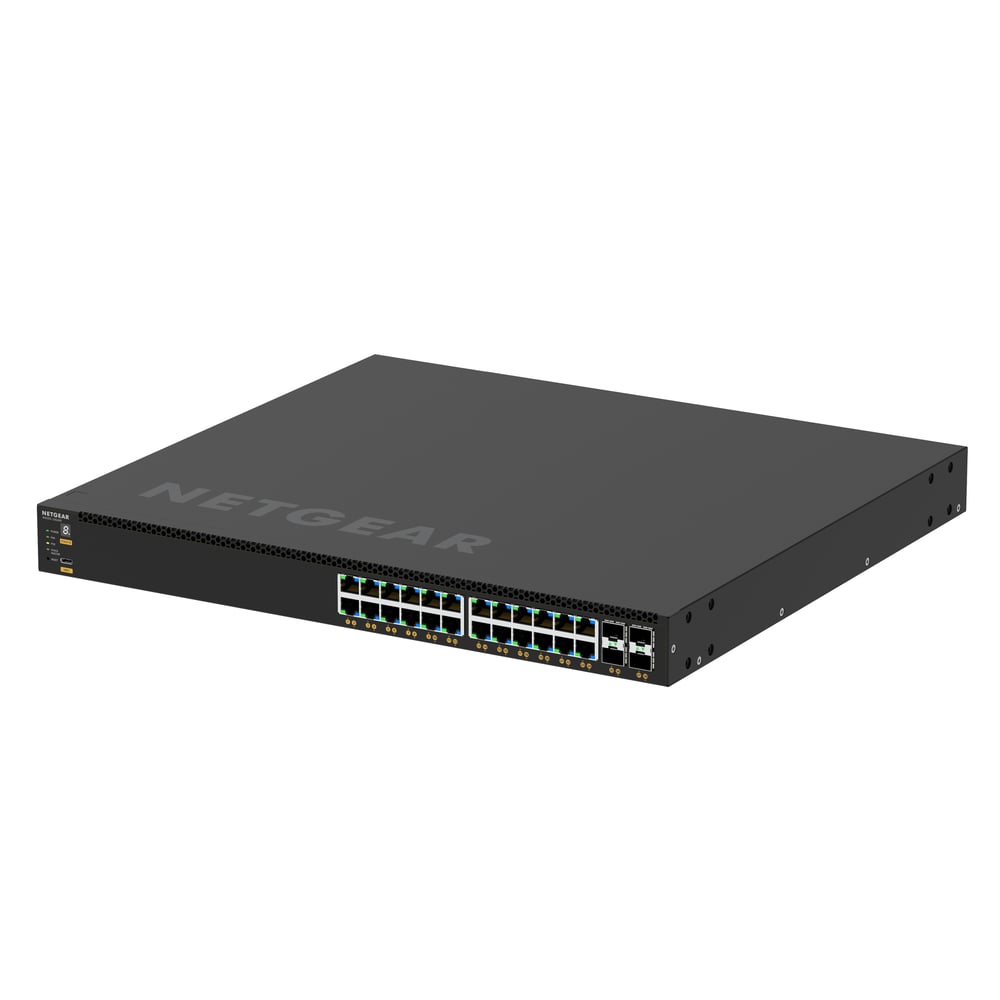

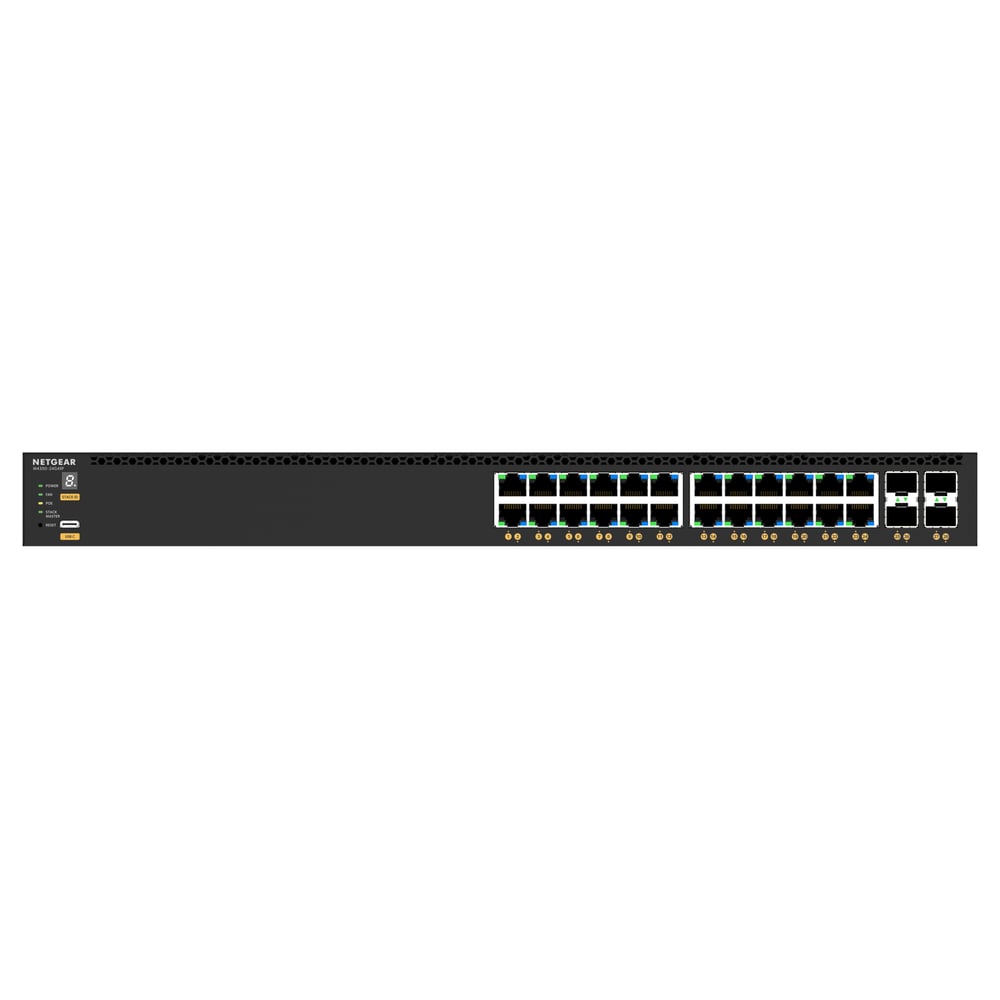

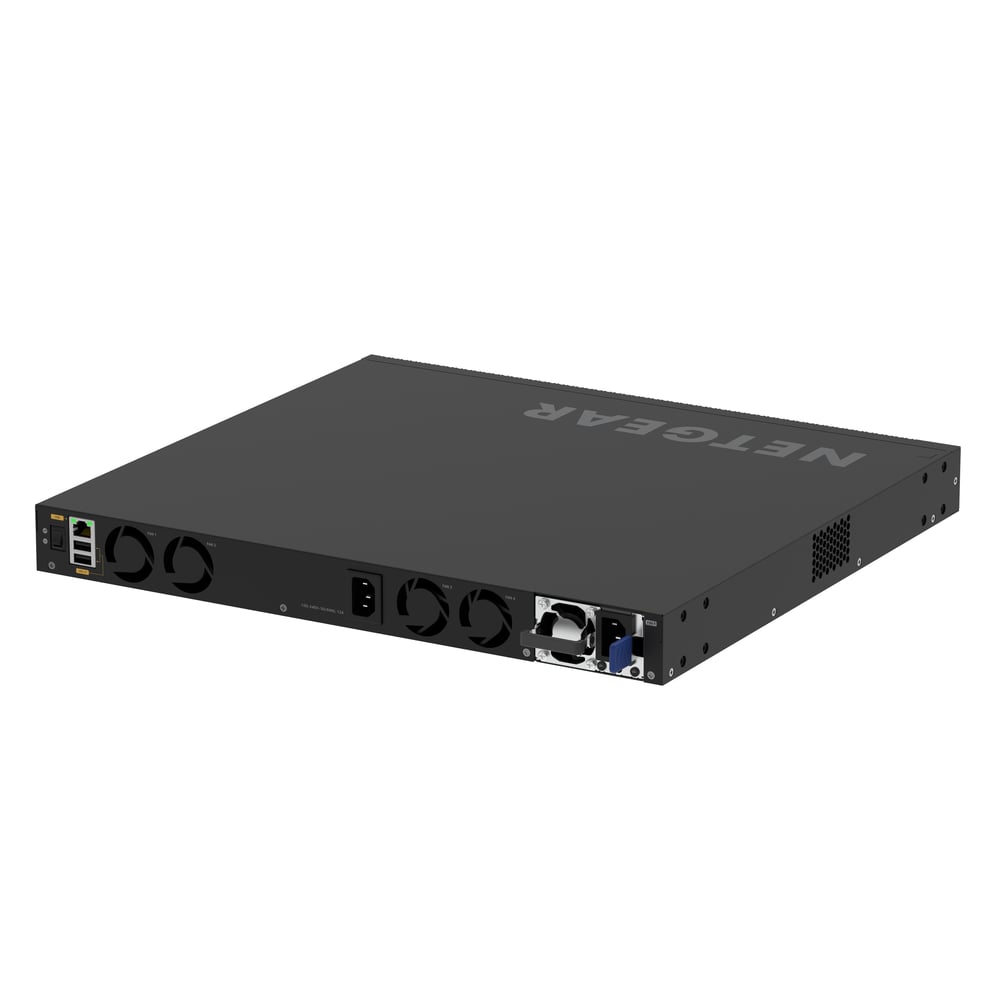

NETGEAR GSM4328-100NES 28Pt M4350-24G4Xf Managed Switch

NETGEAR GSM4328-100NES 28Pt M4350-24G4Xf Managed Switch

SoundPro Item: 203667 | Part Number: GSM4328-100NES

$2,579.99
$3,397.64 $2,579.99
Your Price Sold out
MSRP: $3,397.64 | MAP: $2,579.99

Usually ships in 5-7 business days

  • 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks.
  • 880W internal power supply providing 648W of PoE budget.
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share).
  • Any APS350W, APS600Wv2, APS920W, or APS2000W can be used.
  • The PoE budget can reach 720W, when the redundant PoE budget remains 648W.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations.
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement.
Log in or register for YOUR best price

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage Controller contain pre-configured profiles for all major audio, video, and lighting protocols.The NETGEAR M4350 series is a versatile 1G, 2.5G, 10G, 25G, and 100G solution designed for the edge, the server room, and the core. M4350 delivers nonstop forwarding stacking, spine and leaf, edge to core connectivity for AV and IT networks. In AV environments, the AV User Interface, Engage Controller and AV profiles are certified by 200+ AV manufacturers.

View full details

Specifications

'General Information
Manufacturer
Netgear, Inc
Manufacturer Part Number
GSM4328100NES
Brand Name
Netgear
Product Line
AV Line
Product Series
M4350
Product Model
M4350-24G4XF
Product Name
AV Line M4350-24G4XF Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
24
Uplink Port
Yes
Modular
Yes
Network (RJ-45)
Yes
Port/Expansion Slot Details
24 x Gigabit Ethernet PoE+
4 x 10 Gigabit Ethernet Expansion Slots
Media & Performance
Media Type Supported
Optical Fiber
Twisted Pair
Ethernet Technology
10 Gigabit Ethernet
Gigabit Ethernet
Network Technology
10GBase-X
10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots
4
Expansion Slot Type
SFP+
Number of SFP+ Slots
4
Network & Communication
Layer Supported
3
Networking Standards
IEEE 802.3bt
IEEE 802.3af
IEEE 802.3at
IEEE 802.1as
IEEE 802.1Qav
IEEE 802.1Qat
IEEE 802.1ak
IEEE 802.3az
IEEE 802.3ad
IEEE 802.1AX
IEEE 802.1s
IEEE 802.1w
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1BA
Management & Protocols
Manageable
Yes
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
648 W
Input Voltage
120 V AC
230 V AC
Frequency
50 Hz
60 Hz
Power Source
Power Supply
AC
PoE+
Redundant Power Supply Supported
Yes
Number of Power Supplies Supported
2
Number of Power Supplies Installed
1
Power Consumption
240 W
Plug/Connector Type
C14
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Table Top
Miscellaneous
Package Contents
AV Line M4350-24G4XF Ethernet Switch Power Cord(s) USB Type-C To USB-A 2.0 Console Cable Rubber Caps For The SFP+/SFP28/QSP28 Sockets Rubber Footpads For Tabletop Installation Installation Guide Rackmounting Standard Brackets Longer Brackets For Recessed Mounting
Application/Usage
Enterprise
Business
Network
IP Phone
VoIP Phone
Environmentally Friendly
Yes
Environmental Certification
RoHS
WEEE
REACH
ErP
EuP
Warranty
Limited Warranty
Lifetime
