Neumann KH 120 II US Studio Monitor With DSP Alignment

Neumann KH 120 II US Studio Monitor With DSP Alignment

SoundPro Item: 139090 | Part Number: KH 120 II US

$949.00
$1,129.00 $949.00
Your Price Sold out
MSRP: $1,129.00 | MAP: $949.00

In stock and ready to ship

  • Phase-Linear DSP Supports Precise Monitoring
  • MA 1 Compatibility Aids Room Calibration
  • Front Ports Help With Flexible Placement
  • S/PDIF And XLR Fit Mixed Studio Workflows
  • Wide Dispersion Supports Stable Stereo Imaging
  • Compact Size Suits Nearfield Production Spaces
Log in or register for YOUR best price

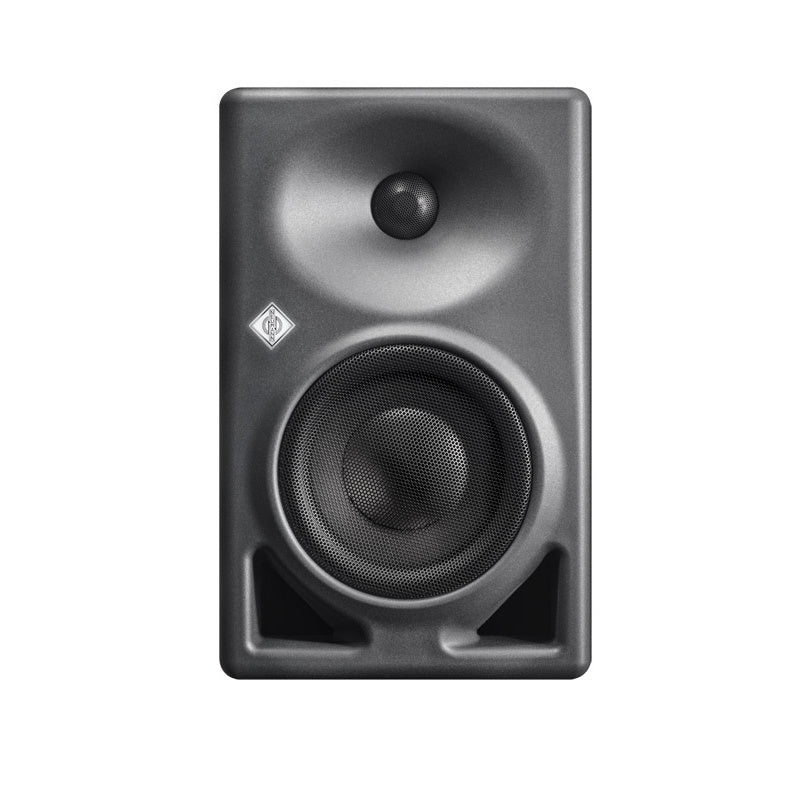

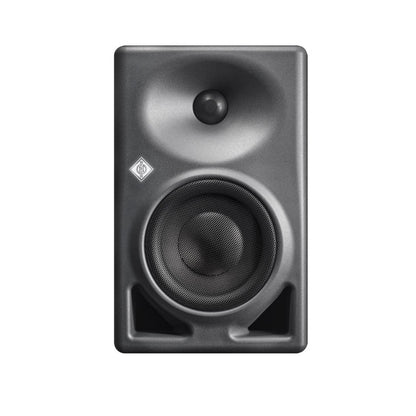

The Neumann KH 120 II US is a compact nearfield studio monitor designed for critical listening in editing suites, project studios, broadcast rooms, and mobile production setups. It builds on the established KH monitoring approach with improved low-frequency extension, higher output capability, and tighter consistency, giving engineers a reliable reference in smaller control rooms and secondary mix environments.

Its internal DSP supports phase-linear crossover behavior and room-adaptive alignment when used with Neumann MA 1 software. That makes the KH 120 II US especially useful where placement constraints or room acoustics can compromise monitoring accuracy. Analog XLR and S/PDIF connectivity allow integration into a wide range of professional workflows, from traditional interfaces to digital playback chains.

For users working at a recommended listening distance of 1 to 2 meters, this model is suited to stereo production, editing, overdub rooms, surround duties, and portable control room applications. The front-ported bass reflex design helps with practical placement, while the Mathematically Modelled Dispersion waveguide supports consistent imaging and stable monitoring across the listening area.

Downloads

View full details

Specifications

Acoustic Performance
Free field frequency response ±6 dB
41 Hz ... 21.4 kHz
Free field frequency response ±3 dB
44 Hz ... 21 kHz
Pass band free field frequency response
48 Hz … 20.5 kHz, ±1.25 dB
Free field frequency linearity deviation between 100 Hz and 10 kHz
±0.7 dB
Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced
±0.45; ±0.30; ±0.17 dB
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu)
<20 dB(A) SPL
Sine wave output with a THD < 0.5 % at 1 m in half space
95 dB SPL (>97 Hz)
Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)
116.8 dB SPL
Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)
110.8 dB SPL
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz)
105.1 dB SPL
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions
108 dB(C) SPL
Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range)
98 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer)
104 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range)
88 / 93 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer)
87 / 93 dB(C) SPL
Dolby DARDT. Max SPL fullrange
113 dB SPL
Dolby DARDT. Max SPL bass managed
119 dB SPL
Recommended Listening Distance
1.0 … 2.0 m; (3'… 6')
Feasible Listening Distance
0.75 … 4.0 m; (2'6"… 12')
Acoustical Principle
Bassreflex, Ports at the front
Inputs And Audio

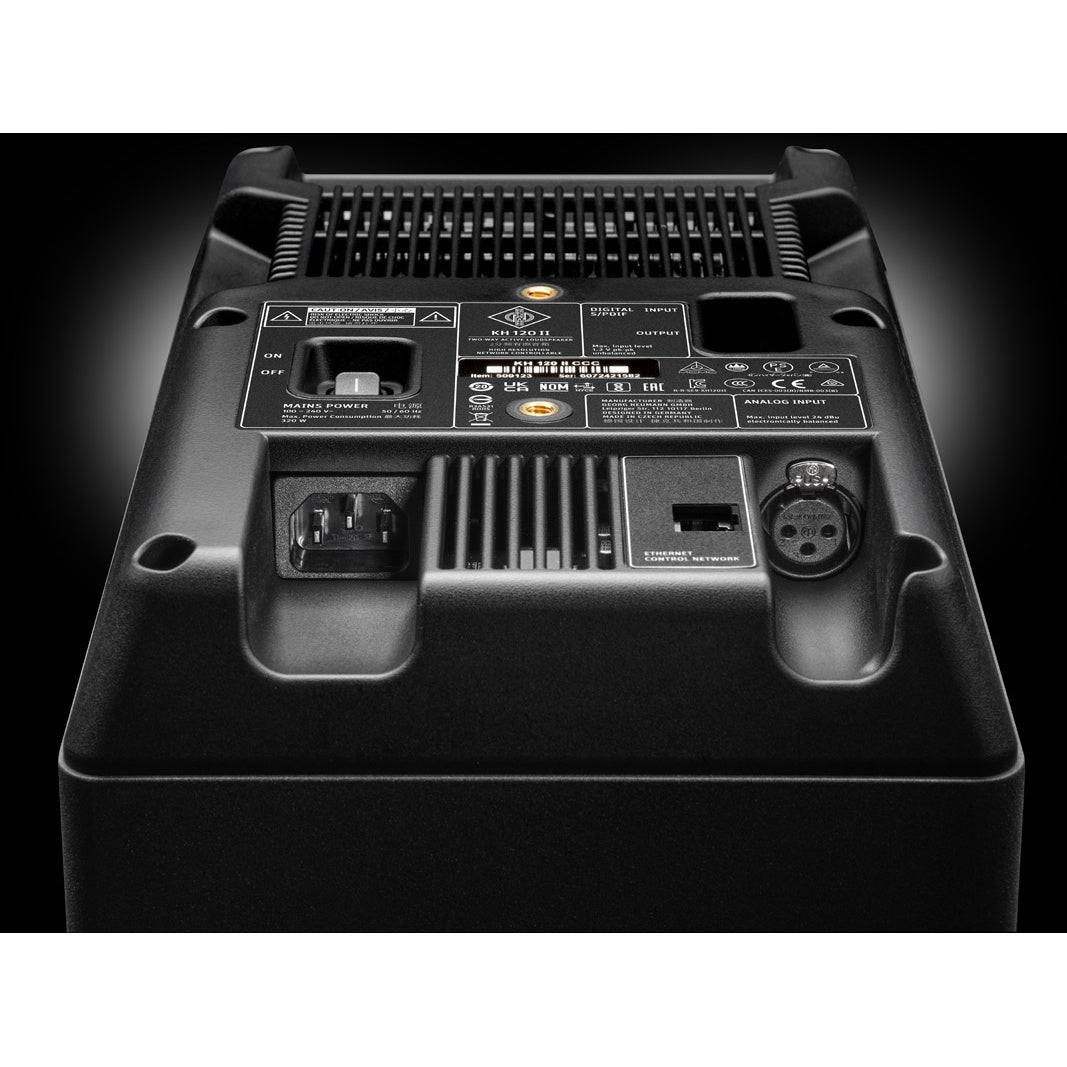

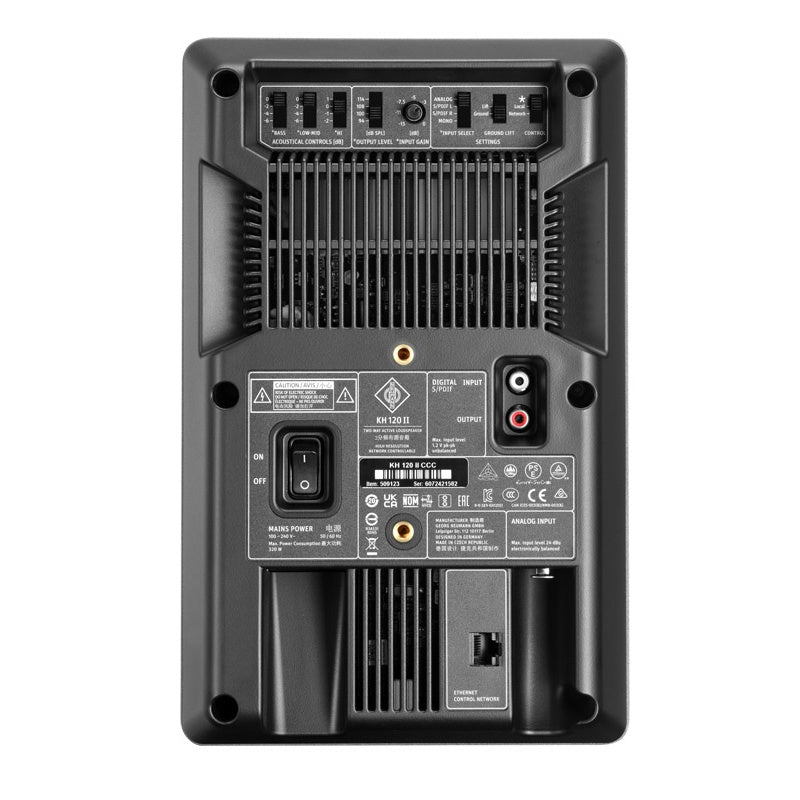

Analog input(s)
XLR: analog electronically balanced
Analog input impedance
24k Ohms
Max. input level
+24 dBu for 94 dB SPL setting; +14 dBu for 100 dB SPL setting; +9 dBu for 108 dB SPL setting; -1 dBu for 114 dB SPL setting
Common mode rejection ratio (CMRR)
>56 dB @ 15kHz
Volume control
via MA 1 software
Volume control range; resolution
0 … -∞ dB; 0.1 dB
Analog dynamic range; THD+N (A-D-A)
118 dB, A-weighted, 90 dB
Digital input(s)
RCA (75 Ω): S/PDIF
Digital output(s)
RCA (75 Ω): S/PDIF
Max. Digital Input Level; pk-pk, unbalanced / balanced
1.2 V
Digital converter: resolution; design
24 Bit
Digital converter: sampling rate
32 kHz..200 kHz
Digital internal sampling rate
48 kHz
Output sampling rate
identical to input sample rate
Dynamic range A-D
121 dB(A)
Dynamic range A-D-A (Converter)
118 dB(A)
Dynamic range D-A
121 dB(A)
Digital sensitivity
-18 dBFS = 100 dB SPL at 1 m
Latency ADA / DA
Analog Input,: 2.6 ms; SPDIF Input: 2.1 ms
Delay: User adjustable delay range
0 … 120 ms
Delay: Resolution: time; distance
20.8 µs
Delay: Max. frames Audio-video synchronisation (lip sync)
0 … 120 ms for TOF=0ms, depends on APP implmentation
Delay: Time-of-flight maximum distance
0 … 120 ms for lipsync=0ms, depends on APP implmentation

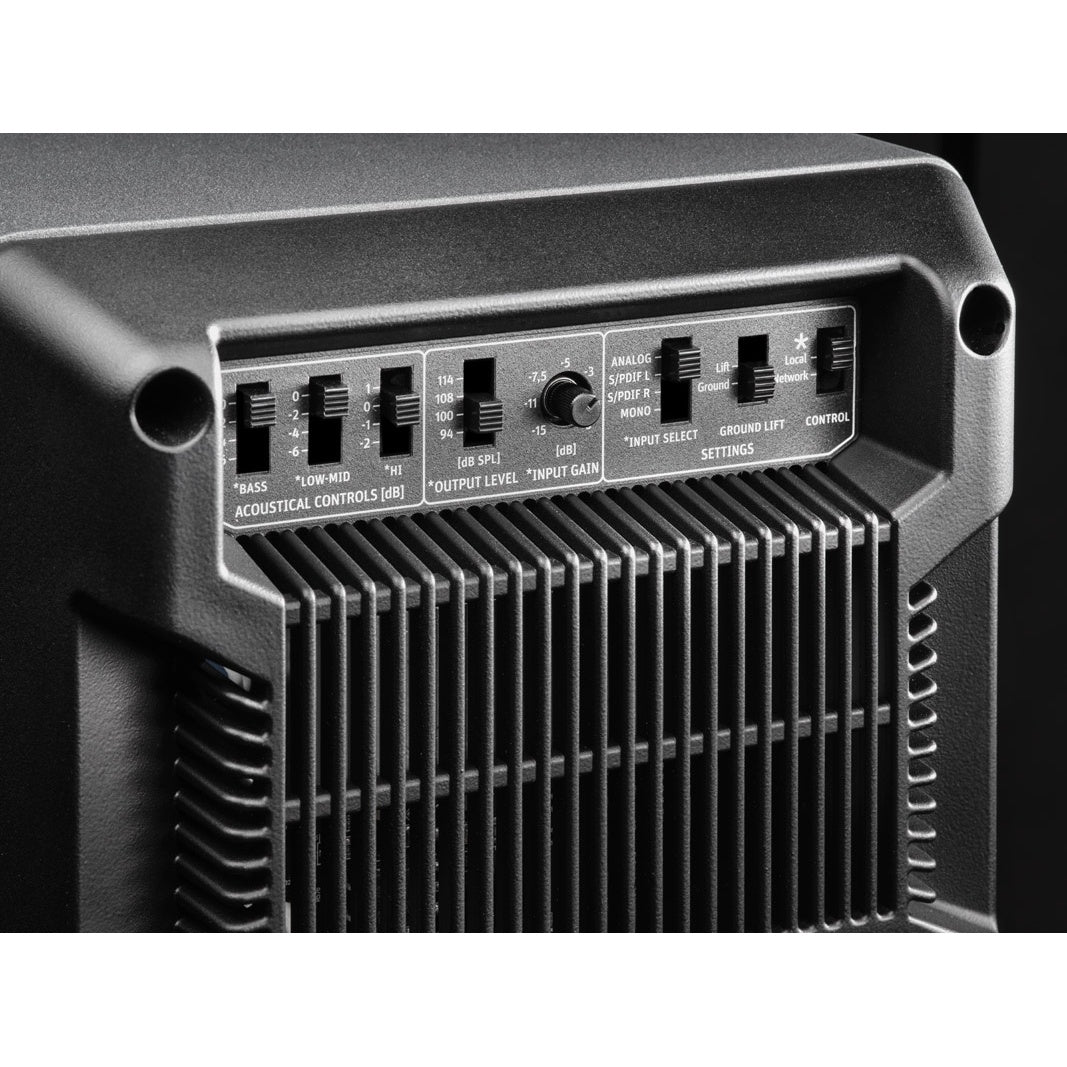

Input gain control (sensitivity)
0 dB ... -15 dB
Output level control (output level in 1 m based on 0 dBu input level)
94; 100; 108; 114 dB SPL
Input Select
Analog; S/PDIF L; S/PDIF R; Mono
Ground Lift
Yes
Control
Local; Network
DSP And Processing
Controller design
Digital; active
DSP resolution
32 Bit Audio, Processing 64 Bit double precision
Crossover frequency
1700 Hz
Crossover slope
48 dB / octave
Equalization: Bass
0; -2; -4; -6 dB
Equalization: Low-Mid
0; -2; -4; -6 dB
Equalization: Treble
+1; 0; -1; -2 dB
Equalization: via Neumann.Control software
No
Automatic room calibration via MA 1
Yes
FIR phase correction
Linear phase (120 Hz ... 16 kHz; +/- 45°)
Protection circuitry
Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
Infrasonic filter: frequency; slope
40 Hz; 12 dB / octave
Remote control
MA 1 software via an RJ45 connector carrying standard IP data
Amplification And Power
Mains Switch
Yes
Mains Voltage Select
Universal Power Supply 100 V~ … 240 V~
Output power woofer amplifier (THD+N with limiter deactivated: 10%)
145 W
Output power tweeter amplifier (THD+N with limiter deactivated: 10%)
100 W
Output power woofer amplifier (THD+N with limiter deactivated: 0.1%)
120 W
Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%)
80 W
Mains Power Supply: input voltage; frequency
100-240 V; 50/60 Hz
Power consumption (230 V / 100 V): Standby
0.3 W
Power consumption (230 V / 100 V): Idle
15 W
Power consumption (230 V / 100 V): Full output
320 W
Standby
automatic, 90 mins (default); user defined in software
Drivers And Enclosure
Woofer
130 mm; (5.25") with protecting black metal grille

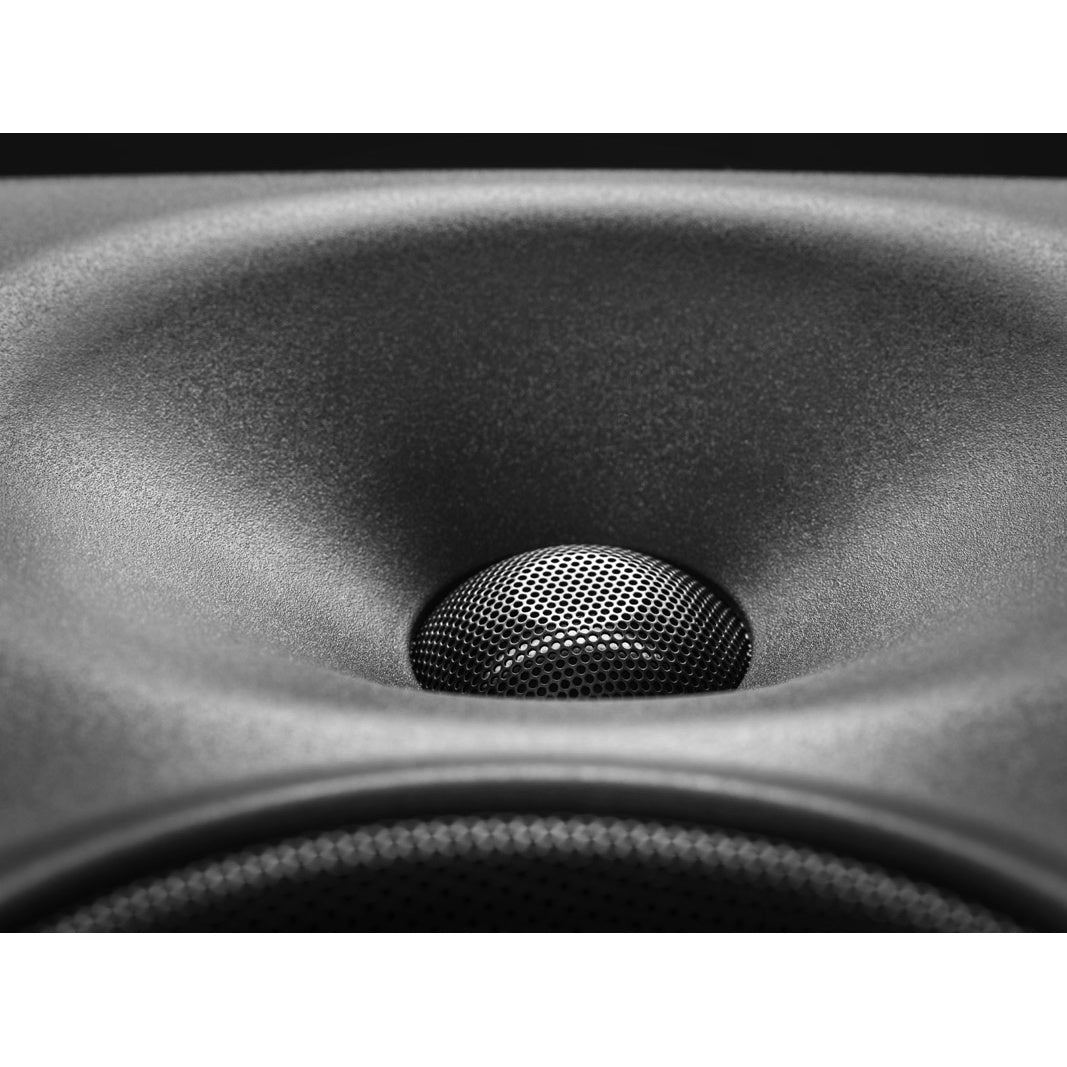

Tweeter
25 mm; (1") with protecting black metal grille
Cabinet material
Composite polycarbonate front and rear, wooden sleeve
Cabinet surface finish; color (front / back)
Painted; metallic anthracite (RAL 7021) / Black (RAL 9005)
Mounting points
2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm; (5/8”)
Internal net volume
6.0 l
External net volume
11.3 l
Dimensions And Environmental
Product dimensions (height x width x depth)
287 x 182 x 227 mm; (11.3 " x 7.16 " x 8.94")
Product weight
5.4 kg; (11 lbs 14 oz)
Packed weight
6,6 kg; (14 lbs 8 oz)
Packed dimensions (height x width x depth), mm (inches)
422 x 271 x 381 mm; (16.6 x 10.7 x 15 ")
Packed cube
0.043 m³; (1.52 ft³)
Operating conditions
+10° C to +40° C; (+50° F to +104° F); <75% RH, non-condensing
Transport/storage conditions
-25° C to +60° C; (-13° F to 140° F); <90% RH; non-condensing
Acoustical Axis horizontal
91 mm; (3.6 ")
Acoustical Axis vertical (from bottom)
166 mm; (6.5 ")
