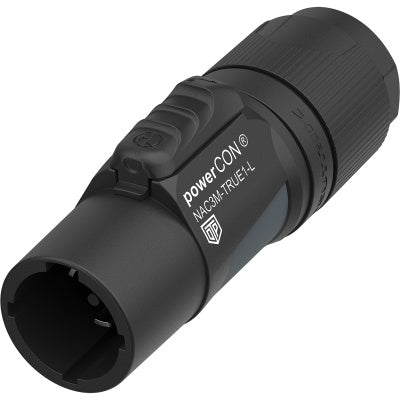

Neutrik NAC3M-TRUE1-L PowerCON TRUE1 Locking Cable Connector

Neutrik NAC3M-TRUE1-L PowerCON TRUE1 Locking Cable Connector

SoundPro Item: 151670 | Part Number: NAC3M-TRUE1-L

$10.82
$12.08 $10.82
Your Price Sold out
MSRP: $12.08 | MAP: $10.82

In stock and ready to ship

  • CBC Design Supports Live Power Handling
  • Twist Lock Interface Helps Prevent Accidental Disconnects
  • Sealed Housing Suits Harsh AV Environments
  • UV-Resistant Build Supports Outdoor Deployment
  • Strain Relief Secures Approved Cable Diameters
Log in or register for YOUR best price

The Neutrik NAC3M-TRUE1-L is a powerCON TRUE1 locking cable connector built for professional AV, live production, and installed power distribution where a dependable mains connection matters. Designed for harsh and demanding environments, it uses high-impact UV-resistant materials and a sealed construction suited to applications that need a more secure alternative to standard appliance couplers.

For rental inventory, event power looms, outdoor production systems, and installed rigs exposed to repeated handling, this connector supports safer connection management through its twist-lock design and true mains connector format with breaking capacity. That makes it well suited for workflows where connectors may need to be connected or disconnected under load or live, while maintaining the mechanical confidence expected in professional power infrastructure.

The NAC3M-TRUE1-L also supports practical field use with Neutrik’s locking bushing and strain relief system for specified cable diameters, helping crews build reliable power assemblies for touring, staging, broadcast, and fixed AV deployment. With broad agency certifications and strong environmental protection when mated or capped, it fits demanding applications where durability, secure retention, and service-ready handling are priorities.

Downloads

View full details

Specifications

Electrical
Contact resistance
≤ 2 mΩ
Dielectric strength
4 kVdc / 2.8 kVac
Insulation resistance
>0.1GΩ (after damp and heat test IEC 68-2-30)
Number of electrical contacts
2 + PE
Rating Europe
16 A / 250 V AC according to EN IEC 60320-1
Rating America
20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 20A/ 250 V AC according to UL 498
Mechanical
Cable O.D.
10 - 16 mm (0.39 – 0.63 inches)
Lifetime
> 5000 mating cycles
Wiresize (mm²)
1.5 – 2.5mm²
Wiresize (AWG)
14 - 12 AWG
Material
Contact plating
2 μm Ag
Locking element
Polyamide (PA 66)
Contacts
Copper Alloy
Insert
Polyamide (PA 66)
Shell
Polyamide (PA 66)
Strain relief
Polyketon
Environmental
Flammability
UL 94 V-0
Protection class
IP 65 / 67 (mated or with closed caps)
UV resistance
F1 rated material withstands UV exposure
Temperature range
-30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1
