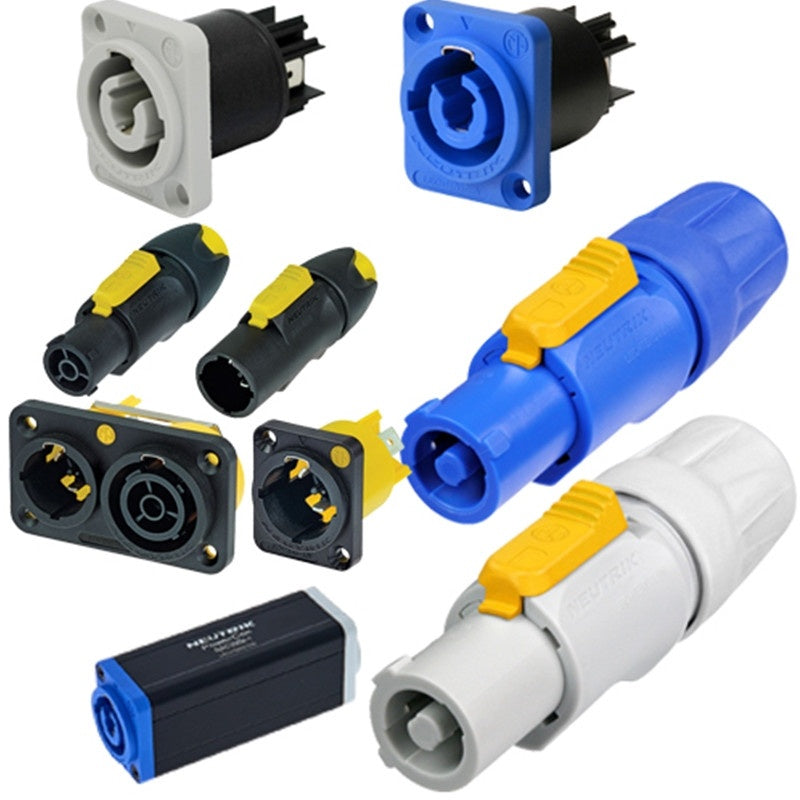

Neutrik NAC3MPXXA powerCON XX Series Panel Mount Receptacle | Power In (Blue)
Neutrik NAC3MPXXA powerCON XX Series Panel Mount Receptacle | Power In (Blue)
SoundPro Item: 138842 | Part Number: NAC3MPXXA
Usually ships in 5-7 business days
- Twist-Lock Latching System Prevents Accidental Disconnection During Live Operation
- Distinct Color Keying Eliminates Risk Of Intermating Power-In And Power-Out Connectors
- CBC Design Allows Safe Engagement And Disengagement Under Load Or Live
- Drop-In Replacement For NAC3MXXA And Mates To NAC3FXXA Cable Connectors
- Suitable For Fire Enclosures Per IEC 62368-1 For Safe Installed Environments
- Three-Contact Configuration Provides Line, Neutral, And Premating Safety Ground
- Stainless Steel Locking Element And Silver-Plated Contacts Ensure Long-Term Reliability
The powerCON XX Series panel mount receptacle is engineered for production touring rigs, installed AV systems, and broadcast infrastructure where secure, reliable mains connections cannot be left to chance. It replaces standard appliance couplers in any application demanding a positive locking mechanism to prevent accidental disconnection under load, and its distinct power-in and power-out keying eliminates the risk of intermating between inlet and outlet connectors on the same rack or enclosure.
Designed to meet the requirements of IEC 60320-1 and UL 60320-1 with Circuit Breaking Capacity, these connectors are rated for repeated live or loaded engagement and disengagement — a critical capability for touring engineers and system integrators who need to connect and disconnect powered equipment during tight changeovers. Compatibility with the FXX Series cable connectors and plug connectors ensures a complete, certified power distribution ecosystem from a single manufacturer.
The polyamide PA 6.6 shell, stainless steel locking element, and silver-plated copper alloy contacts are specified for environments where mechanical durability and electrical reliability matter: permanent installs inside fire enclosures per IEC 62368-1, portable power distribution boxes, and touring stage equipment alike. Rated for over 5000 mating cycles and tested across a wide temperature range, this connector is built to outlast the equipment it powers.
