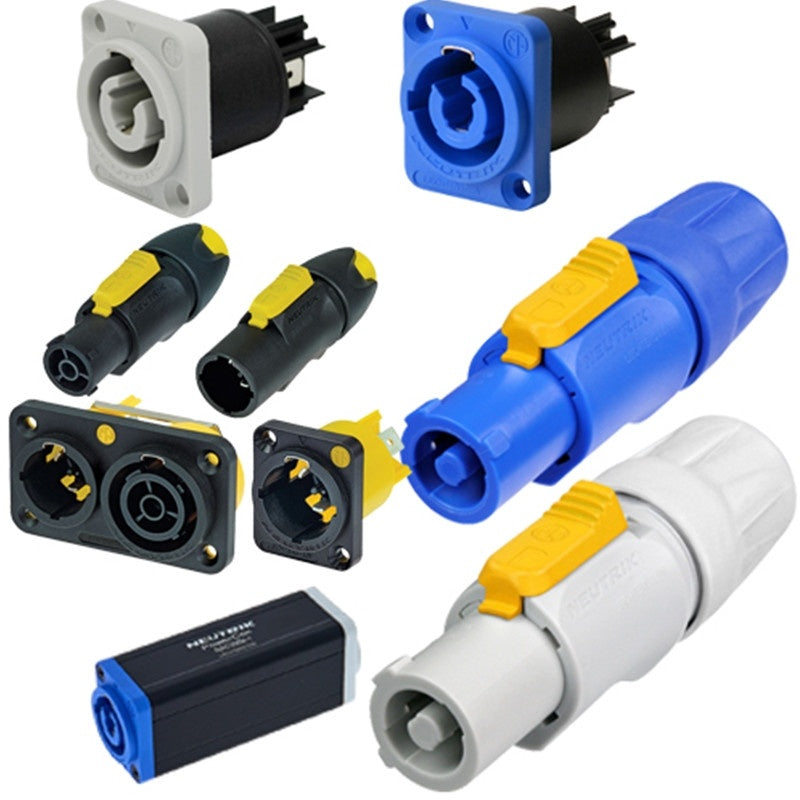

Neutrik NAC3MPXXB powerCON XX Series Panel Mount Receptacle | Power Out (Grey)

Neutrik NAC3MPXXB powerCON XX Series Panel Mount Receptacle | Power Out (Grey)

SoundPro Item: 138843 | Part Number: NAC3MPXXB

$3.88
$4.33 $3.88
Your Price Sold out
MSRP: $4.33 | MAP: $3.88

Usually ships in 5-7 business days

  • Twist-Lock Latching System Prevents Accidental Disconnection During Live Operation
  • Distinct Color Keying Eliminates Risk Of Intermating Power-In And Power-Out Connectors
  • CBC Design Allows Safe Engagement And Disengagement Under Load Or Live
  • Drop-In Replacement For NAC3MXXA And Mates To NAC3FXXA Cable Connectors
  • Suitable For Fire Enclosures Per IEC 62368-1 For Safe Installed Environments
  • Three-Contact Configuration Provides Line, Neutral, And Premating Safety Ground
  • Stainless Steel Locking Element And Silver-Plated Contacts Ensure Long-Term Reliability
Log in or register for YOUR best price

The powerCON XX Series panel mount receptacle is engineered for production touring rigs, installed AV systems, and broadcast infrastructure where secure, reliable mains connections cannot be left to chance. It replaces standard appliance couplers in any application demanding a positive locking mechanism to prevent accidental disconnection under load, and its distinct power-in and power-out keying eliminates the risk of intermating between inlet and outlet connectors on the same rack or enclosure.

Designed to meet the requirements of IEC 60320-1 and UL 60320-1 with Circuit Breaking Capacity, these connectors are rated for repeated live or loaded engagement and disengagement — a critical capability for touring engineers and system integrators who need to connect and disconnect powered equipment during tight changeovers. Compatibility with the FXX Series cable connectors and plug connectors ensures a complete, certified power distribution ecosystem from a single manufacturer.

The polyamide PA 6.6 shell, stainless steel locking element, and silver-plated copper alloy contacts are specified for environments where mechanical durability and electrical reliability matter: permanent installs inside fire enclosures per IEC 62368-1, portable power distribution boxes, and touring stage equipment alike. Rated for over 5000 mating cycles and tested across a wide temperature range, this connector is built to outlast the equipment it powers.

Downloads

View full details

Specifications

Certifications
IEC 60320-1
Yes
UL 60320-1 (cUL)
Yes
UL USA 498
Yes
UL CA 498
Yes
UL-1977
Yes
CAN/CSA-C22.2 No. 182.3
Yes
IEC 62368-1 Fire Enclosure
Suitable
Electrical
Contact Resistance
≤ 2 mΩ
Dielectric Strength
4 kVdc / 2.8 kVac
Insulation Resistance
> 1 GΩ (after damp heat test IEC 68-2-30)
Number Of Electrical Contacts
2 + PE
Rating Europe
EN 60320-1: 16 A 250 V AC
Rating USA / Canada
cUL 60320-1: 20 A 127 V AC / UL USA 498: 20 A 127 V AC / UL CA 498: 20 A 127 V AC
Construction
Shell Material
Polyamide (PA 6.6)
Contact Material
Copper Alloy
Contact Plating
Ag (Silver)
Locking Element
Stainless Steel
Flammability Rating
UL 94 V-0
Gender
Male
Performance
Mechanical Lifetime
> 5000 mating cycles
Wire Size
2.5 mm² / 12 AWG
Environmental
Protection Class
IP 20
Temperature Range
-30 °C to +80 °C
Identifiers
Color
Grey
Power Direction
Power Out
