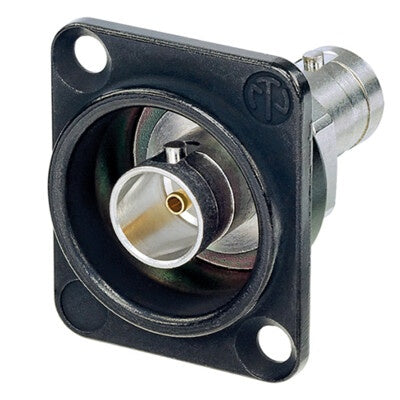

Neutrik NBB75DFGB BNC 75 Ohm Feedthrough Receptacle | D-Shape | Grounded | Black

Neutrik NBB75DFGB BNC 75 Ohm Feedthrough Receptacle | D-Shape | Grounded | Black

SoundPro Item: 200764 | Part Number: NBB75DFGB

$12.09
$13.50 $12.09
Your Price Sold out
MSRP: $13.50 | MAP: $12.09

Usually ships in 5-7 business days

  • Gold Plated Cage Type Center Contact Ensures Low Resistance Signal Continuity
  • True 75 Ω Design Maintains HD And SDI Signal Integrity At The Panel
  • Grounded Panel Mount Provides Stable Shield Reference For Video Installations
  • Recessed D-Shape Housing Protects Contact From Impact And Panel Damage
  • Bayonet Locking Mechanism Secures Mating Connectors Through Repeated Use
  • Color Coding Capability Supports Clear Signal Identification In Dense Patch Bays
Log in or register for YOUR best price

Broadcast engineers, video systems integrators, and live production technicians who need a reliable, standards-compliant BNC feedthrough point on a panel or stagebox will find this Neutrik chassis connector purpose-built for that task. The true 75 Ω design maintains signal integrity across HD, SDI, AES/EBU, and composite video formats, making it a direct choice for any installation where impedance matching is non-negotiable.

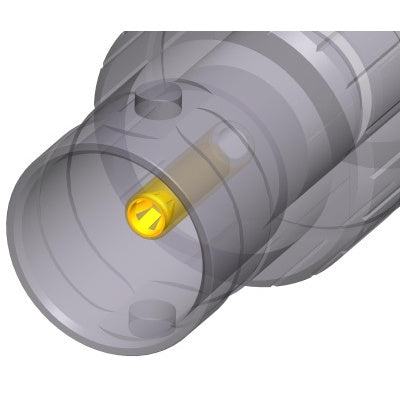

The machined brass connector body resists wear over extended daily use without abrading mating connectors, and the recessed D-shape housing — the accepted standard in the audio and broadcast industry — protects the contact from accidental impact and provides flush, clean panel integration. The gold-plated cage-type center contact ensures low contact resistance and consistent performance across hundreds of insertion cycles. Color coding capability allows straightforward signal identification in dense patch environments.

Compared to generic BNC bulkheads, this Neutrik feedthrough is engineered to meet stringent HD signal requirements with verified VSWR performance across the full bandwidth range, housed in a zinc diecast D-shape chassis with a gal black chrome finish that withstands the rigors of touring and permanent install alike.

Downloads

View full details

Specifications

Electrical
Connection Type
BNC 75 Ω
Gender
Female
Signal Type
HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Impedance
75 Ω
Contact Resistance (Inner)
≤ 3 mΩ
Contact Resistance (Outer)
≤ 2 mΩ
Dielectric Strength
1.5 kVdc
Insulation Resistance
> 5 GΩ
Rated Voltage
< 50 V
VSWR
≤1.03 / >37 dB up to 1 GHz; ≤1.05 / >32 dB up to 2 GHz; ≤1.08 / >28 dB up to 3 GHz
Mechanical
Insertion Force
< 25 N
Lifetime
> 1000 mating cycles
Locking Device
Bayonet
Mounting Direction
Front mounting
Chassis Shape
D
Construction
Contacts Material
Brass (CuZn39Pb3), 0.2 µm AuCo (center contact)
Insert Material
PTFE
Shell Material
Polyacetal (POM) (insulation shell)
Shell Plating
Optalloy
D-Shape Housing Material
Zinc diecast (ZnAl4Cu1), gal black chrome plating
Environmental
Temperature Range
-30 °C to +85 °C
Identifiers
MPN
NBB75DFGB
