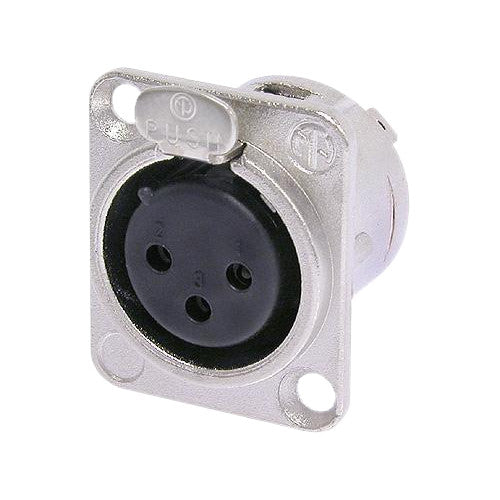

Neutrik NC3FD-L-1 XLR Female Connector

Neutrik NC3FD-L-1 XLR Female Connector

SoundPro Item: 46053 | Part Number: NC3FD-L-1.POLY

Pricing available upon request

Pricing available upon request

Your Price Sold out

In stock and ready to ship

  • 3 pole female receptacle
  • Solder cups on 3 - 7 pole version
  • Nickel housing
  • Silver contacts
  • Universal D-size metal body XLR panel mount series
  • UL recognized component
  • Standardized D sized 24 mm panel cutout
Log in or register for YOUR best price

Part of the Universal D-size metal body XLR panel mount series, the Neutrik NC3FD-L-1 XLR Female Connector's features include a 3 pole female receptacle, solder cups, silver housing, silver contacts, and UL-recognized components.

View full details
  • Title NC3FD-L-1
  • Connection Type XLR
  • Gender Female
  • Electrical
    • Capacitance between contacts: ≤ 4 pF
    • Contact resistance: ≤ 5 mΩ
    • Dielectric strength: 1,5 kVdc
    • Insulation resistance: > 2 GΩ (initial)
    • Rated current per contact: 16 A
    • Rated voltage: < 50 V
  • Mechanical
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 2.5 mm²
    • Wiresize: max. 14 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
    • Chassis shape: D
  • Material
    • Contact plating: 2 µm Ag over 2 µm Ni
    • Contacts: Bronze (CuSn8)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Steel Ck67
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
  • Environmental
    • Approvals: UL
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
