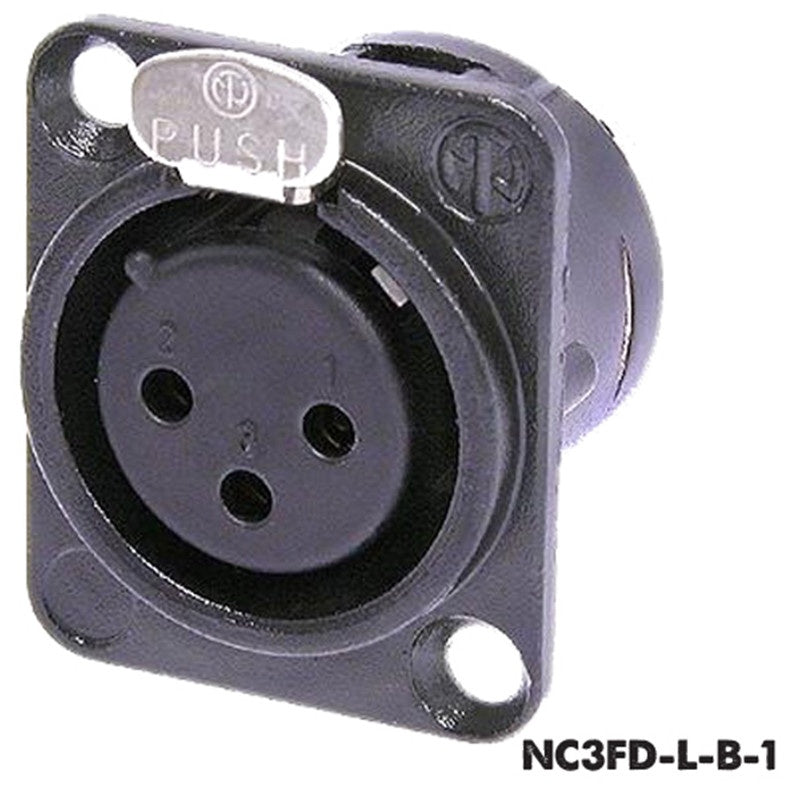

Neutrik NC3FD-L-B-1 DL1 Series 3-Pole Female XLR Panel Mount Receptacle | Black/Gold

Neutrik NC3FD-L-B-1 DL1 Series 3-Pole Female XLR Panel Mount Receptacle | Black/Gold

SoundPro Item: 203043 | Part Number: NC3FD-L-B-1

$5.13
$5.73 $5.13
Your Price Sold out
MSRP: $5.73 | MAP: $5.13

Usually ships in 5-7 business days

  • Zinc Diecast D-Shell Construction Withstands High-Cycle Install And Touring Demands
  • Latch Lock Retention Mechanism Maintains Secure Mating Under Repeated Connection
  • Solder Cup Wiring Provides Low-Resistance Termination For Permanent Installations
  • UL Recognized Component Supports Projects Requiring Third-Party Approval Documentation
  • IEC 61076-2-103 Compliance Ensures Standardized Interoperability Across Panel Systems
  • IP 40 Protection Class Rated For Indoor Install And Rack-Mount Environments
Log in or register for YOUR best price

The Neutrik DL1 Series 3-pole female XLR panel receptacle is built for audio engineers, systems integrators, and touring production crews who need a dependable, standardized panel-mount solution across stagebox builds, installed sound systems, and broadcast infrastructure. The universal D-size format drops into any 24 mm panel cutout, making it interchangeable across racks, wallplates, and custom fabrications without special tooling or adapter hardware.

Zinc diecast construction provides the mechanical rigidity expected in high-cycle touring environments, while the latch lock mechanism ensures consistent mating retention after repeated insertions. Solder cup termination gives technicians a secure, low-resistance connection point suitable for permanent installations where crimped or compression alternatives are undesirable. The polyamide insert and bronze contacts are engineered for long service life in both fixed-install and road-case applications.

UL recognition and compliance with IEC 61076-2-103 make this receptacle appropriate for projects where third-party approval documentation is required. With a rated mating cycle life exceeding 1,000 insertions and an operational temperature range spanning well beyond typical venue conditions, the DL1 series outperforms generic panel connectors in both longevity and regulatory traceability.

View full details

Specifications

Electrical
Capacitance Between Contacts
≤ 4 pF
Contact Resistance
≤ 5 mΩ
Dielectric Strength
1.5 kVdc
Insulation Resistance
> 2 GΩ (initial)
Rated Current Per Contact
16 A
Rated Voltage
< 50 V
Mechanical
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Wire Size
max. 2.5 mm² / max. 14 AWG
Wiring
Solder contacts
Locking Device
Latch lock
Chassis Shape
D
Construction
Contact Plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA 6.6 30% GR)
Locking Element
Steel Ck67
Locking Element Plating
Nickel
Shell
Zinc diecast (ZnAl4Cu1)
Shell Coating
Black KTL
Environmental
Protection Class
IP 40
Temperature Range
-30 °C to +80 °C
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Standard Compliance
IEC 61076-2-103
Certifications
Approvals
UL
Identifiers
MPN
NC3FD-L-B-1
