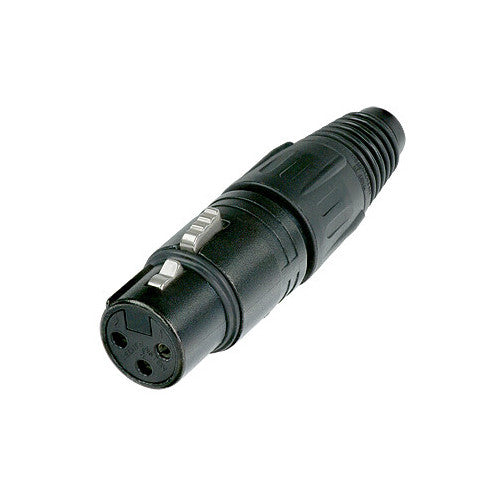

Neutrik NC3FX-BAG 3-Pin Female Cable Connector

Neutrik NC3FX-BAG 3-Pin Female Cable Connector

SoundPro Item: 60256 | Part Number: NC3FX-BAG

$7.75
$7.75 $7.75
Your Price Sold out
MSRP: $7.75 | MAP: $7.75

In stock and ready to ship

  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
  • Colored rings and boots available for coding and marking
  • UL recognized components
Log in or register for YOUR best price

3 pole female cable connector, black metal housing and silver contacts. The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

View full details

Specifications

Certifications
Approvals
UL
Electrical
Capacitance Between Contacts
≤ 4 pF
Contact Resistance
≤ 3 mΩ
Dielectric Strength
1,5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current per Contact
16 A
Rated Voltage
< 50V
Construction
Boot
Polyurethan
Contact Plating
2 µm Ag over 2 µm Ni
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA66)
Locking Element
St3K32 (latch) / Ck 67 (spring)
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating
Black chromium
Strain Relief
Polyacetal (POM)
Environmental
Flammability
UL 94 V-0
Standard Compliance
IEC 61076-2-103
Protection Class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature Range
-30°C to +80°C
Identifiers
Connection Type
XLR
Gender
Female
General
Title
NC3FX-BAG
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiring
Solder contacts
Locking Device
Latch lock
