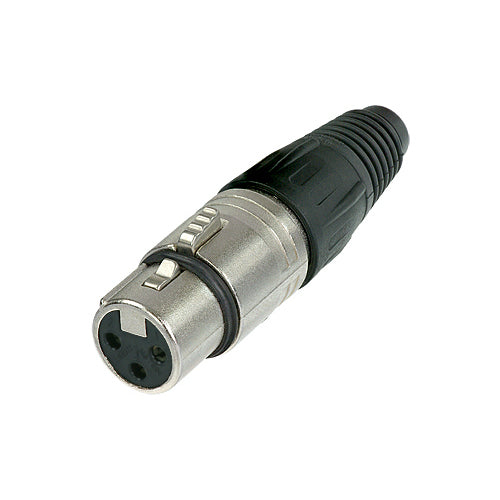

Neutrik NC3FX XLR Female Connector

Neutrik NC3FX XLR Female Connector

SoundPro Item: 46058 | Part Number: NC3FX.POLY

$7.28
$7.28 $7.28
Your Price Sold out
MSRP: $7.28 | MAP: $7.28

Usually ships in 5-7 business days

  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
  • Coloured rings and boots available for coding and marking
  • UL recognized components
Log in or register for YOUR best price

The Neutrik NC3FX is a 3 pole female cable connector with Nickel housing and silver contacts.

The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fiberglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

View full details
  • TitleNC3FX
  • Connection TypeXLR
  • GenderFemale
  • Electrical
    • Capacitance between contacts: ≤ 4 pF
    • Contact resistance: ≤ 3 mΩ
    • Dielectric strength: 1,5 kVdc
    • Insulation resistance: > 10 GΩ (initial)
    • Rated current per contact: 16 A
    • Rated voltage: < 50 V
  • Mechanical
    • Cable O.D.: 3.5 - 8.0 mm
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 2.5 mm²
    • Wiresize: max. 14 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
  • Material
    • Boot: Polyurethan
    • Contact plating: 2 µm Ag over 2 µm Ni
    • Contacts: Bronze (CuSn8)
    • Insert: Polyamide (PA66)
    • Locking element: St3K32 (latch) / Ck 67 (spring)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
    • Strain relief: Polyacetal (POM)
  • Environmental
    • Approvals: UL
    • Flammability: UL 94 V-0
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
