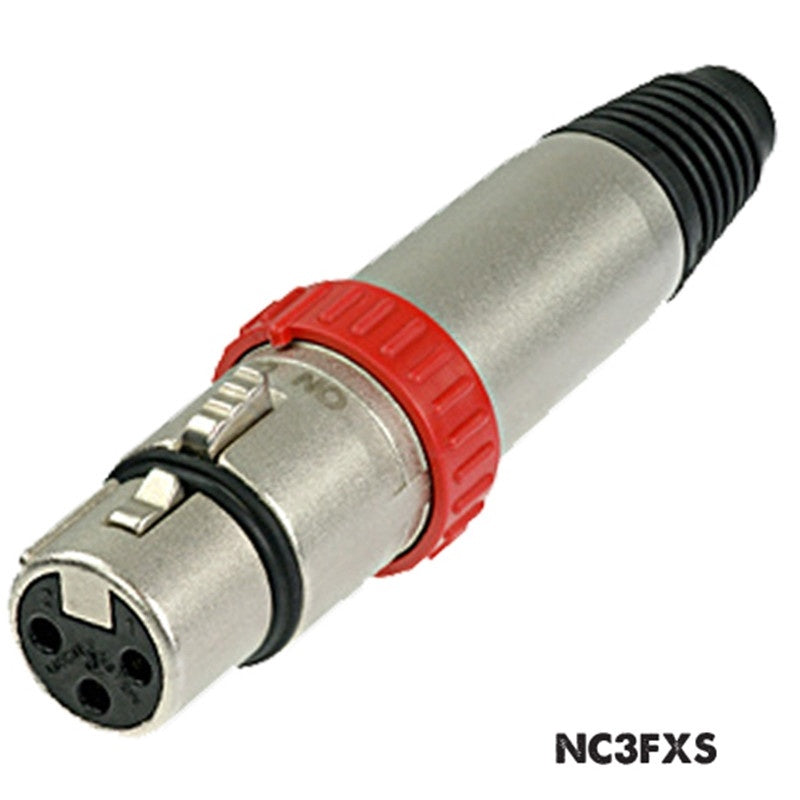

Neutrik NC3FXS X-S Series 3-Pole Female XLR Straight Cable Connector | Nickel/Gold

Neutrik NC3FXS X-S Series 3-Pole Female XLR Straight Cable Connector | Nickel/Gold

SoundPro Item: 60261 | Part Number: NC3FXS

$13.81
$15.42 $13.81
Your Price Sold out
MSRP: $15.42 | MAP: $13.81

Usually ships in 5-7 business days

  • Built-In Noiseless ON/OFF Switch Short-Circuits Contacts 2+3 For Clean Mic Muting
  • Chuck-Type Strain Relief Securely Clamps A Wide Range Of Cable Diameters
  • Rubber Gland Boot Protects Against Bending Stress At The Cable Exit
  • Zinc Diecast Shell Provides Long-Term Mechanical Durability In Field Use
  • Latch-Lock Mechanism Ensures Secure, Repeatable Mating Retention
  • Solder Contacts Deliver Stable Low-Resistance Terminations
Log in or register for YOUR best price

The Neutrik X-S Series female XLR straight cable connector is built for audio professionals who need reliable, field-serviceable cable termination across live sound, broadcast, and installed audio environments. The integrated noiseless ON/OFF switch short-circuits contacts 2 and 3, providing a clean mute function on microphones that lack a built-in switch — a practical solution for stage and broadcast mic management without signal artifacts.

Designed for the rigors of touring and installation work, this connector features a zinc diecast shell for long-term mechanical durability and a metal boot with rubber gland that resists bending stress at the cable exit point. The chuck-type strain relief system accommodates a range of cable diameters and locks securely without requiring specialized tooling. Solder contacts and a latch-lock mechanism ensure stable, low-resistance terminations that hold up through repeated connection cycles.

With an IP40 protection rating, UL 94 V-0 flammability compliance, and IEC 61076-2-103 standard conformance, this connector meets the environmental and electrical requirements expected in professional audio deployments. Its bronze contacts with gold plating over nickel deliver consistent electrical performance, making it a dependable choice over lower-grade connectors for permanent installs and road-use cable assemblies alike.

View full details

Specifications

Certifications
Protection Class
IP 40
Flammability
UL 94 V-0
Standard Compliance
IEC 61076-2-103
Solderability
Complies with IEC 60068-2-20
Electrical
Capacitance Between Contacts
≤ 4 pF
Contact Resistance
≤ 3 mΩ
Dielectric Strength
1.5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current Per Contact
16 A
Rated Voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 7.0 mm
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Wire Size
max. 2.5 mm² / max. 14 AWG
Wiring
Solder contacts
Locking Device
Latch lock
Construction
Shell Material
Zinc diecast (ZnAl4Cu1)
Shell Plating
Nickel
Contacts
Bronze (CuSn6)
Contact Plating
0.2 µm Au hard alloy over 2 µm Ni
Insert
Polyamide (PA66)
Boot
Polyurethan
Strain Relief
Polyacetal (POM)
Locking Element
St3K32 (latch) / Ck 67 (spring)
Locking Element Plating
Nickel
Environmental
Temperature Range
-30 °C to +80 °C
Identifiers
Connection Type
XLR
Gender
Female
Shell Finish
Nickel/Gold
