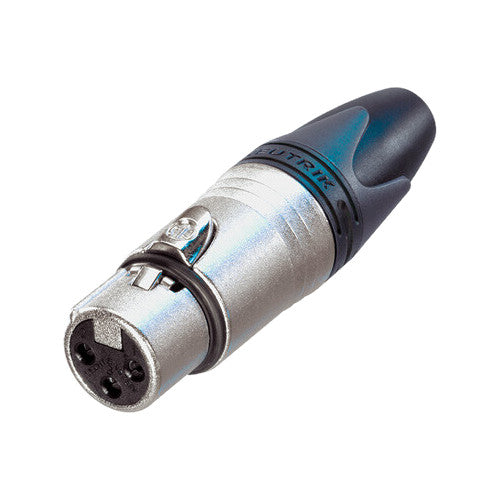

Neutrik NC3FXX Female 3-Pin XLR Connector

Neutrik NC3FXX Female 3-Pin XLR Connector

SoundPro Item: 138837 | Part Number: NC3FXX

$6.48
$6.48 $6.48
Your Price Sold out
MSRP: $6.48 | MAP: $6.48

In stock and ready to ship

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and fasterBoot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage
Log in or register for YOUR best price

Neutrik NC3FXX Female 3-Pin XLR Connector boasts a 3 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

View full details
  • Product
    • Title: NC3FXX
    • Connection Type: XLR
    • Gender: female
  • Electrical
    • Capacitance between contacts: ≤ 4 pF
    • Contact resistance: ≤ 3 mΩ
    • Dielectric strength: 1,5 kVdc
    • Insulation resistance: > 10 GΩ (initial)
    • Rated current per contact: 16 A
    • Rated voltage: < 50 V
  • Mechanical
    • Cable O.D.: 3.5 - 8.0 mm
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 2.5 mm²
    • Wiresize: max. 14 AWG
    • Locking device: Latch lock
  • Material
    • Boot: Polyurethan
    • Contact plating: 2 µm Ag
    • Contacts: Bronze (CuSn8)
    • Insert: Polyamide (PA66)
    • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
    • Strain relief: Polyacetal (POM)
  • Environmental
    • Flammability: UL 94 V-0
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30°C to +80°C
