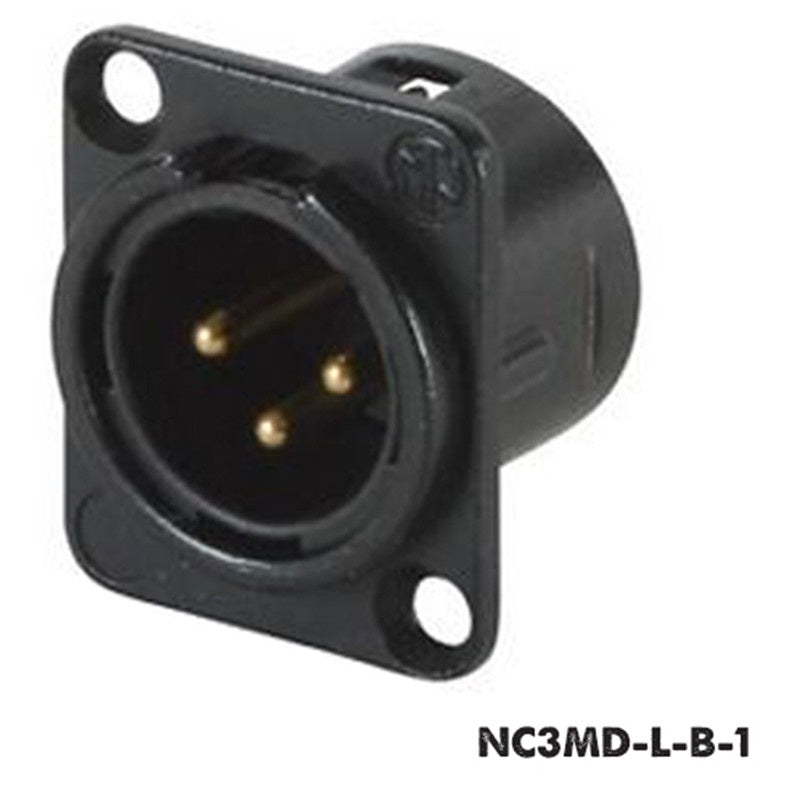

Neutrik NC3MD-L-B-1 DL1 XLR Panel Mount Receptacle | Black/Gold

Neutrik NC3MD-L-B-1 DL1 XLR Panel Mount Receptacle | Black/Gold

SoundPro Item: 203045 | Part Number: NC3MD-L-B-1

$5.12
$5.72 $5.12
Your Price Sold out
MSRP: $5.72 | MAP: $5.12

Usually ships in 5-7 business days

  • Zinc Diecast D-Shell Body Provides Structural Rigidity In Permanent And Touring Installs
  • Latch Lock Mechanism Ensures Secure Connector Retention Through Repeated Mating Cycles
  • Solder Cup Termination Allows Precise, Reliable Field Wiring For Permanent Installations
  • Front-Mounting Orientation Simplifies Integration Into Jackfields And Custom Stage Boxes
  • UL-Recognized And IEC 61076-2-103 Compliant For Commercial And Institutional AV Use
  • IP 40 Protection Class Guards Internal Contacts Against Particulate Ingress
Log in or register for YOUR best price

The Neutrik DL1 series panel mount XLR receptacle is engineered for audio system integrators, touring production crews, and broadcast facility builders who demand reliable, high-cycle wiring infrastructure. Built around a zinc diecast D-shell body, these connectors drop into a standardized panel cutout and lock securely in place, making them the practical choice for custom jackfields, stage boxes, patch bays, and installed AV systems where long-term mechanical integrity is non-negotiable.

The DL1 series carries UL recognition and conforms to IEC 61076-2-103, giving integrators the compliance documentation needed for commercial and institutional installations. A latch-lock mechanism, front-mounting orientation, and solder cup termination allow these receptacles to be built into permanent or touring infrastructure with confidence that connections will hold through repeated use in demanding environments.

Compared to consumer-grade XLR panel connectors, the DL1's brass contacts with precision plating, polyamide insert, and steel locking element represent a professional-grade bill of materials suited for signal paths that cannot tolerate degradation. Whether populating a custom snake box, building a fixed install rack, or replacing worn connectors in an existing system, the DL1 series delivers the consistency and sourcing reliability that professional AV work requires.

View full details

Specifications

Electrical
Capacitance Between Contacts
≤ 4 pF
Contact Resistance
≤ 5 mΩ
Dielectric Strength
1,5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current Per Contact
16 A
Rated Voltage
< 50 V
Mechanical
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiring
Solder contacts
Locking Device
Latch lock
Mounting Direction
Front mounting
Chassis Shape
D
Construction
Contact Plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30 % GR)
Locking Element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell Coating
Black KTL
Environmental
Protection Class
IP 40
Temperature Range
-30 °C to +80 °C
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Certifications
Approvals
UL
Standard Compliance
IEC 61076-2-103
Connectivity
Connection Type
XLR
Gender
Male
Pole Count
3
