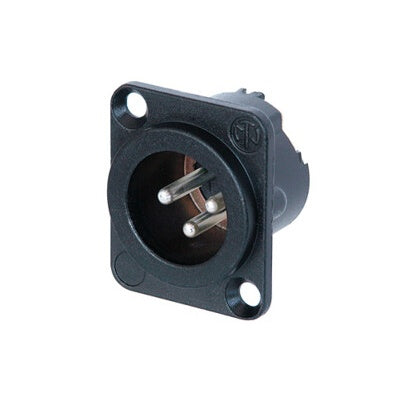

Neutrik NC3MD-LX-BAG DLX Series 3-Pin Male XLR Chassis Receptacle

Neutrik NC3MD-LX-BAG DLX Series 3-Pin Male XLR Chassis Receptacle

SoundPro Item: 151707 | Part Number: NC3MD-LX-BAG

$4.09
$4.57 $4.09
Your Price Sold out
MSRP: $4.57 | MAP: $4.09

Usually ships in 5-7 business days

  • All-Metal Housing Delivers Superior RF And Electromagnetic Shielding Versus Plastic Alternatives
  • Duplex Ground Contact Ensures Continuous Chassis-To-Cable-Connector Grounding Integrity
  • All-Metal Retention Bar Replaces Plastic Design To Increase Pull-Out Force And Durability
  • Enlarged Solder Contacts Simplify Termination And Reduce Risk Of Cold Solder Joints
  • Optional Pin 1-To-Chassis Ground Connection Provides Flexible Grounding Configuration
  • D-Style Housing Ensures Drop-In Compatibility With Industry-Standard Panel Cutouts
Log in or register for YOUR best price

The Neutrik NC3MD-LX-BAG is a DLX series 3-pin male XLR chassis receptacle designed for audio engineers, systems integrators, and production professionals who demand the highest level of electromagnetic compatibility and signal integrity at every panel connection. Its compact all-metal zinc diecast housing replaces the plastic retention bar found on conventional XLR receptacles with an all-metal version, significantly improving pull-out force and mechanical durability under the rigors of touring and installed AV environments.

Built around Neutrik's duplex ground contact system, this receptacle ensures continuous chassis-to-cable-connector grounding, making it the ideal pairing with Neutrik's EMC XLR cable connectors in installations where RF interference is a concern — broadcast racks, touring analog stage boxes, and installed system patch panels alike. The D-style housing conforms to industry-standard D-sub mounting dimensions, making it a direct drop-in replacement for existing panel cutouts without additional machining or adapters.

Solder cup termination with enlarged contact areas accommodates wire up to 2.5 mm² / 14 AWG, reducing the chance of cold joints in high-cycle installations. An optional pin 1-to-chassis ground connection adds further flexibility for grounding scheme configuration. Rated IP40 and compliant with IEC 61076-2-103, this receptacle is engineered for long-term reliability in professional signal chain infrastructure.

View full details

Specifications

Electrical
Capacitance Between Contacts
≤ 4 pF
Contact Resistance
≤ 5 mΩ
Dielectric Strength
1.5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current Per Contact
16 A
Rated Voltage
< 50 V
Mechanical
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Wire Size
max. 2.5 mm² / max. 14 AWG
Wiring
Solder contacts
Locking Device
Latch lock
Chassis Shape
D
Construction
Contact Plating
2 µm Ag
Contacts Material
Brass (CuZn35Pb2)
Insert Material
Polyamide (PA66)
Locking Element Material
Steel Ck67
Shell Material
Zinc diecast (ZnAl4Cu1)
Shell Plating
Black KTL
Environmental
Flammability
UL 94 V-0
Standard Compliance
IEC 61076-2-103
Protection Class
IP40
Solderability
Complies with IEC 68-2-20
Temperature Range
-30 °C to +80 °C
Identifiers
Product Connection Type
XLR
Product Gender
Male
