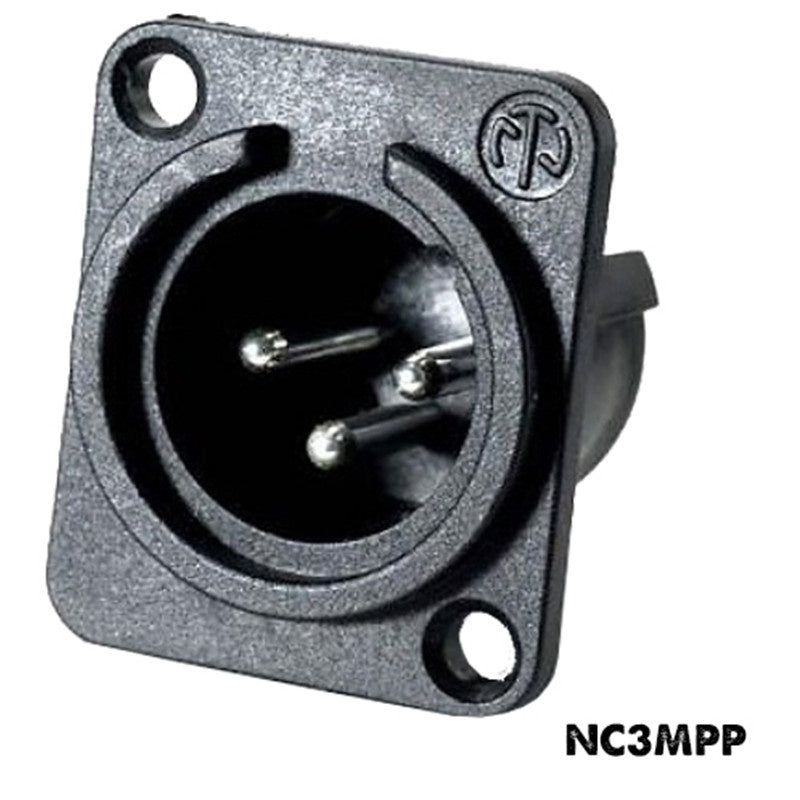

Neutrik NC3MPP 3-Pin Male XLR Chassis Mount Connector

Neutrik NC3MPP 3-Pin Male XLR Chassis Mount Connector

SoundPro Item: 60271 | Part Number: NC3MPP

$1.63
$1.82 $1.63
Your Price Sold out
MSRP: $1.82 | MAP: $1.63

In stock and ready to ship

  • Gold-Plated Solder Cup Contacts Resist Corrosion For Long-Term Signal Integrity
  • Latch Lock Retention Prevents Accidental Disconnection In Live And Installed Systems
  • Front-Mount Orientation Simplifies Panel Installation In Custom And OEM Enclosures
  • M3 Mounting Holes Provide Secure Mechanical Fit In Chassis And Enclosure Builds
  • IEC 61076-2-103 And IEC 68-2-20 Compliance Confirms Verified Electrical Performance
Log in or register for YOUR best price

The Neutrik NC3MPP is a 3-pin male XLR chassis-mount connector built for permanent panel installations in audio equipment, stage boxes, patch bays, and rack-mounted systems. Designed for integrators and equipment manufacturers who need a reliable, low-resistance signal path at the chassis level, it delivers consistent contact performance suited to professional balanced audio wiring.

The front-mount orientation simplifies installation in custom enclosures and commercial audio equipment builds, while the M3 mounting holes provide a secure mechanical fit. Gold-plated solder cup contacts ensure long-term corrosion resistance and repeatable low-contact resistance, making this connector appropriate for both touring and installed environments where re-termination is infrequent and signal integrity is non-negotiable.

Compliance with IEC 61076-2-103 and IEC 68-2-20 solderability standards distinguishes this connector from uncertified alternatives, giving system integrators and OEM builders documented assurance of electrical performance. The latch lock mechanism prevents accidental disconnection under load, a practical requirement in live production and permanent install contexts where connector integrity cannot be monitored continuously.

View full details

Specifications

Certifications
Standard Compliance
IEC 61076-2-103
Solderability Standard
IEC 68-2-20
Connectivity
Connector Type
XLR
Gender
Male
Number Of Pins
3
Locking Device
Latch Lock
Mounting Direction
Front
Chassis Shape
P
Electrical
Capacitance Between Contacts
= 4 pF
Contact Resistance
= 5 mOhm
Dielectric Strength
1.5 kVdc
Insulation Resistance (Initial)
> 2 GOhm
Insulation Resistance (After Damp Heat Test)
> 1 GOhm
Rated Current Per Contact
16 A
Rated Voltage
50 V
