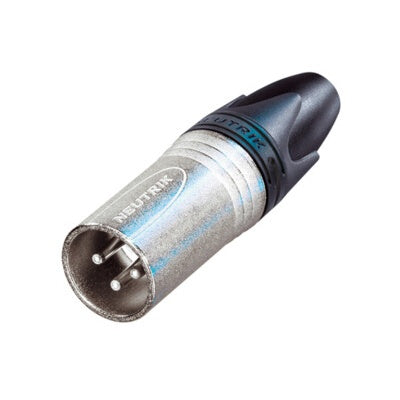

Neutrik NC3MXX-D XX XLR Cable Connector | Bulk | Nickel/Silver

Neutrik NC3MXX-D XX XLR Cable Connector | Bulk | Nickel/Silver

SoundPro Item: 60287 | Part Number: NC3MXX-D

$3.33
$3.72 $3.33
Your Price Sold out
MSRP: $3.72 | MAP: $3.33

Usually ships in 5-7 business days

  • Improved Locking Recess Without Window Increases Housing Durability
  • Chuck Type Strain Relief Enables Faster Assembly With Higher Pull-Out Force
  • Polyurethane Boot Gland Protects Cable Against Bending Stress At Entry
  • Colored Rings And Boots Available For Quick Visual Signal Chain Identification
  • Zinc Diecast Shell With Protected Internal Thread Resists Field Damage
  • Latch Lock Mechanism Ensures Secure Mating Through Repeated Connection Cycles
Log in or register for YOUR best price

Cable technicians, touring crews, and AV integrators building or restocking XLR cable inventories rely on the Neutrik XX series as the evolution of the industry-standard X series connector. Improvements to the locking recess, chuck-type strain relief, and polyurethane boot gland address the most common failure points found in high-turnover touring and install environments, reducing both assembly time and field repairs.

The zinc diecast shell and internally threaded housing resist mechanical damage during repetitive patching and rough handling on stage, in rack rooms, and across installed systems. Solder termination accommodates wire up to 14 AWG, keeping the connector compatible with a broad range of microphone, line-level, and intercom cable constructions used in live production and broadcast facilities.

For shops and techs assembling cables in volume, the XX series delivers consistent performance across more than 1,000 mating cycles, with color-coded ring and boot options available for fast visual identification in complex signal chains. The IEC 61076-2-103 compliance and UL 94 V-0 flammability rating make it appropriate for permanent installs and touring rigs alike.

View full details

Specifications

Environmental
Flammability
UL 94 V-0
Standard Compliance
IEC 61076-2-103
Protection Class
IP 40
Solderability
Complies with IEC 60068-2-20
Temperature Range
-30 °C to +80 °C
Electrical
Capacitance Between Contacts
≤ 4 pF
Contact Resistance
≤ 3 mΩ
Dielectric Strength
1.5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current Per Contact
16 A
Rated Voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Wire Size
max. 2.5 mm² / max. 14 AWG
Wiring
Solder contacts
Locking Device
Latch lock
Construction
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating
Nickel
Contacts
Brass (CuZn39Pb3)
Contact Plating
2 µm Ag
Insert
Polyamide (PA66)
Boot
Polyurethane
Strain Relief
Polyacetal (POM)
Locking Element
Zinc diecast (ZnAl4Cu1)
Identifiers
Product Title
NC3MXX
Connection Type
XLR
Gender
Male
