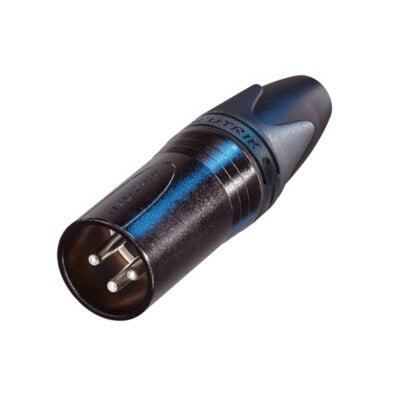

Neutrik NC3MXX-HA-BAG 3-Pin Male XLR Crimp Cable Connector

Neutrik NC3MXX-HA-BAG 3-Pin Male XLR Crimp Cable Connector

SoundPro Item: 203101 | Part Number: NC3MXX-HA-BAG

$4.33
$4.83 $4.33
Your Price Sold out
MSRP: $4.83 | MAP: $4.33

Usually ships in 5-7 business days

  • Gastight Solderless Crimp Termination Meets RoHS Compliance Standards
  • IEC 60352-2 Standard B-Crimp Compatibility Ensures Consistent Reliable Termination
  • Improved Locking Recess Without Window Increases Housing Structural Rigidity
  • Chuck Type Strain Relief Delivers Higher Pull-Out Force And Faster Assembly
  • Polyurethane Boot Gland Shields Cable Against Repeated Bending Stress
  • UL 94 V-0 Flammability Rating For Safety In Permanent Installed Environments
  • Colored Rings And Boots Available For Circuit Identification Or Stage Coding
Log in or register for YOUR best price

The Neutrik NC3MXX-HA-BAG is a 3-pole male XLR cable connector from the XX Series, designed for audio professionals and systems integrators who demand reliable, repeatable terminations in high-cycle environments. The crimp termination method eliminates soldering from the workflow, making it an efficient choice for production shops, touring cable technicians, and installed sound contractors building large harnesses under time pressure.

The connector's zinc diecast shell and locking recess design — without the traditional window cutout — add structural rigidity where cheaper connectors compromise. The improved chuck-type strain relief handles higher pull-out forces while simplifying assembly, and the polyurethane boot gland protects cable bending points in applications where cables are repeatedly routed and stored. This makes the NC3MXX-HA-BAG well-suited for touring snake assemblies, permanent theater installations, broadcast patch bays, and studio tie lines where connector integrity directly impacts signal reliability.

Rated to over 1,000 mating cycles and compliant with IEC 61076-2-103, this connector is built for the long term. Colored rings and boots are available separately for stage or rack identification, and the design is fully RoHS compliant. Requires the DIE-R-HA-1 crimp die for proper termination.

View full details

Specifications

Environmental
Protection Class
IP 40
Flammability
UL 94 V-0
Temperature Range
-30 °C to +80 °C
Standard Compliance
IEC 61076-2-103
Solderability
Complies with IEC 68-2-20
Electrical
Capacitance Between Contacts
≤ 4 pF
Contact Resistance
≤ 3 mΩ
Dielectric Strength
1.5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current Per Contact
1 A
Rated Voltage
< 50 V
Mechanical
Wire Size
24 - 22 AWG
Wire Size (mm²)
0.22 - 0.34 mm²
Cable O.D.
3.5 - 8.0 mm
Wiring Method
Crimp contacts
Locking Device
Latch lock
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Construction
Shell Material
Zinc diecast (ZnAl4Cu1)
Shell Coating
Black KTL
Contacts
Brass (CuZn39Pb3)
Contact Plating
2 µm Ag
Insert Material
Polyamide (PA66)
Boot Material
Polyurethan
Strain Relief Material
Polyacetal (POM)
Locking Element Material
Zinc diecast (ZnAl4Cu1)
Identifiers
Required Crimp Die
DIE-R-HA-1
