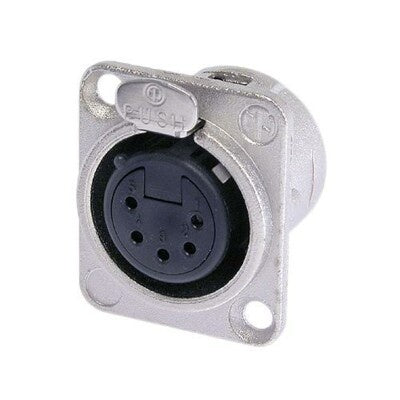

Neutrik NC5FD-L-1 DL1 Series 5-Pin Female Panel Mount XLR Receptacle | Nickel/Silver

Neutrik NC5FD-L-1 DL1 Series 5-Pin Female Panel Mount XLR Receptacle | Nickel/Silver

SoundPro Item: 60300 | Part Number: NC5FD-L-1

$10.37
$11.58 $10.37
Your Price Sold out
MSRP: $11.58 | MAP: $10.37

Usually ships in 5-7 business days

  • Zinc Diecast D-Shell Construction Withstands Demanding Touring And Install Environments
  • Latch Lock Mechanism Prevents Accidental Disconnection In Mission-Critical Signal Paths
  • Solder Cup Termination Provides Inspectable, Vibration-Resistant Connections
  • UL Recognized And IEC 61076-2-103 Compliant For Specifiable Commercial Installations
  • IP 40 Protection Class Suitable For Rack, Stage Box, And Panel Mount Applications
  • Compatible With 3- To 7-Pole DL1 Series Configurations For Flexible System Design
Log in or register for YOUR best price

The Neutrik DL1 Series 5-pin female panel mount XLR receptacle is built for systems integrators, touring production crews, and installation technicians who require consistent, repeatable connectivity in demanding environments. Its universal D-size zinc diecast shell fits any standard 24 mm panel cutout, making it directly interchangeable across stage boxes, rack enclosures, patch bays, and wall plates without custom machining or adapter hardware.

For installed audio and live production applications, the DL1 series delivers electrical performance that meets the requirements of professional signal chains: low contact resistance, high insulation resistance, and a rated current capacity suited for both analog audio and control wiring across 3- to 7-pole configurations. The solder cup termination method gives technicians precise, inspectable connections that hold up across repeated mating cycles — a critical advantage over crimp or IDC alternatives in high-vibration touring or fixed-installation scenarios.

UL recognition and compliance with IEC 61076-2-103 make this receptacle specifiable for commercial and institutional AV installations where third-party certifications are required for permitting or system documentation. The latch lock mechanism ensures secure mating and prevents accidental disconnection in mission-critical signal paths.

View full details

Specifications

Certifications
Approvals
UL
Flammability
UL 94 V-0
Standard Compliance
IEC 61076-2-103
Protection Class
IP 40
Solderability
Complies with IEC 68-2-20
Electrical
Capacitance Between Contacts
≤ 7 pF
Contact Resistance
≤ 5 mΩ
Dielectric Strength
1,5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current Per Contact
7,5 A
Rated Voltage
< 50 V
Performance
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Connectivity
Connection Type
XLR
Gender
Female
Wiring
Solder contacts
Wire Size
max. 1.0 mm² / max. 18 AWG
Locking Device
Latch lock
Chassis Shape
D
Construction
Shell Material
Zinc diecast (ZnAl4Cu1)
Shell Plating
Nickel
Contact Material
Brass (CuZn39Pb3)
Contact Plating
2 µm Ag over 2 µm Ni
Insert Material
Polyamide (PA 6.6 30 % GR) Polyamide (PA66)
Locking Element
Steel Ck67
Locking Element Plating
Nickel
Environmental
Temperature Range
-30 °C to +80 °C
