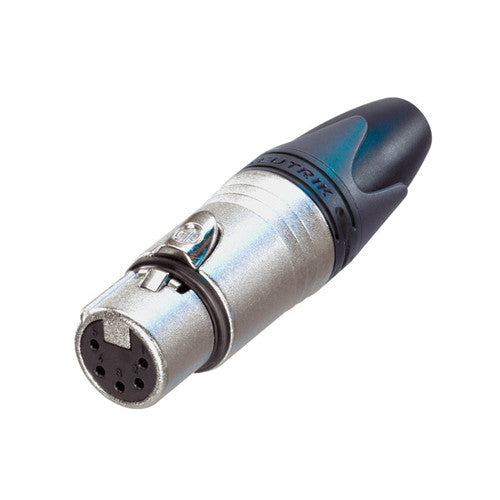

Neutrik NC5FXX 5-Pole Female Cable Connector

Neutrik NC5FXX 5-Pole Female Cable Connector

SoundPro Item: 60304 | Part Number: NC5FXX

$12.06
$12.06 $12.06
Your Price Sold out
MSRP: $12.06 | MAP: $12.06

In stock and ready to ship

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Rugged zinc diecast shell, longlasting and dependable
  • Sleek and ergonomic design - valuable and handy
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Additional ground spring contacts for better shell ground continuity
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Internal thread on shell is well protected against any damage
  • Colored rings and boots available for coding or identification (sold separately)
Log in or register for YOUR best price

The Neutrik NC5FXX 5-Pole Female Cable Connector boasts a Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

View full details
  • Connection TypeXLR
  • Genderfemale
  • Electrical
    • Capacitance Between Contacts: ≤ 7 pF
    • Contact Resistance: ≤ 3 mΩ
    • Dielectric Strength: 1,5 kVdc
    • Insulation Resistance: > 10 GΩ (initial)
    • Rated Current per Contact: 7,5 A
    • Rated Voltage: <50 V
  • Mechanical
    • Cable O.D.: 3.5 - 8 mm
    • Insertion Force: ≤ 20 N
    • Withdrawal Force: ≤ 20 N
    • Lifetime: 1000 mating cycles
    • Wiresize: max 1.0 mm²
    • Wiresize: max 18 AWG
    • Wiring: solder contacts
    • Locking Device: latch lock
  • Material
    • Boot: polyurethan
    • Contact Plating: 2 µm Ag over 2 µm Ni
    • Contacts: brass (CuZn39Pb3)
    • Insert: polyamide (PA66)
    • Locking Element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Nickel
    • Strain Relief: polyacetal (POM)
  • Environmental
    • Flammability: UL 94 V-0
    • Standard Compliance: IEC 61076-2-103
    • Protection Class: IP 40
    • Solderability: complies with IEC 68-2-20
    • Temperature Range: -22°F to 176°F (-30° to 80°C)
