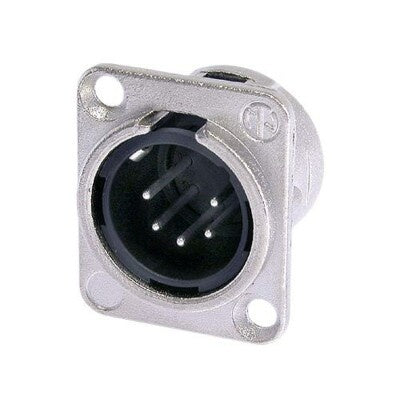

Neutrik NC5MD-L-1 DL1 Series 5-Pin Male XLR Connector | Nickel/Silver

Neutrik NC5MD-L-1 DL1 Series 5-Pin Male XLR Connector | Nickel/Silver

SoundPro Item: 60307 | Part Number: NC5MD-L-1

$8.39
$9.37 $8.39
Your Price Sold out
MSRP: $9.37 | MAP: $8.39

Usually ships in 5-7 business days

  • Robust Zinc Diecast D-Shell Provides Durable Chassis Mount Structural Integrity
  • Standardized D-Size Panel Cutout Fits Universal 24mm Chassis Openings
  • Solder Cup Termination Enables Secure, Field-Reliable Wiring Connections
  • Latch Lock Mechanism Maintains Positive Mating Through Extended Connector Lifecycle
  • UL Recognized Component Supports Compliance In Installed Audio Applications
  • IP40 Protection Class Rated For Indoor Panel And Rack Enclosure Environments
Log in or register for YOUR best price

The Neutrik DL1 Series 5-pin male XLR receptacle is engineered for systems integrators, touring production crews, and installed audio technicians who need a dependable, panel-mount connector solution. Designed around the universal D-size 24mm chassis cutout, these receptacles drop into existing panel layouts without custom machining, making them the practical choice for rack builds, stage boxes, and fixed installations alike.

With a zinc diecast shell, polyamide insert, and brass solder cup contacts plated with silver over nickel, the DL1 series delivers the mechanical and electrical consistency that professional audio infrastructure demands. The latch lock mechanism ensures secure mating through the full rated lifecycle, and UL recognition supports use in installations where compliance documentation is required. Whether wiring DMX control runs, intercom systems, or multi-pin audio applications, this connector offers the build quality and standardized footprint that integrators rely on when downtime is not an option.

View full details

Specifications

Electrical
Capacitance Between Contacts
≤ 7 pF
Contact Resistance
≤ 5 mΩ
Dielectric Strength
1.5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current Per Contact
7.5 A
Rated Voltage
< 50 V
Mechanical
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Wire Size
max. 1.0 mm² / max. 18 AWG
Wiring
Solder contacts
Locking Device
Latch lock
Chassis Shape
D
Construction
Contact Plating
2 µm Ag over 2 µm Ni
Contacts Material
Brass (CuZn39Pb3)
Insert Material
Polyamide (PA66)
Locking Element
Steel Ck67
Shell Material
Zinc diecast (ZnAl4Cu1)
Shell Plating
Nickel
Environmental
Approvals
UL
Flammability
UL 94 V-0
Standard Compliance
IEC 61076-2-103
Protection Class
IP40
Solderability
Complies with IEC 68-2-20
Temperature Range
-30 °C to +80 °C
Identifiers
Connection Type
XLR
Gender
Male
Pin Count
5
