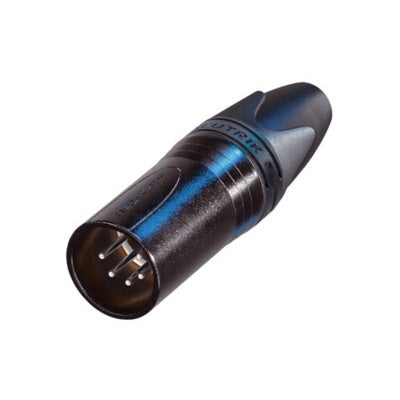

Neutrik NC5MXX-BAG 5-Pole Male XLR Connector Black Housing

Neutrik NC5MXX-BAG 5-Pole Male XLR Connector Black Housing

SoundPro Item: 60313 | Part Number: NC5MXX-BAG

$6.69
$7.47 $6.69
Your Price Sold out
MSRP: $7.47 | MAP: $6.69

Usually ships in 5-7 business days

  • Improved Locking Recess Without Window Increases Mechanical Durability Over Time
  • Chuck-Type Strain Relief Distributes Cable Stress To Protect Solder Joints
  • Polyurethane Boot Gland Seals Cable Entry Against Environmental Ingress
  • Compatible With Optional Colored Rings And Boots For Signal Path Coding
  • UL 94 V-0 Flammability Rating Meets Installation And Touring Safety Standards
  • IEC 61076-2-103 Compliance Confirms Documented Performance For System Specs
Log in or register for YOUR best price

The Neutrik NC5MXX-BAG is built for audio engineers, systems integrators, and production crews who need a dependable 5-pole male XLR termination without compromising on build quality or long-term reliability. The XX-series platform represents Neutrik's refined take on the industry-standard XLR connector, addressing weaknesses found in earlier generations through structural improvements to the locking mechanism and strain relief system.

In live touring, broadcast, and installed sound applications, connector failure is a liability. The NC5MXX-BAG's rugged zinc diecast shell and UL 94 V-0 rated flammability compliance make it suitable for permanent installations and road use alike. Chuck-type strain relief distributes cable stress evenly, reducing the risk of conductor fatigue at the solder joint — a common failure point under repeated movement or cable management loads.

For projects requiring signal path organization or color-coded patching, the connector is compatible with Neutrik's optional colored rings and boots. The IEC 61076-2-103 standard compliance and IP 40 protection class ensure this connector meets documented performance benchmarks, not just marketing claims — a requirement for integrators working to system specs or venue approval processes.

View full details

Specifications

Environmental
Protection Class
IP 40
Temperature Range
-30°C to +80°C
Flammability Rating
UL 94 V-0
Certifications
Standard
IEC 61076-2-103
Connectivity
Connection Type
XLR
Gender
Male
Contacts
5-Pole
Contact Plating
Silver (Ag)
Wiring
Solder Contacts
Construction
Housing Color
Black
Shell Material
Zinc Diecast
Strain Relief
Chuck-Type
Boot Gland
Polyurethane
Performance
Insertion/Withdrawal Force
≤20 N
Lifetime
>1000 Mating Cycles
Locking Device
Latch Lock
