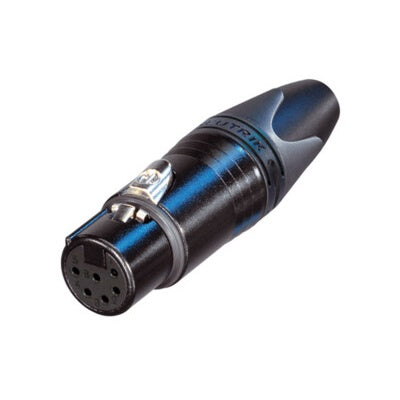

Neutrik NC6FXX-BAG 6-Pole Female XLR Cable Connector Black Silver

Neutrik NC6FXX-BAG 6-Pole Female XLR Cable Connector Black Silver

SoundPro Item: 201807 | Part Number: NC6FXX-BAG

$9.43
$10.53 $9.43
Your Price Sold out
MSRP: $10.53 | MAP: $9.43

Usually ships in 5-7 business days

  • Improved Locking Recess Eliminates Window Cutout For Greater Shell Rigidity
  • Chuck-Type Strain Relief Secures A Wide Range Of Cable Diameters
  • Polyurethane Boot Gland Provides Additional Cable Ingress Protection
  • Zinc Diecast Shell Withstands Repeated Field Use And Physical Stress
  • Solder Contact Wiring Ensures Secure, Low-Resistance Terminations
  • Compatible With Colored Rings And Boots For Multi-Connector Panel Coding
  • IEC 61076-2-103 And UL 94 V-0 Rated For Install And Touring Environments
Log in or register for YOUR best price

The Neutrik NC6FXX-BAG is built for audio professionals who demand reliable, field-proven terminations on 6-pole XLR wiring. Designed for touring rigs, installed AV systems, and broadcast infrastructure, this connector meets the IEC 61076-2-103 standard and carries UL 94 V-0 flammability certification — making it appropriate for both portable production and fixed installation environments.

The improved locking recess design of the XX series eliminates the traditional window cutout, increasing shell rigidity and long-term durability under repeated connect-disconnect cycles. Chuck-type strain relief and a polyurethane boot gland accommodate a wide cable diameter range, giving technicians flexibility across different cable builds without secondary adapters or custom tooling.

Where generic 6-pole connectors fall short on build integrity, the NC6FXX-BAG uses a rugged zinc diecast shell and silver-plated contacts to maintain signal integrity and mechanical strength over time. Optional colored rings and boots support channel coding on dense multi-connector panels — a practical advantage for systems integrators managing complex signal routing on stage or in rack-mount installations.

View full details

Specifications

Certifications
Flammability Rating
UL 94 V-0
Standard
IEC 61076-2-103
Protection Class
IP 40
Electrical
Contact Plating
Silver (Ag)
Wiring
Solder contacts
Insertion/Withdrawal Force
<=20 N
Lifetime
>1000 mating cycles
Locking Device
Latch lock
Construction
Shell Material
Zinc diecast
Housing Color
Black
Contact Finish Color
Silver
Connectivity
Connection Type
XLR
Gender
Female
Contacts
6-pole
Cable O.D.
3.5–8.0 mm
Environmental
Temperature Range
-30°C to +80°C
