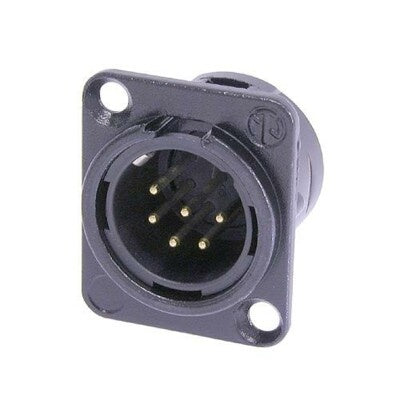

• Neutrik NC6MD-L-B-1 6-pin male XLR panel mount receptacle with black D-shape flange and gold pins
1 1

Neutrik NC6MD-L-B-1 6-Pin Male XLR Panel Mount Receptacle

Neutrik NC6MD-L-B-1 6-Pin Male XLR Panel Mount Receptacle

SoundPro Item: 152394 | Part Number: NC6MD-L-B-1

$11.72
$13.08 $11.72
Your Price Sold out
MSRP: $13.08 | MAP: $11.72

Usually ships in 5-7 business days

  • Zinc Diecast D-Shell Withstands Mechanical Stress In High-Cycle Touring Environments
  • Solder Cup Termination Supports Secure Hand-Wired Connections On Multi-Pole Configurations
  • Gold-Plated Brass Contacts Maintain Low Resistance Over Extended Service Life
  • Latch Lock Mechanism Prevents Accidental Disconnection Under Vibration
  • Standardized D-Size Chassis Fits Universal Panel Cutouts Across Mixed-Manufacturer Builds
  • UL Recognized Component Meets Compliance Requirements For Installed AV Systems
Log in or register for YOUR best price

The Neutrik NC6MD-L-B-1 is a professional-grade 6-pole male panel receptacle designed for audio engineers and systems integrators who require reliable multi-pin XLR connections in installed and touring applications. Its standardized D-size chassis fits the universal 24 mm panel cutout, making it compatible with rack panels, stage boxes, and equipment enclosures that follow IEC 61076-2-103 dimensional standards — eliminating fitment guesswork across mixed-manufacturer installations.

Built for high-cycle professional environments, the zinc diecast shell with black KTL coating provides durability against mechanical stress and corrosion, while the latch lock mechanism ensures secure mating in vibration-prone live production or touring settings. Gold-plated brass contacts deliver low contact resistance and long-term signal integrity across multi-channel snake systems, broadcast patchbays, and installed AV infrastructure where connector replacement is costly and downtime is unacceptable.

With a rated current of 7.5 A per contact, UL recognition, and a temperature range suited to both indoor installations and touring road cases, this receptacle serves integrators building custom panel solutions, OEM manufacturers, and touring engineers who specify Neutrik components for repeatable, standards-compliant connectivity.

View full details

Specifications

Electrical
Capacitance Between Contacts
≤ 7 pF
Contact Resistance
≤ 5 mΩ
Dielectric Strength
1.5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current Per Contact
7.5 A
Rated Voltage
< 50 V
Mechanical
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Wire Size
max. 1.0 mm² / max. 18 AWG
Wiring Method
Solder contacts
Locking Device
Latch lock
Chassis Shape
D
Construction
Contact Plating
0.2 µm Au hard alloy over 2 µm Ni
Contact Material
Brass (CuZn39Pb3)
Insert Material
Polyamide (PA 6.6 30% GR)
Locking Element
Steel Ck67
Shell Material
Zinc diecast (ZnAl4Cu1)
Shell Coating
Black KTL
Environmental
Temperature Range
-30 °C to +80 °C
Protection Class
IP 40
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Certifications
Approvals
UL
Standard Compliance
IEC 61076-2-103
Identifiers
Gender
Male
Connection Type
XLR
Pole Count
6
