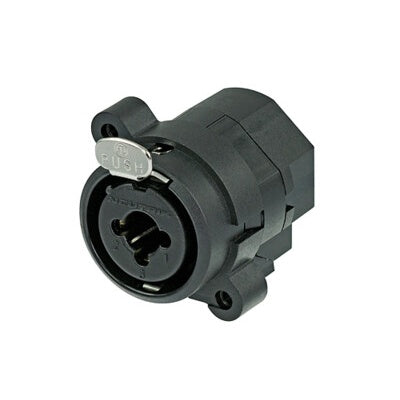

Neutrik NCJ6FI-S XLR and 1/4" Combo Chassis Connector Solder Cup

Neutrik NCJ6FI-S XLR and 1/4" Combo Chassis Connector Solder Cup

SoundPro Item: 60316 | Part Number: NCJ6FI-S

$3.64
$4.07 $3.64
Your Price Sold out
MSRP: $4.07 | MAP: $3.64

Usually ships in 5-7 business days

  • Hybrid XLR And 1/4" Jack Housing Consolidates Two Inputs Into One Panel Cutout
  • Solder Cup Termination Provides Reliable Connections For Permanent Installations
  • Low Conductor Capacitance Maintains Signal Integrity For Digital Audio Paths
  • Bronze Contacts With Gold Over Nickel Plating Ensure Consistent Low-Resistance Mating
  • Rear-Mounting Design Integrates Cleanly Into Custom Panel And Chassis Builds
  • UL 94 V-0 Rated Insert Material Meets Flammability Requirements For Installed Systems
Log in or register for YOUR best price

The Neutrik NCJ6FI-S is a hybrid chassis-mount connector engineered for audio engineers and integrators who need to consolidate panel real estate without compromising input flexibility. By combining a 3-pole XLR female receptacle with a 1/4" stereo phone jack in a single housing, it directly replaces two separate connectors on stagebox panels, rack-mounted interface units, and installed audio equipment.

This connector is equally suited for balanced mic/line inputs and unbalanced instrument connections, making it the go-to choice for multipurpose input panels in live sound, installed AV, and broadcast environments. Solder cup termination ensures reliable, professional-grade connections that hold up under repeated insertion cycles and demanding environmental conditions.

The very low conductor capacitance of the NCJ6FI-S makes it appropriate for digital audio applications where signal fidelity is critical. Rear-mounting design integrates cleanly into standard panel fabrication, and the bronze contacts with gold-over-nickel plating deliver consistent low-resistance mating across the connector's rated service life.

View full details

Specifications

Electrical
XLR Contact Resistance
< 10 mΩ
Jack Contact Resistance
< 20 mΩ
Dielectric Strength
1.5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current Per Contact (XLR)
7.5 A
Rated Current Per Contact (Jack)
7.5 A
Rated Voltage
< 50 V
Mechanical
Insertion Force
≤ 25 N
Withdrawal Force
≤ 25 N
Lifetime
> 1000 mating cycles
Max Panel Thickness
7 mm (0.27")
Mounting Direction
Rear mounting
Construction
Contact Plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts Material
Bronze (CuSn6)
Insert Material
PA66
Locking Element Material
Steel Ck67
Locking Element Plating
Nickel
Environmental
Flammability Rating
UL 94 V-0
Temperature Range
-30 °C to +80 °C
Identifiers
MPN
NCJ6FI-S
Connection Type
Combo
Gender
Female
