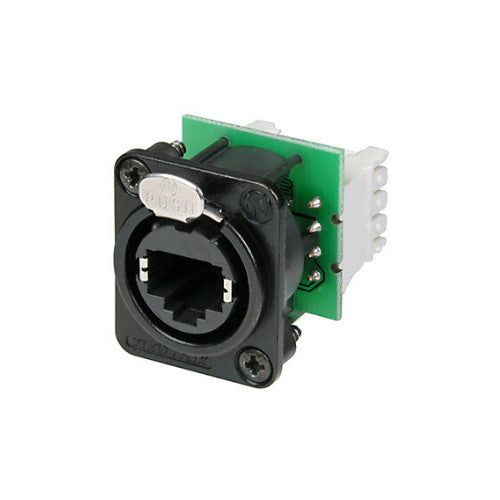

Neutrik NE8FDV-Y110-B Panel Mount Locking RJ45 Connector

Neutrik NE8FDV-Y110-B Panel Mount Locking RJ45 Connector

SoundPro Item: 60377 | Part Number: NE8FDV-Y110-B

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Selectable ground - panel connection
  • Easy and quick mounting using 110 type punch down terminals
Log in or register for YOUR best price

Panel mount receptacle with IDC 110 punch down terminals, black D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws included.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

View full details

Specifications

Electrical
Contact Resistance
< 50 mΩ
Dielectric Strength
1 kVdc
Insulation Resistance
> 0.5 GΩ
Rated Current per Contact
1,5 A
Rated Voltage
≤ 57V
Electrical
Transmission performance CAT5e acc. to TIA/EIA 568A/B component specificationsCAT5e acc. to ISO/IEC 11801 component specifications
Power Over Ethernet
PoE type 3 class 6 (60W) acc. IEEE 802.3bt
Construction
Contact Plating
0.2 µm Au over Ni plating
Contacts
Bronze (CuSn8)
Insert
PBTP 15 % GR
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating
Black chromium
Strain Relief
CuZn35Pb2, Tin plated
Environmental
Flammability
UL 94 V-0
Temperature Range
-30°C to +80°C
Identifiers
Gender
Female
General
Title
NE8FDV-Y110-B
Environmental
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)IEC 60603-7-3 Ed.2.0 (2010-04)IEC 60512-99-002 Ed.2.0 (2022-01)IEC 60512-9-3 (2011-06)
RF
Frequency Range
1 - 100 MHz
Mechanical
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Panel Thickness
max. 4 mm 0.16'
Wiresize
0.14 - 0.5 mm²
Wiring
IDC 110 punch down terminals
Locking Device
Latch lock
Chassis Shape
D
