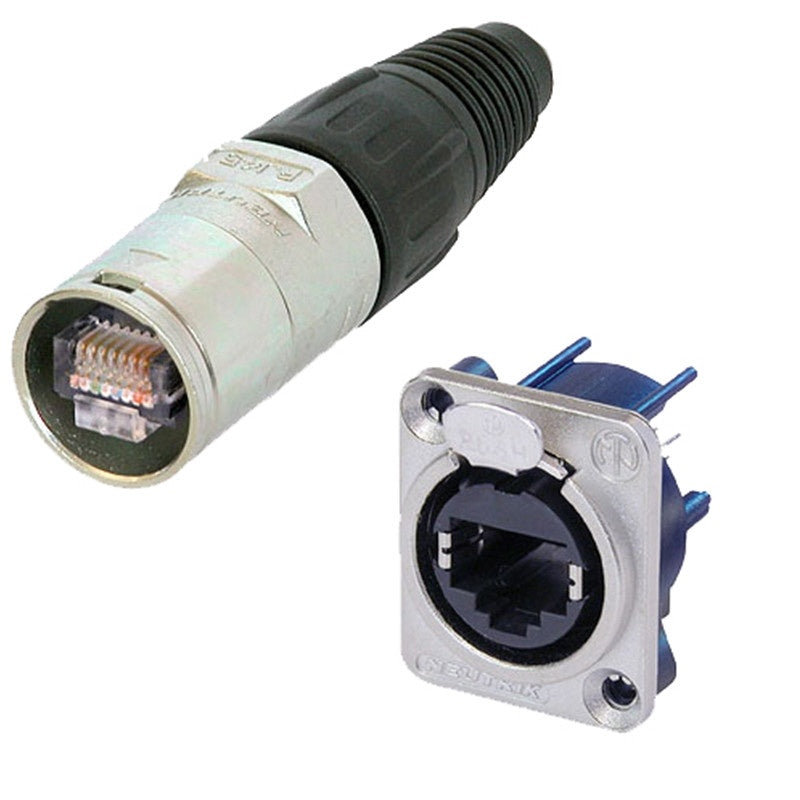

Neutrik NE8MX6-B etherCON CAT6A Cable Connector | Black

Neutrik NE8MX6-B etherCON CAT6A Cable Connector | Black

SoundPro Item: 51195 | Part Number: NE8MX6-B

$36.18
$36.18 $36.18
Your Price Sold out
MSRP: $36.18 | MAP: $36.18

Usually ships in 5-7 business days

  • CAT6A Component Compliance Meets ISO/IEC 11801 And TIA/EIA 568-C.2 Standards
  • PoE++ Compliance Per IEEE 802.3bt Type 4 Supports High-Wattage Powered Devices
  • IP65 Environmental Sealing When Mated With Compatible NE8FDX-W Series Chassis
  • Chuck-Type Strain Relief Provides Secure Cable Management Under Repeated Pull Stress
  • Zinc Diecast Shell Delivers Robust Mechanical Protection In Production Environments
  • Intermateable With Existing etherCON CAT5 Range For Legacy System Compatibility
  • Latch Lock System Ensures Positive Connector Retention Through Repeated Mating Cycles
Log in or register for YOUR best price

The Neutrik NE8MX6-B is built for AV integrators, touring engineers, and system technicians who need a field-terminatable, ruggedized Ethernet connector that holds up under real-world production conditions. The zinc diecast shell and proven chuck-type strain relief are designed for repeated deployment and high cable-pull environments — not the patch-panel calm of a server room.

This connector suits installed AV systems, touring network infrastructure, and broadcast facility cabling where CAT6A transmission performance and Power over Ethernet are required simultaneously. Its compliance with ISO/IEC 11801 and TIA/EIA 568-C.2 at CAT6A component level ensures it meets the throughput demands of modern AV-over-IP, Dante, and AVB networks. PoE++ support per IEEE 802.3bt Type 4 means it can carry high-wattage powered device loads without derating.

The NE8MX6-B is intermateable with the existing etherCON CAT5 chassis range, protecting legacy infrastructure investments while upgrading transmission performance. When mated with NE8FDX-P6-W or NE8FDX-Y6-W chassis connectors, the assembly achieves IP65 environmental sealing — suitable for outdoor stage use or any environment with moisture and dust exposure. Note: this connector does not intermate with NE8FDY-C6 or NE8FDY-C6-B chassis connectors.

Downloads

View full details

Specifications

Electrical
Dielectric Strength
1 kVdc
Insulation Resistance
> 0.5 GΩ
Rated Current Per Contact
1.5 A
Transmission Performance
CAT6A, acc. TIA/EIA CAT6 A; acc. IEC/ISO/EN rating
Power Over Ethernet
PoE++ acc. IEEE 802.3bt
Mechanical
Cable O.D.
7.0 - 9.5 mm
Wire Size
AWG 24/1 - AWG 22/1 (solid); AWG 24/7 - AWG 22/7 (stranded)
Insulation Diameter
1.1 - 1.6 mm
Locking Device
Latch lock
Mating Cycles
> 1000
Gender
Male
Construction
Shell Material
Zinc diecast (ZnAl4Cu1)
Shell Coating
Black KTL
Contact Plating
Au
Bushing Material
PA / PU
Strain Relief Material
POM
Environmental
Protection Class
IP65 (in combination with NE8FDX-*6-W)
Temperature Range
-40 °C to +70 °C
