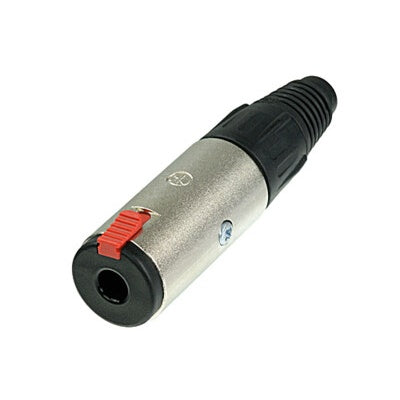

Neutrik NJ3FC6 Locking 1/4" Stereo Jack | Cable | Metal | Nickel/Silver

Neutrik NJ3FC6 Locking 1/4" Stereo Jack | Cable | Metal | Nickel/Silver

SoundPro Item: 60598 | Part Number: NJ3FC6

$8.64
$9.65 $8.64
Your Price Sold out
MSRP: $9.65 | MAP: $8.64

Usually ships in 5-7 business days

  • Auto-Latching Mechanism Prevents Accidental Disconnect In Live And Touring Applications
  • Compatible With All A-Gauge Mono And Stereo Plugs Per EIA RS-453
  • Neutrik-Style Cable Retention And Boot System Matches XLR-Grade Build Quality
  • Zinc Diecast Shell Delivers Robust Mechanical Durability In Field Use
  • Solder Terminals Support Reliable Hand-Wired Termination
  • Colored Boots Available In Ten Colors For Signal Chain Color Coding
Log in or register for YOUR best price

The Neutrik NJ3FC6 is a 3-pole inline cable jack built for professional audio environments where accidental disconnection is not an option. Touring engineers, rack builders, and installed audio technicians reach for this connector when reliable signal integrity under mechanical stress is essential — think touring rigs, vibrating stage setups, or any application where plugs are at risk of being jarred loose.

Its automatic latch-lock mechanism secures any standard A-gauge mono or stereo plug on insertion, releasing only when the red tab is deliberately pressed. This eliminates the false disconnect risk that plagues passive barrel jacks in live production settings. The zinc diecast shell and cable retention system mirror Neutrik's XLR-grade construction standards, making this a field-serviceable connector that holds up to repeated mating cycles in demanding conditions.

Solder terminals accommodate a range of wire gauges, and colored boots — available in ten colors — give system integrators and FOH engineers a straightforward path to color-coded cable management in complex signal chains. For professionals who need a locking inline 1/4" solution without sacrificing compatibility with standard plugs, this connector is the purpose-built choice.

Downloads

View full details

Specifications

Electrical
Contact Resistance
< 6 mΩ (initial)
Dielectric Strength
1 kVdc
Insulation Resistance
≥ 1 GΩ @ 500 V dc
Rated Current Per Contact
10 A
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion Force
< 30 N
Withdrawal Force
< 20 N
Locking Force
> 80 N
Lifetime
> 10000 mating cycles
Wire Size
1 mm² / 18 AWG
Wiring
Solder contacts
Locking Device
Latch lock
Construction
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating
Nickel
Contact Plating
2 µm Ag
Contacts
Brass (CuZn37) (Ground)
Insert
Polyamide (PA 6.6 30 % GR)
Boot Material
Polyurethane
Strain Relief
Polyacetal (POM)
Environmental
Temperature Range
-25 °C to +70 °C
Standard Compliance
EIA RS 453, IEC 60603-11
Solderability
Complies with IEC 68-2-20
Identifiers
Connection Type
Jack
Gender
Female
