Specifications
General
Product Gender
male

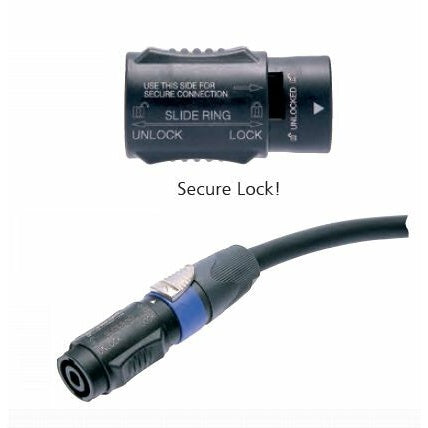

Locking Device
Quick Lock
Lifetime
> 5000 mating cycles
Temperature Range
-30 u00b0C to +80 u00b0C
Electrical
Contact Resistance
u2264 3 mu03a9 (after lifetime)
Dielectric Strength
4 kVdc (peak)
Insulation Resistance
> 1 Gu03a9 (after dampheat)
Rated Current per Contact
15 A rms continuous
Rated Current per Contact
30 A audiosignal, duty cycle 50 %
Rated Voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Materials
Contact Plating
4 u00b5m Ag
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6 30 % GR)
Shell
Polyamide (PA 6 30 % GR)
Environmental
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
