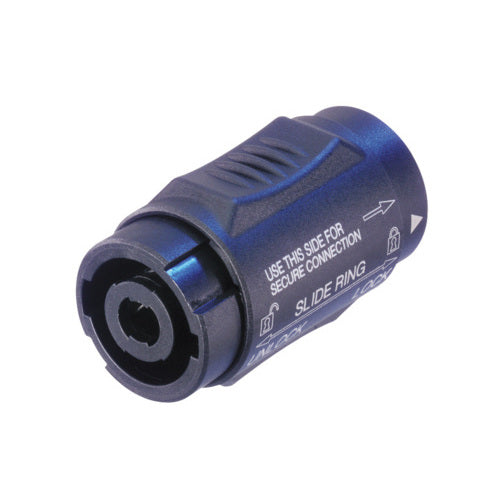

Neutrik NL4MMX Lockable 4-Pole speakON Adapter
Neutrik NL4MMX Lockable 4-Pole speakON Adapter
SoundPro Item: 41215 | Part Number: NL4MMX.POLY
In stock and ready to ship
The Neutrik NL4MMX Lockable 4-Pole speakON Adapter links two NL2/4Fs together for cable extension. Changes gender to male when permanently locked on the cable. Features permanent secure connection on a speakON cable connector using 2nd lock. Can be permanently attached to NL2/4F.
Note: speakON is NOT to be used as an AC mains or power supply connector!
- Electrical
- Contact Resistance: ≤ 3 mΩ (after lifetime)
- Dielectric Strength: 4 kVdc (peak)
- Insulation Resistance: > 1 GΩ (after dampheat)
- Rated Current Per Contact: 15 A rms continuous
- Rated Current Per Contact: 30 A audiosignal, duty cycle 50 %
- Rated Voltage: 250 V (insulation)
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
- Mechanical
- Lifetime: > 5000 mating cycles
- Locking Device: quick lock
- Material
- Contact Plating: 4 µm Ag
- Contacts: bronze (CuZn39Pb3)
- Insert: polyamide (PA 6 30 % GR)
- Shell: polyamide (PA 6 30 % GR)
- Environmental
- Flammability: UL 94 HB
- Solderability: complies with IEC 68-2-20
- Temperature Range: -22°F to 176°F (-30°C to 80°C)
