Specifications
Electrical
Contact Resistance
≤ 3 mΩ (after lifetime)
Dielectric Strength
4 kVdc (peak)
Insulation Resistance
> 1 GΩ (after dampheat)
Rated Current per Contact
30 A rms continuous
Rated Voltage
250 V ac
Construction
Contact Plating
4 µm Ag
Contacts
Bronze (CuSn6)
Shell
Polyamide (PA 6 30 % GR) black
Environmental
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature Range
-30 °C to +80 °C
Identifiers
Connection Type
speakON
Gender
Male
General
Title

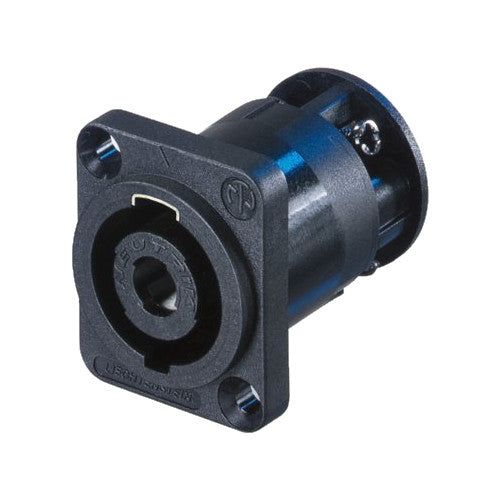

NL4MP-ST
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Wiresize
4 mm²
Wiring
screw terminals
Locking Device
Quick Lock
Chassis Shape
D
Layout
standard hole position, thru holes
