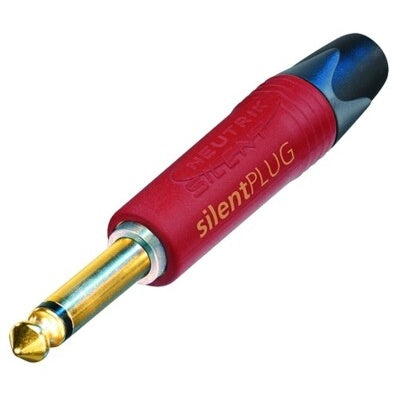

Neutrik NP2XX-SILENT silentPLUG 1/4" Mono Plug With Reed Switch

Neutrik NP2XX-SILENT silentPLUG 1/4" Mono Plug With Reed Switch

SoundPro Item: 202348 | Part Number: NP2XX-SILENT

$14.18
$15.83 $14.18
Your Price Sold out
MSRP: $15.83 | MAP: $14.18

Usually ships in 5-7 business days

  • Reed Switch Technology Automatically Mutes Cable On Disconnect To Prevent Signal Pops
  • Hermetically Sealed Switching Contacts Ensure Reliable Performance In Stage Environments
  • Gold-Plated Brass Contacts Maintain Signal Integrity Across Extended Use
  • Rubber Overlay On Straight Housing Provides Shock Protection And Secure Grip
  • Chuck-Type Cable Strain Relief Accommodates A Range Of Cable Sizes
  • IEC 60603-11 And EIA RS-453 Compliance For Professional Installation Standards
Log in or register for YOUR best price

The Neutrik NP2XX-SILENT is built for guitarists, touring technicians, and live production crews who need to change instruments mid-set without introducing noise into the signal chain. The integrated reed switch automatically shorts the cable tip upon disconnection, preventing the transient pops and squeals that occur when unplugging a live instrument from an active input.

Where standard plugs leave the signal path open during a swap, the silentPLUG's hermetically sealed switching contacts ensure a clean, silent disconnect every time. The chuck-type cable strain relief handles wire up to 18 AWG, and the TPE and PA6 shell with rubber cushion overlay resists the mechanical abuse of regular stage use. Gold-plated brass contacts maintain low contact resistance across repeated mating cycles, making this a reliable choice for fixed installations, pedalboards, and touring rigs alike.

The NP2XX-SILENT meets IEC 60603-11 and EIA RS-453 standards, operates across a wide temperature range, and is rated for cable outer diameters from 4 to 7 mm. It is a direct successor to legacy silentPLUG formats and is the professional standard for noise-free hot-swapping in demanding live and studio environments.

Downloads

View full details

Specifications

Electrical
Dielectric Strength
0.2 kVdc
Insulation Resistance
> 2 GΩ (initial)
Rated Voltage
< 50 V
Mechanical
Cable O.D.
4 - 7 mm
Lifetime
> 1000 mating cycles
Wire Size
1 mm² / 18 AWG
Wiring
Solder contacts
Connection Type
Plug
Gender
Male
Construction
Bushing Material
PP + PA6
Contact Plating
0.2 μm Au
Contacts Material
Brass (CuZn39Pb3)
Insert Material
Polyamide (PA 6.6 30% GR)
Shell Material
TPE + PA6
Strain Relief Material
Polyacetal (POM)
Environmental
Temperature Range
-20 °C to +65 °C
Standard Compliance
IEC 60603-11 / EIA RS-453
Solderability
Complies with IEC 68-2-20
Identifiers
MPN
NP2XX-SILENT
