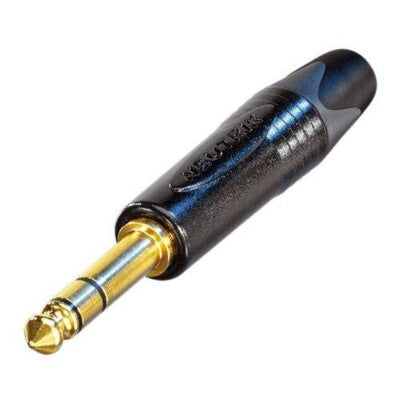

Neutrik NP3X-B-D PX Series 1/4" Stereo Plug | Bulk | Black/Gold

Neutrik NP3X-B-D PX Series 1/4" Stereo Plug | Bulk | Black/Gold

SoundPro Item: 84584 | Part Number: NP3X-B-D

$7.18
$8.02 $7.18
Your Price Sold out
MSRP: $8.02 | MAP: $7.18

Usually ships in 5-7 business days

  • Extra Slim Shell Fits Highest-Density Jackfield Configurations Without Spacing Issues
  • Chuck-Type Strain Relief Mechanically Locks Cable Jacket For Long-Term Retention
  • Precision Machined One-Piece Tip Contact Eliminates Hook-Up And Breakage Risk
  • Robust Zinc Diecast Shell With KTL Coating Resists Corrosion In Demanding Environments
  • Solder Contacts With Broad Wire Compatibility Suit Guitar, Snake, And Speaker Applications
  • IEC 60603-11 And EIA RS-453 Compliance Supports Documented Install Specifications
Log in or register for YOUR best price

The Neutrik PX Series 1/4" stereo phone plug is engineered for professional audio technicians, cable fabricators, and systems integrators who demand reliability at scale. At 14.5 mm wide, it is the thinnest A-gauge 1/4" plug available, making it the only choice when wiring jackfields with a 15.88 mm pitch — a common constraint in broadcast bays, touring stage racks, and installed sound patchbays where standard-width plugs simply will not fit.

Unlike consumer-grade alternatives, the PX Series replaces the conventional riveted tip with a precision-machined one-piece contact. This eliminates the two most common field failures: tip hook-up inside a socket and contact breakage under repeated insertion. The chuck-type strain relief — a Neutrik-exclusive design — grips the cable jacket mechanically rather than relying on friction alone, extending service life across thousands of mate cycles on a touring snake, studio patchbay, or installed snake system.

The zinc diecast shell is finished with a KTL coating for corrosion resistance, and the solder-type contacts accept wire up to 1 mm² for flexible use across guitar leads, speaker cables, insert cables, and multi-pair snakes. Compliance with IEC 60603-11 and EIA RS-453 makes these plugs specifiable for install contracts requiring documented standards adherence.

Downloads

View full details

Specifications

Electrical
Dielectric Strength
1 kVdc
Insulation Resistance
> 2 GΩ (initial)
Rated Voltage
< 50 V
Mechanical
Cable O.D.
4 - 7 mm
Lifetime
> 1000 mating cycles
Wire Size
1 mm² / 18 AWG
Wiring Method
Solder contacts
Construction
Shell Material
Zinc diecast (ZnAl4Cu1)
Shell Plating
KTL coating
Contact Material
Brass (CuZn39Pb3)
Contact Plating
0.2 µm Au
Bushing Material
Polyacetal (POM) + PU
Insert Material
Polyamide (PA 6.6 30 % GR)
Strain Relief Material
Polyacetal (POM)
Environmental
Temperature Range
-20 °C to +65 °C
Standard Compliance
IEC 60603-11 / EIA RS-453
Solderability
Complies with IEC 68-2-20
Identifiers
MPN
NP3X-B-D
Connection Type
Plug
Gender
Male
