Nexo 45°N12 Professional Grade Stage Monitor

Nexo 45°N12 Professional Grade Stage Monitor

SoundPro Item: 15323 | Part Number: 45N-12

$5,199.00
$5,199.00 $5,199.00
Your Price Sold out
MSRP: $5,199.00 | MAP: $5,199.00

Usually ships in 5-7 business days

  • World's first line monitor

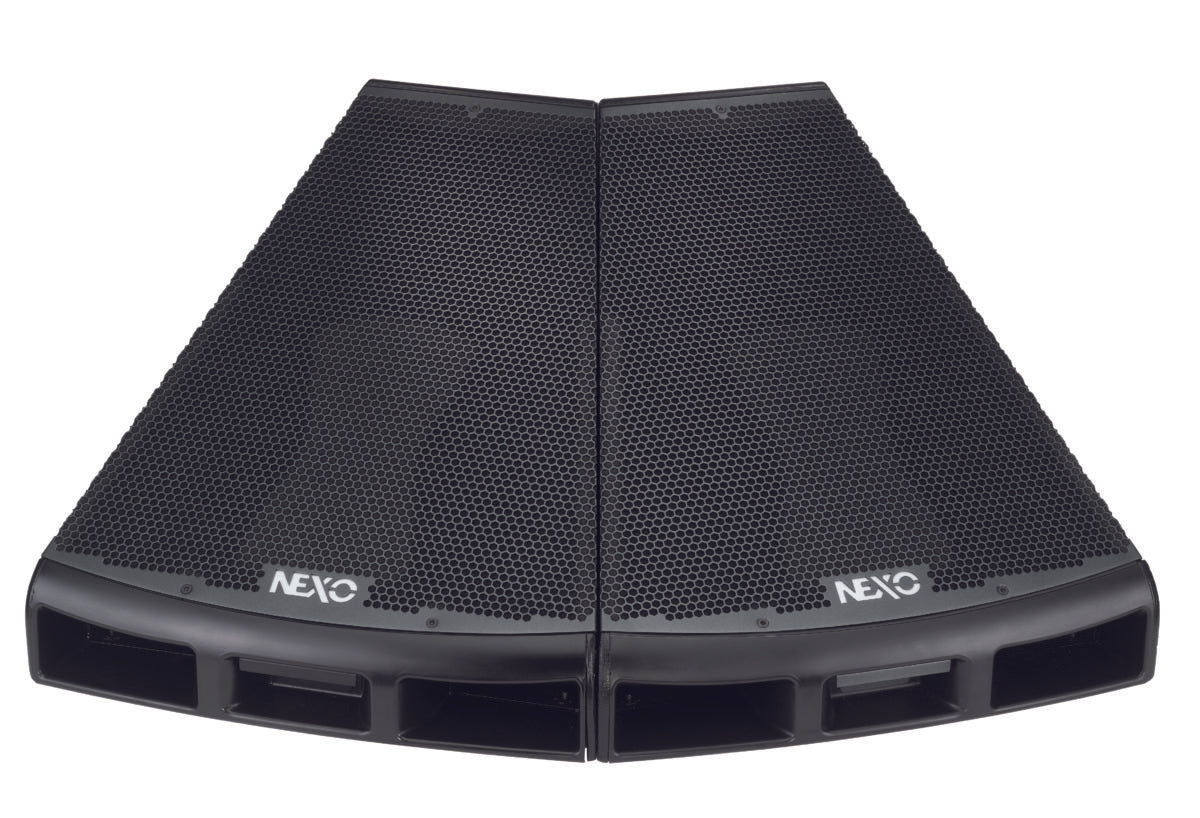

  • Can be joined together into arrays to provide a scalable solution for wider coverage and higher SPLs
  • Very high headroom before feedback
  • Focusses coverage only where needed for lower acoustic power on stage
  • Discreet, low profile design
  • Ingenious magnetic locking system
  • Non-slip base with skid system and ergonomic handle for easy repositioning on stage
Log in or register for YOUR best price

45°N12 is a flexible, one box solution for any stage monitoring application , providing rental companies with a ‘one box’ solution for all their stage monitoring needs. Delivering consistent SPL and frequency response within a tightly- focused area, cabinets can even be locked using an ingenious magnetic locking system to create monitor arrays where more SPL and wider coverage are required.

View full details

Specifications

Frequency Response
55Hz - 19kHz ±3dB
Usable Range @-6dB
50Hz - 20kHz
Sensitivity 1W @ 1m
106dB SPL Nominal / 104dB SPL Wideband
Nominal Peak SPL @ 1m
1 unit: 137 to 140dB Peak / 2 units: 140 to 143dB Peak
HF Dispersion
30° Horizontal - Scalable 30° steps when arrayed
22.5° Diagonal (Coupling Plane) - Scalable 22.5° steps when arrayed
60° Vertical (Asymmetrical -45° / +15°)
Crossover Frequencies
LF-HF: 1kHz Active or Passive (internally configurable)
Nominal Impedance
Active LF 8Ω, HF 16Ω. Passive 8Ω
Recommended Amplifiers
Active LF 1000 to 1500 W 8Ω / HF 250 to 500 W 16Ω
Passive 1200 to 2000 W 8Ω
Components
LF 1 x 12" (30 cm) high excursion Neodymium 8Ω driver
HF 1 x 3" voice coil, 1.4" throat Neodymium 16Ω compression
driver on a 22.5° hyperboloid reflective wavesource
Height x Width x Depth
392 x 492 x 576 mm (15.43" x 19.37" x 22.67")
Net Weight
24 kg (53 lbs)
Connectors
2 x NL4MP Speakon 4 pole
Construction
Main structure: Baltic Birch Ply finished with structured black coating
Rear lower and bottom section: Steel with dark grey coating
Front vents and rear upper section: Injected polyurethane front vents, black coating
Fittings
4 handles (2 side metal recessed, 2 front and rear moulded)
Front Finish
Perforated dark grey metal grille
Locking Elements
Integrated magnets for mechanical locking
