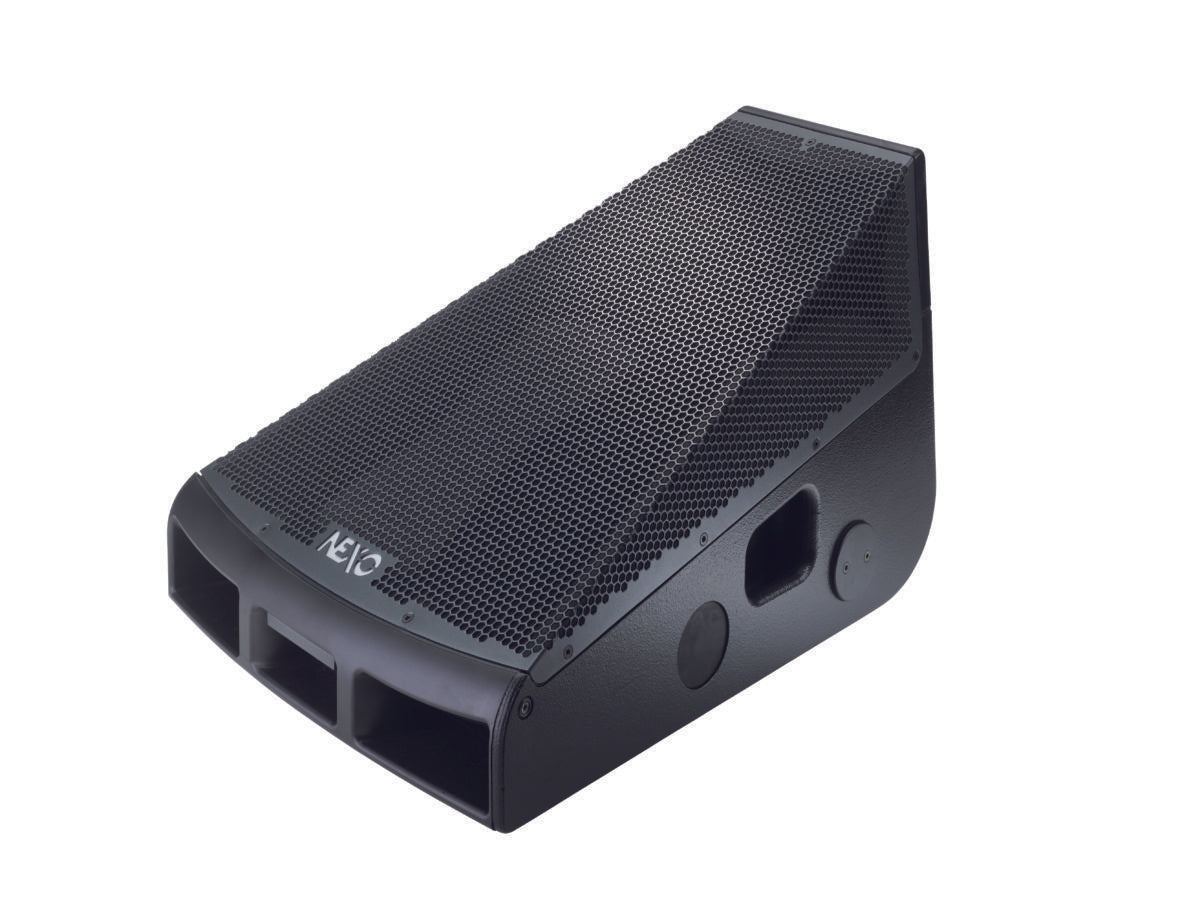

Nexo 45N12 Stage Monitor Loudspeaker

Nexo 45N12 Stage Monitor Loudspeaker

SoundPro Item: 15324 | Part Number: 45N-12-PW

$5,199.00
$5,199.00 $5,199.00
Your Price Sold out
MSRP: $5,199.00 | MAP: $5,199.00

Usually ships in 5-7 business days

  • World’s first line monitor
  • Can be joined together into arrays to provide a scalable solution for wider coverage and higher SPLs
  • Very high headroom before feedback
  • Focusses coverage only where needed for lower acoustic power on stage
  • Discreet, low profile design
  • Ingenious magnetic locking system
  • Non-slip base with skid system and ergonomic handle for easy repositioning on stage
Log in or register for YOUR best price

45N12 is a flexible, one box solution for any stage monitoring application , providing rental companies with a ‘one box’ solution for all their stage monitoring needs. Delivering consistent SPL and frequency response within a tightly- focused area, cabinets can even be locked using an ingenious magnetic locking system to create monitor arrays where more SPL and wider coverage are required.

View full details

Specifications

Frequency Response [a]
55Hz - 19kHz ±3dB
Usable Range @-6dB [a]
50Hz - 20kHz
Sensitivity 1W @ 1m [b]
106dB SPL Nominal / 104dB SPL Wideband
Nominal Peak SPL @ 1m [b]
1 unit: 137 to 140dB Peak / 2 units: 140 to 143dB Peak
HF Dispersion [c]
30° Horizontal - Scalable 30° steps when arrayed
22.5° Diagonal (Coupling Plane) - Scalable 22.5° steps when arrayed
60° Vertical (Asymmetrical -45° / +15°)
Crossover Frequencies
LF-HF: 1kHz Active or Passive (internally configurable)
Nominal Impedance
Active LF 8Ω, HF 16Ω. Passive 8Ω
Recommended Amplifiers
Active LF 1000 to 1500 W 8Ω / HF 250 to 500 W 16Ω
Passive 1200 to 2000 W 8Ω
