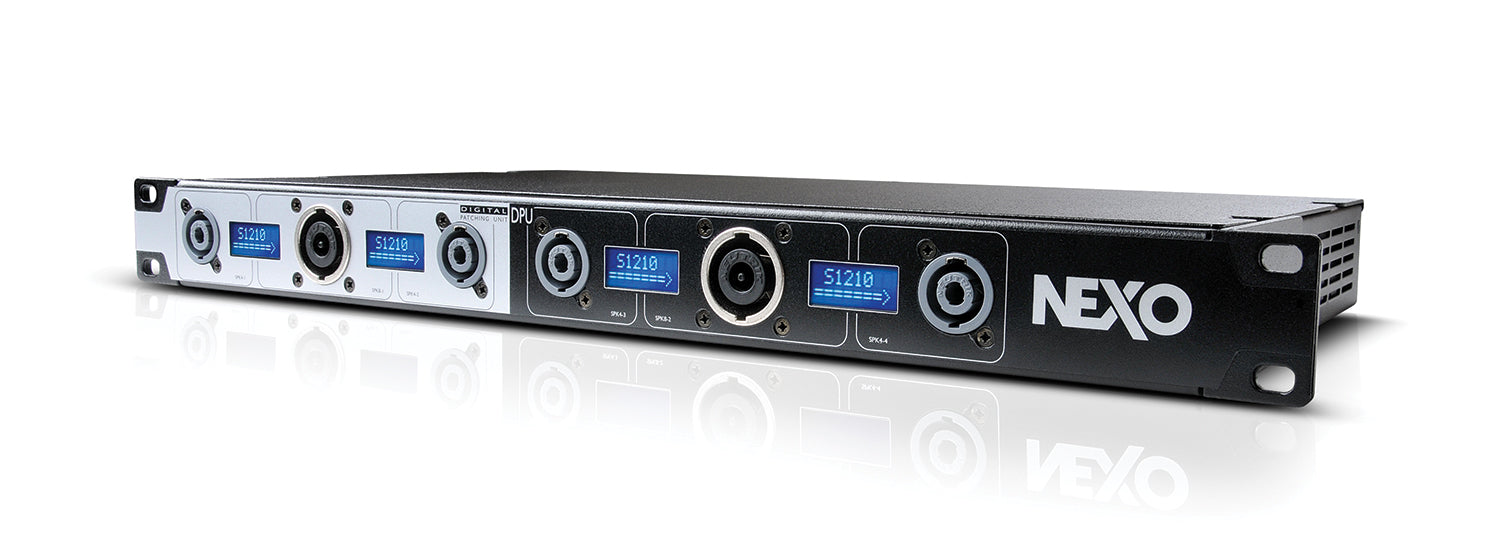

Nexo Digital Patching Unit

Nexo Digital Patching Unit

SoundPro Item: 15806 | Part Number: NXDPU

$2,429.00
$2,429.00 $2,429.00
Your Price Sold out
MSRP: $2,429.00 | MAP: $2,429.00

Usually ships in 5-7 business days

  • Route any of the four input channels to one or several Speakon pins pairs on the front
  • Intelligent output patch panel offering digital communication with NXAMPs
  • Provide automatic output speakons wiring regarding the configuration of the NXAMP
  • Four individual LCD for easy labeling of the outputs speakons
  • Fully redundant design for maximum safety, including dual power socket and dual universal power supplies
  • Plug and play operation, totally driven by the host NXAMP
Log in or register for YOUR best price

The DPU optimizes the NXAMP or NXAMPMK2’s channel by channel preset selection by automatically routing its outputs to any of six output connectors on the DPU front panel. Cabinet names and bridging status are displayed alongside each output, making it easy to wire the system. The ultimate tool for easy connection between the NXAMP powered TDcontrollers and any Nexo speaker in live environment.

View full details

Specifications

FRONT PANEL FEATURES
Power outputs
4 Neutrik Speakon-4 and 2 Neutrik Speakon-8
LCD Displays
4 LCD displays, 2 x 8 characters
BACK PANEL FEATURES
NXAMP power inputs
2 Neutrik Speakon-4 for connecting the NXAMP Powered Tdcontroller
NXAMP interface
RS232 interface for communication with the NXAMP Powered TDcontroller
Mains inputs
2 IEC connectors with security latch
DISPLAYED INFORMATION
When muted
Connected speaker name, speaker pin-out, connected NXAMP inputs names
When unmuted
Connected speaker name, output meter
GENERAL SPECIFICATIONS
Power supply
Fully redundant, dual universal 100 ~ 240 Volts, 50 or 60 Hz, 25 Watts
Dimensions
1U 19" Rack - 248 mm (10") Depth
Weight
4.7 Kg (10.4 lbs) net
Electrical Safety Certification
cETLus, CB (CE)
EMC Certification
CE, FCC
Green status
Compliant with ROHS and REACH directive
ORDERING INFORMATION
Digital Patch Unit for NXAMP
NX.DPU (1 x DPU, 1 x Quick Start Guide)
Cable Kit for DPU, 100 ~120 Volts
NX.DPU.CK1 (2 x US lockable power cord, 1 x RS232 link, 2 x Speakon link 4x4 mm²)
Cable Kit for DPU, 220 ~240 Volts
NX.DPU.CK2 (2 x EU lockable power cord, 1 x RS232 link, 2 x Speakon link 4x4 mm²)
