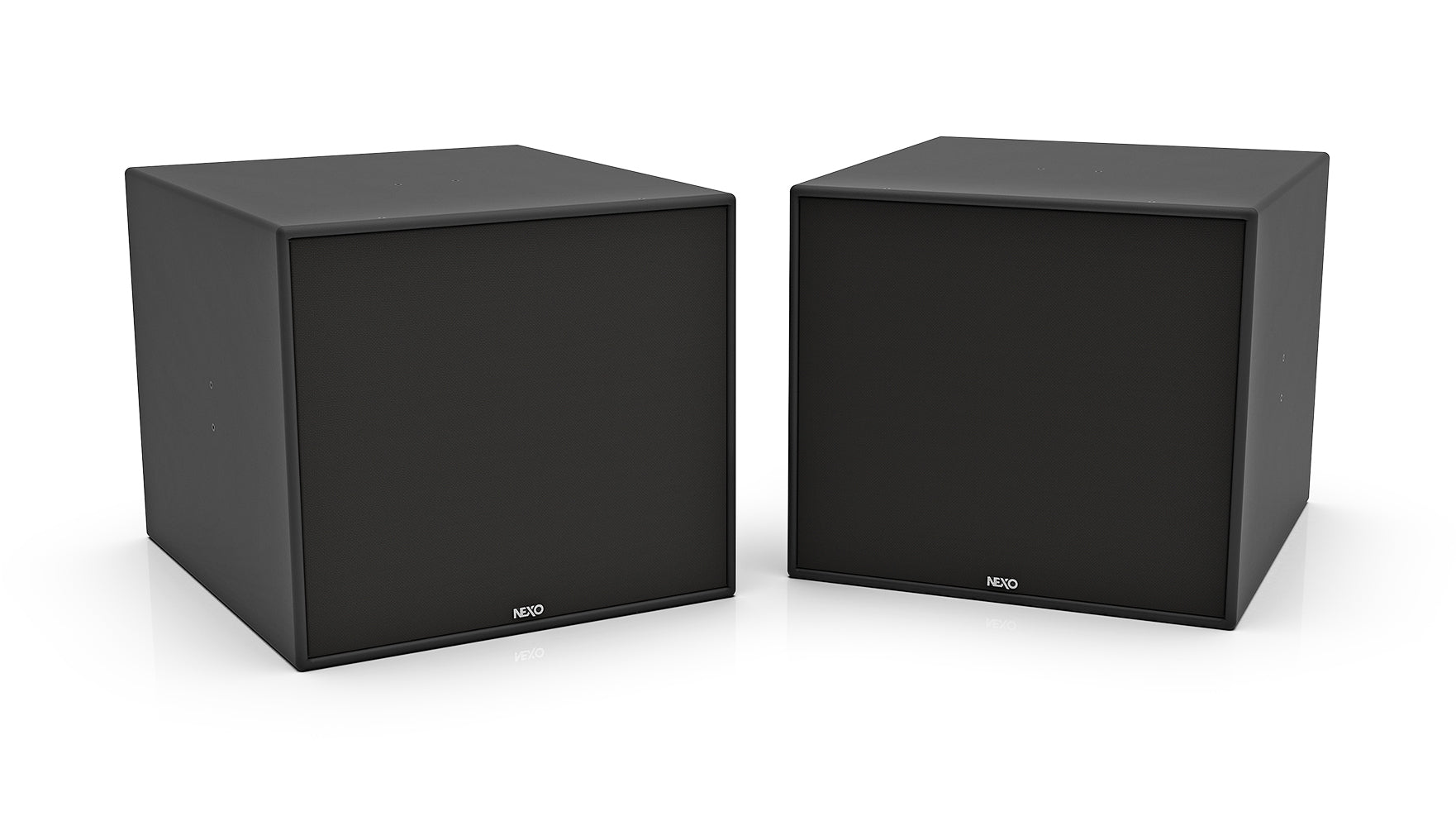

Nexo eLS18 Passive Subwoofer

Nexo eLS18 Passive Subwoofer

SoundPro Item: 138241 | Part Number: ELS18

$2,089.99
$2,611.00 $2,089.99
Your Price Sold out
MSRP: $2,611.00 | MAP: $2,089.99

Usually ships in 5-7 business days

Log in or register for YOUR best price

Measuring 531mm high x 600mm wide x 671mm deep and weighing 41Kg, the eLS18 sub uses a high excursion 18-inch driver in a cabinet constructed in a bass-reflex design. Constructed from 15mm Baltic birch plywood, the cabinet is protected by a strong polyurethane based coating and the Magnelis front grille is covered by a black UV and fire resistant cloth. Acheiving a peak SPL of 138dB with a frequency range extending down to 32Hz, the eLS18 features convenient rigging points and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.

View full details

Specifications

Frequency Response @-6 dB
32 Hz to 150 Hz
Sensitivity 1W@1m
106 dB SPL Nominal
Peak SPL@1m
138 dB
Crossover Frequency
32-85 Hz, 32-120 Hz, 32-150 Hz
Nominal Impedance
8 Ω
Recommended Power
1100 to 1750 Watts / 8 Ohms
LF Component
1 x 18” 8 Ohms long excursion
Connectors
2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles)
Compatible cables section
Cables from 1.5 mm2 to 3.3 mm2 (AWG 12 to 15) copper section
Compatible cables outside diameter
Cable with maximum outside diameter of 11 mm
Rigging points
4 x pairs of M10 rigging points (two on each side)
Material
15mm baltic birch plywood body and Magnelis grill
Finish
Black structural paint (RAL9005 or Custom RAL upon request)
Front Finish
UV & Fire resistant acoustic fabric
Height x Width x Depth
531mm x 600mm x 671mm (20.9” x 23.6” x 26.4”)
Weight: Net
41 kg (91 lbs)
Operating temperature range
0°C - 40 °C (32° F - 104° F)
Storage temperature range
-20 °C - 60 °C (-4 ° F - 140° F)
IP Rating
IP55
System Operation
Recommended powering solution
NXAMP4x2mk2 Powered TDcontroller: 1 x eLS18 per channel
Optional powering solution
DTD + DTDAMP4x0.7: 1 x eLS18 per bridged channels
DTD + DTDAMP4x1.3: 1 x eLS18 per bridged channels
NXAMP4x1mk2 Powered TDcontroller: up to 2 x eLS18 per bridged channels
NXAMP4x4mk2 Powered TDcontroller: up to 4 x eLS18 per channel
