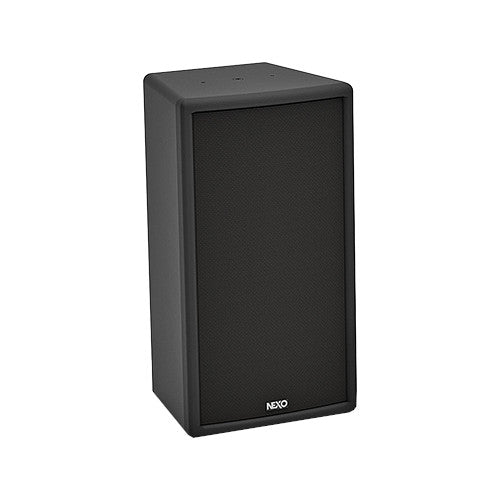

• NEXO EPS6 6-Inch Passive Installation Speaker

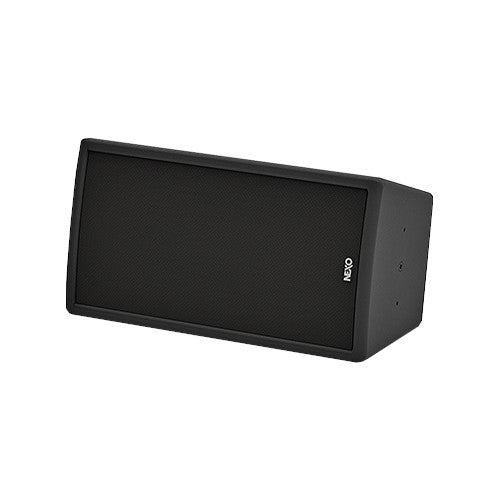

  • NEXO EPS6 6-Inch Passive Installation Speaker monitor
1 2

NEXO EPS6 6-Inch Passive Installation Speaker | Color: Black

NEXO EPS6 6-Inch Passive Installation Speaker | Color: Black

SoundPro Item: 132209 | Part Number: EPS6

$999.99
$1,247.00 $999.99
Your Price Sold out
MSRP: $1,247.00 | MAP: $999.99

Usually ships in 5-7 business days

  • Available in black, white, or customizable finish (black pictured only)
  • High power (125 dB peak) point source loudspeaker for fixed installation
  • Lightweight (7.1kg / 15lbs) design
  • Robust 15 mm Birch plywood enclosure
  • NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
  • IP55 protection level
  • Comprehensive range of accessories for deploying in a wide variety of fixed installation applications
  • Black finish with custom RAL colors available
Log in or register for YOUR best price

Measuring 365mm high x 198mm wide x 181mm deep and weighing 7.1Kg, the ePS6 combines a high excursion 6-inch LF driver with a 1.4-inch voice coil HF driver in a trapezoidal cabinet constructed in a closed acoustic design from 15mm baltic birch plywood. Achieving a peak SPL of 125dB with a frequency range of 90Hz to 20kHz, the ePS6 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.

View full details
  • Frequency Response @-6 dB90 Hz to 20 kHz
  • Sensitivity 1W@1m98 dB SPL Nominal
  • Peak SPL@1m125 dB
  • Vertical Dispersion+25°/-30°
  • Horizontal Dispersion50° to 100° Asymmetrical
  • Crossover Frequency90 Hz, 120 Hz
  • Nominal Impedance8Ω
  • Recommended Power310 to 490 Watts / 8 Ohms
  • Number of ways2 ways passive
  • LF Component6" 8 Ohms long excursion driver
  • HF Component1.4" diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion (“PS”) horn
  • Connectors2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles)
  • Compatible cables sectionCables from 1.5 mm2 to 3.3 mm2 (AWG 12 to 15) copper section
  • Compatible cables outside diameterCable with maximum outside diameter of 11 mm
  • Rigging points3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot)
  • Material15 mm thick birch plywood body and galvanized grille
  • FinishBlack structural paint (RAL9005 or Custom RAL upon request)
  • Front FinishUV & Fire-resistant acoustic fabric
  • Height x Width x Depth365x198x181mm (14.4x7.8x7.1")
  • Net Weight7.1 kg (15.7 lbs)
  • Operating temperature range0°C - 40°C (32°F - 104°F)
  • Storage temperature range-20°C - 60°C (-4°F - 140°F)
  • IP RatingIP55
  • System Operation
    • Recommended powering solution:NXAMP4x1mk2 Powered TDcontroller: Up to 4 x ePS6 per channel
    • Optional powering solutions
      • DTDcontroller + DTDAMP4x0.7: Up to 2 x ePS6 per channel
      • DTDcontroller + DTDAMP4x1.3: Up to 2 x ePS6 per channel
      • NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS6 per channel
      • NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS6 per channel"
